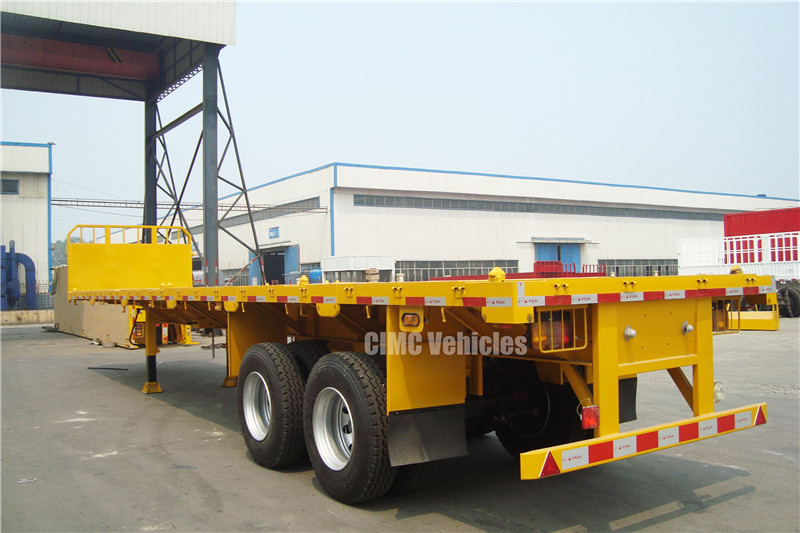

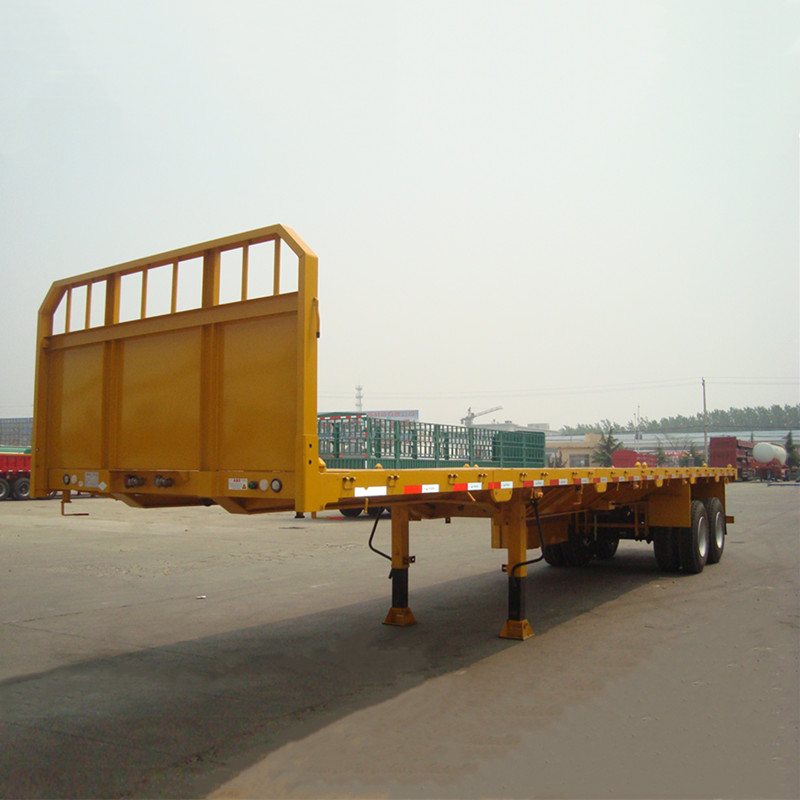

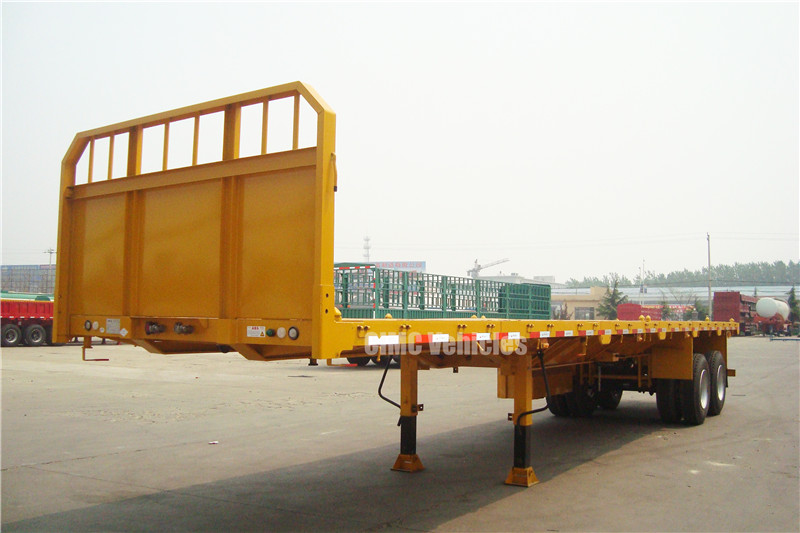

Double Axle Flatbed Semi Trailer

Product Description:

CIMC flatbed trailer is another commonly used type of equipment in the transportation industry. CIMC 40 Foot Flatbed trailers are used to deliver products like pipe, steel, lumber, heavy equipment , and any other item that would be difficult to load into the back of a trailer.

CIMC production the double axle flatbed trailers accessories are used famous brands, such as: the axles adopts Fuwa / Bpw or othe Chinese famous brand;Landing gear adopts JOST brand and so on.Due to we used the high strengh steel to production the flatbed semi trailer ,the flatbed trailer CIMC produce is deeply loved by foreign customers.

We can provide difference configurations of CIMC double axle flatbed trailer to meet your transportation requirement.

Double Axle Flatbed Semi Trailer for Sale in Philippines - CIMC Trailer

Specification:

Overall L*W*H: 12,500×2,500×1,530 mm

Payload: 60 tons

Axles: 13 tons / 14 tons / 15 tons /16tons / 20 tons ( Fuwa/BPW /CIMC or other Chinese famous brand )

Tire: 12.00R20 / 11.00R20 / 12R22.5 / 385/65R22.5, optional

Landing gear: JOST

Kingpin: 50(2inch)#or 90(3.5inch)# bolted type

Suspension: Mechanical / airbag / bogie suspension

Brake system: WABCO brake system with dual brake chambers and emergency brake valve

Container lock: 12 pcs

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Accessories: Tool box , spare tire carrier

Advantages:

1>We adopt premium steel material, advanced technology and strict production to our flatbed trailer.

2>The floor is covered with corrugated sheet metal

3>Good brake effects. Axles are equipped with WABCO emergency brake valve also dual-brake chambers also widen

brake pads.

4>The flatbed container semi trailer painted by advanced painting system, the painting effect can meet Swedish Sa2.5 class marine anti-corrosion standards.
