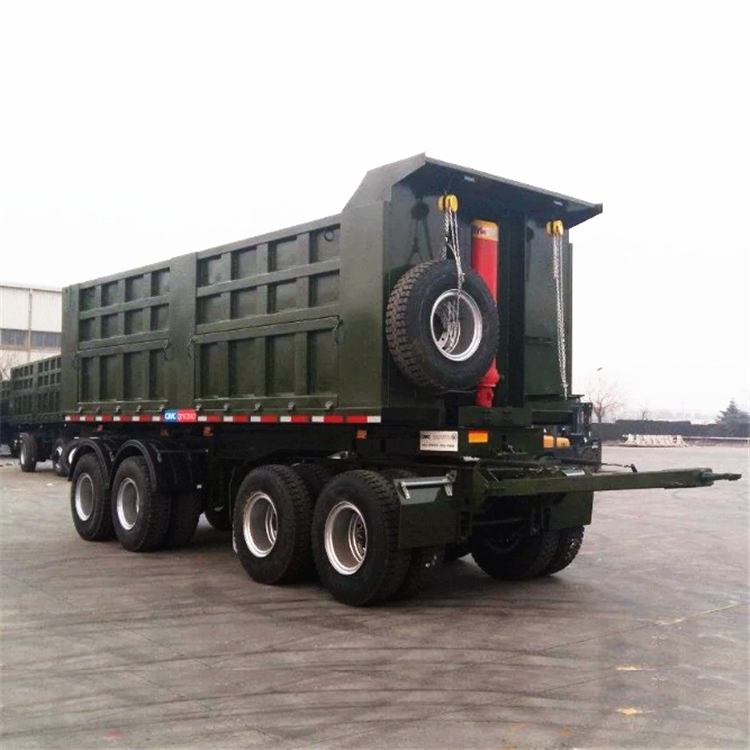

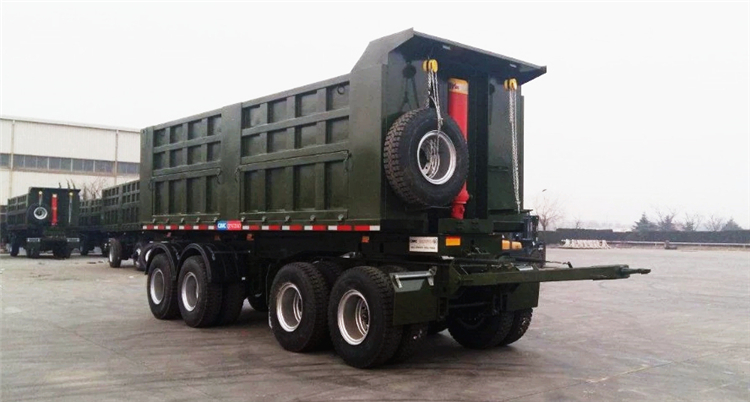

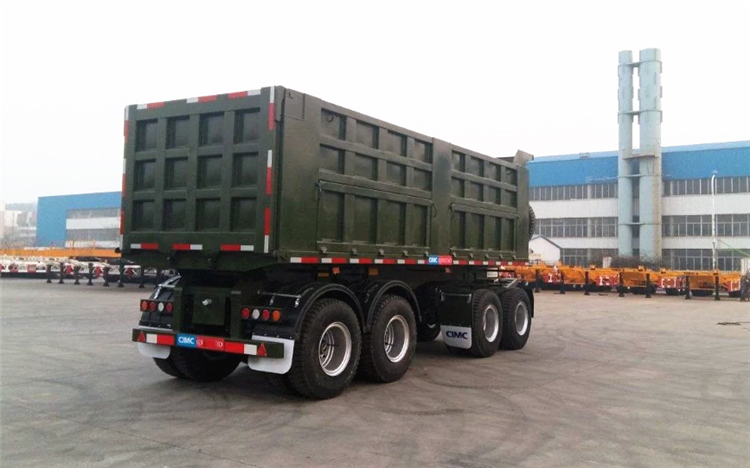

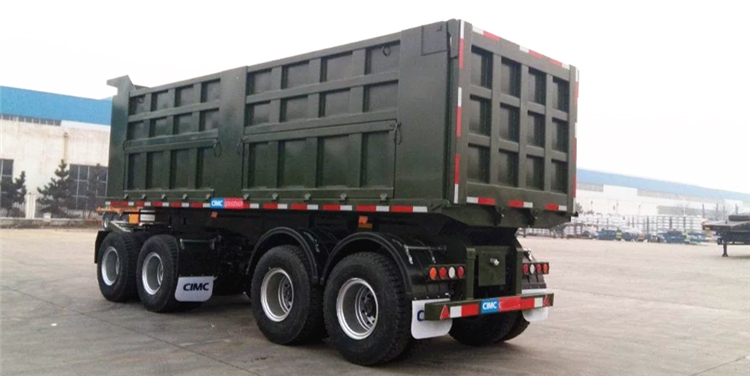

Drawbar Dumper Trailer for Sale

Product Description：

CIMC Drawbar dumper trailer is specifically intended for use in the multimodal transport system, where it is employed to carry various bulk cargos. High stability and mechanical strength allow the trailer to withstand a long time of use. During transport interchange, the tractor unit can be exchanged quickly,thus saving interchange time and cost.

CIMC dump trailer can be customized according to customer special needs.

Different options: 2 axles, 3 axles, 4 axles, 20/40/45/53ft, 30T, 40T, 60T, airbag suspension, spring steel suspension; U-shape tip trailer, flatbed container tipper trailer, skeleton dumper trailer, side dump truck trailers.

4 axle drawbar trucks and trailers for sale

CIMC 40T truck drawbar tipper semi trailers

 Full Dumper Trailer

Specification：

Dimension(mm)：7000x2500x3500

Loading Capacity(ton)：≤45T

Axles：13T/per,(FUWA, BPW, CIMC, or Other Brand)

Tire：12.00R22.5 or 315/80R22.5

Tipping system : 196 hydraulic cylinder

Draw Bar：4×4 or 4x6mm square tube ( length: 1.4m)

Suspension：Mechanical suspension, Air suspension

King pin：50#, 90#

Landing gear：JOST

Brake system: WABCO

ABS: Optional

Electrical system: 24V, LED lights

Accessories: One standard tool box

Shipping Terms: By bulk cargo, RORO
