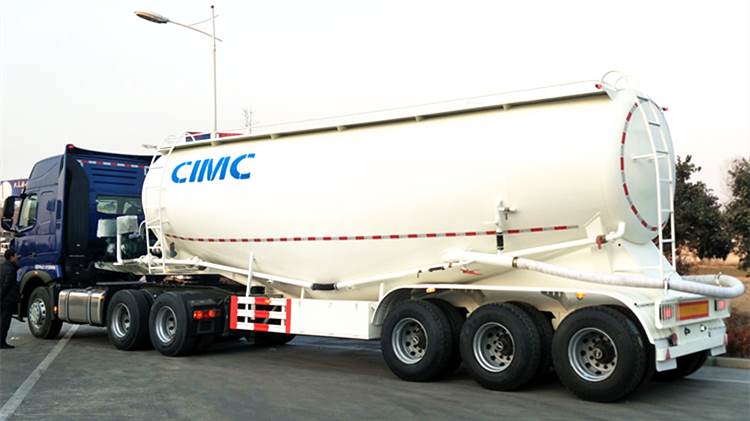

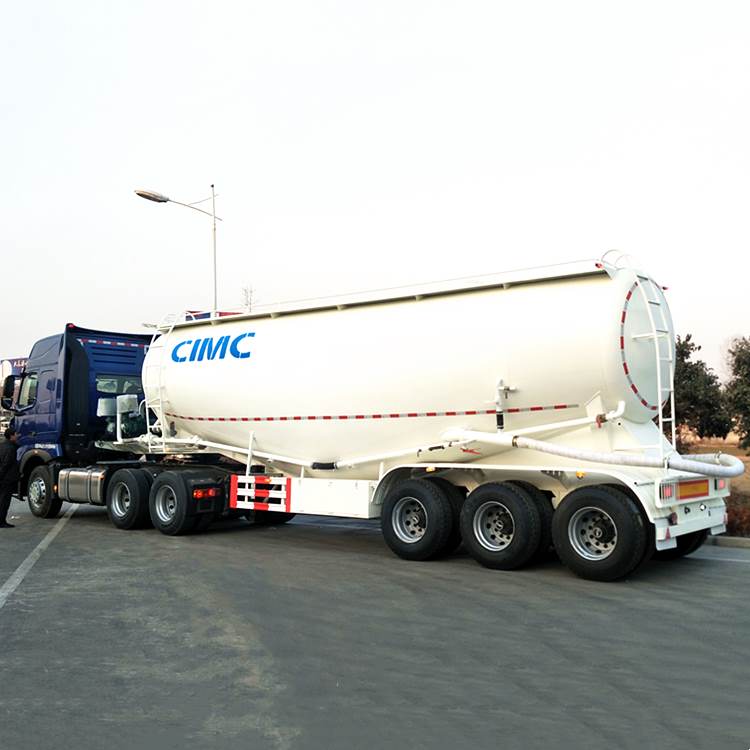

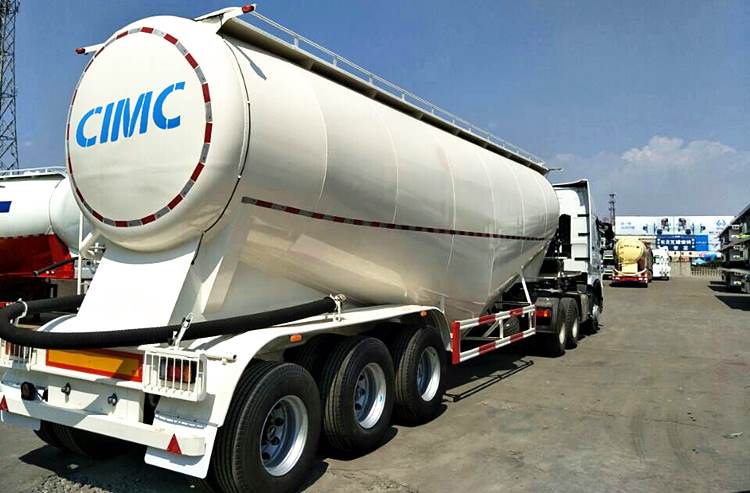

Tri Axle Dry Bulk Tanker Trailer

CIMC Tri Axle Dry Bulk Tanker Trailer Product Description:

The dry bulk tanker trailer required in this area requires the trailer to be designed as short as possible to facilitate reduce the turning radius of the trailer, and at the same time can meet the requirements of the main trailer to match the 12m ground scale. This type of vehicle is generally used for intra-city transportation or short-distance transportation, and is not subject to domestic restrictions on overload control.

Naturally, the larger the volume design of the dry bulk tanker trailer, the better. At present, in order to meet the above requirements, many domestic powder tanker manufacturers usually choose to design the trailer as an ultra-wide model, thereby increasing the effective volume of the tank and reducing the length of the trailer.

Specification:

Brand: CIMC dry bulk tanker trailer

Total Volume (m³): 25 cbm ~60 cbm

Tanker Body Material: 5mm or 6mm/ high strength wear-resistance steel

Diesel Engine: WEICHAI 4105 Brand

Compressor: BOHAI, FUDA 12m3/14 m3or other brands

Manhole Cover: Carbon steel or Aluminum 500mm(Diameter)

Discharging Valve: Diameter is 3 or 4 inch

Main Beams: Welded design, High Strength Steel

Axle: 3 axles, 14 ton

Suspension: Mechanical suspension
