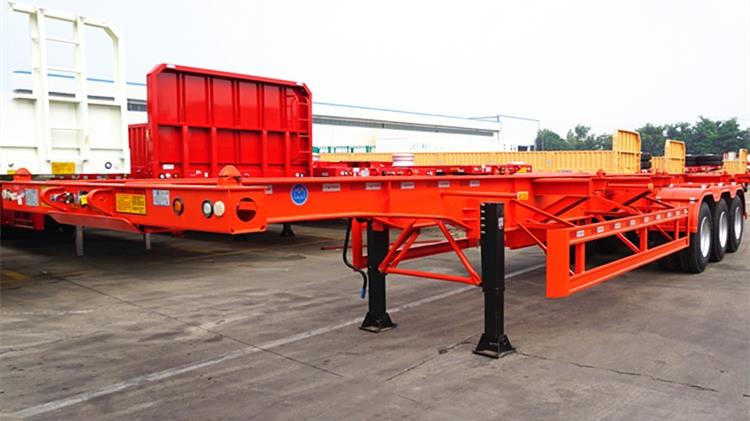

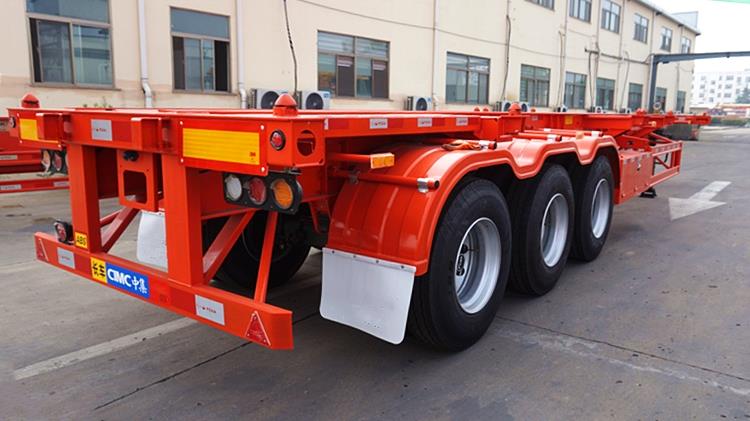

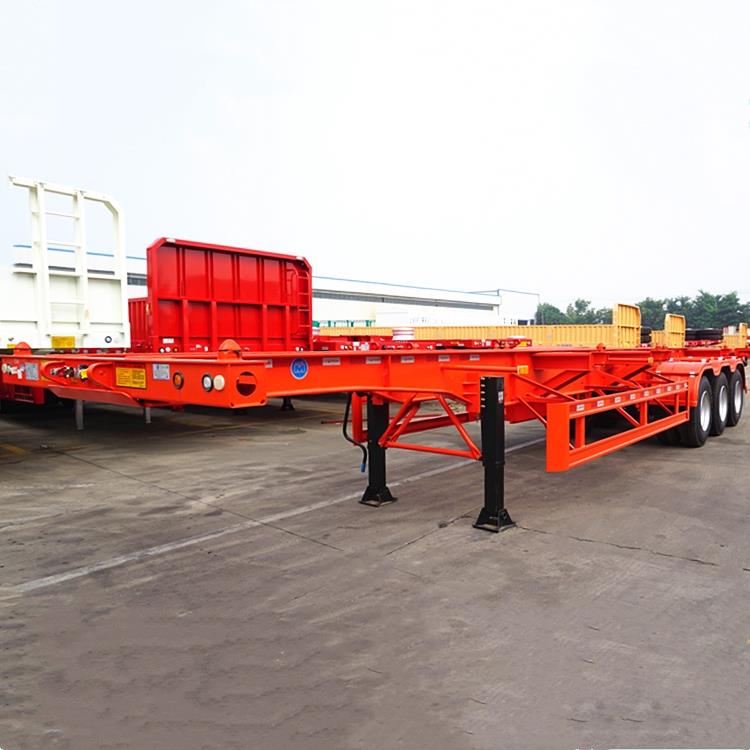

Tri Axle Skeletal Trailer

Tri Axle Skeletal Trailer Product Description:

A skeletal trailer is a minimal, lightweight metal trailer most commonly designed for transporting containers, although also capable of being used as a hook loader for loading a skip and a number of other specialist applications with the right attachments and supports.

As standard shipping containers come in a number of sizes, skeletal trailers can either be specific to one particular size, extendable to accommodate multiple sizes or have multiple twist lock locations to give flexibility with sizes.

Specification:

Overall L*W*H: 12400*2500*1550mm

Load weight: 40 tons ~70 tons

Axles: 3x13 tons / 14 tons / 15 tons /16tons / 20 tons

Tire: 12R22.5

Landing gear: JOST

Kingpin: 50(2inch)#or 90(3.5inch)# bolted type

Suspension: Airbag / Mechanical / bogie suspenion

Brake system: Wabco

Electric system: 24V / 12V + LED lights

Accessory: spare tire carrie + tool box

Remark: we can supply different specification for different road condition

Advantages:

1>Light dead weight, strong frame structure;

2>Container lock with secondary lock mechanism;

3>High tensile steel and bolted type king pin plate;

4>Double brake chambers makes a performance braking effects.
