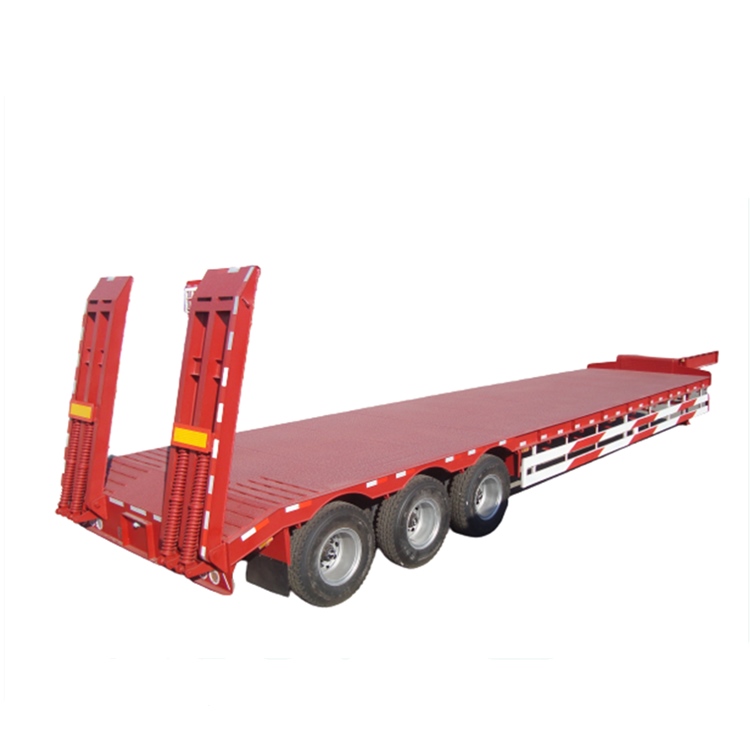

Tri Axle 50 Ton Semi Low Loader Trailer for Sale

Product Description:

CIMC tri axle low loader trailer for sales are widely used to carry construction machinery, excavators, road rollers and cranes, mechanical parts or prefabricated profiles.

50 ton low loader trailer with low loading height and high payload. It can be widely used in heavy machinery, heavy bulldozers, tractors and many other fields.

The semi low loader trailer produced by CIMC can carry 40-80 tons. CIMC semi low loader trailer can be customized according to customer needs.

Tri axle low loader trailer for sales are safer for heavy loads due to the low center of gravity. And it can also transport general cargo, which is more flexible.

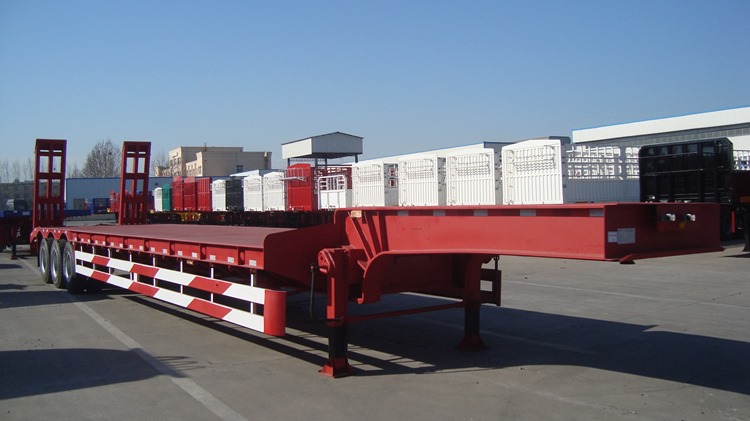

3 Axle low Loader trailer

Specification:

Dimension(mm): 13000*3000*3400mm

Loading capacity(T): 40-80T

Axle: 3 axle,13T/16T, FUWA / BPW / CIMC/Other Brand

Tire: 8.25R20/10.00R20/11.00R20/12.00R20

Suspension: Mechanical suspension or air suspension

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand D200T or Chinese brand 28T(Double speed)

Material: Q345B steel.

Ladder: Manually operated or Hydraulic or Fold type;Gooseneck: Optional

Brake system: WABCO;ABS: Optional

Light:LED light

Electrical System: 24-volt lighting system
