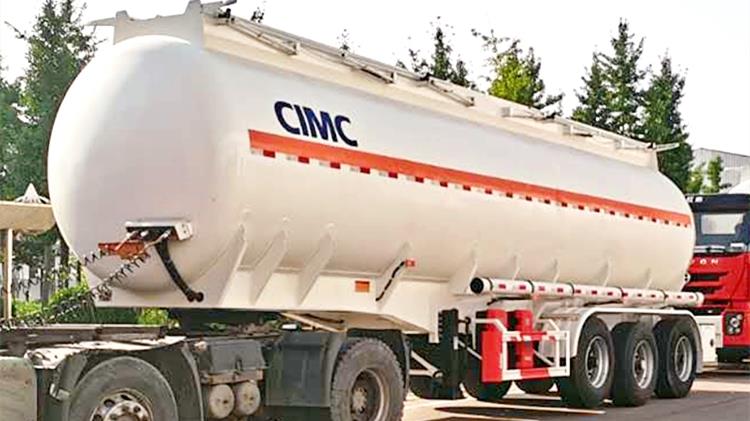

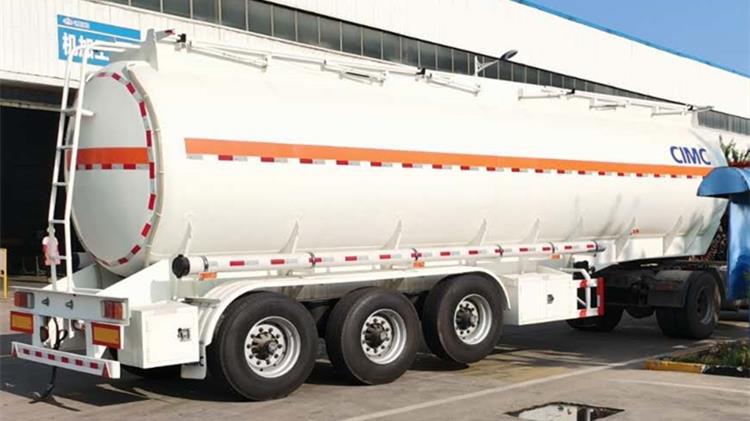

Tri Axle Stainless Steel Fuel Tanker Trailers

Product Description:

The tank body is made of a professional canning machine and can be molded at one time. The maximum pair guarantees the degree of solidity of the tank body. CIMC tri axle petrol tanker for sale use high-quality stainless steel material. The type of material used on a fuel tank trailer determines its price and loading capacity.

Stainless steel has high strength and is not damaged easily, so tri axle petrol tanker for sale is resistant to rust, can use to transport edibles.

Tri Axle Stainless Steel Fuel Tanker Trailers for Sale In Mauritius

Tri Axle Stainless Steel Fuel Tanker Trailers

Specification of Tri Axle Petrol Tanker for Sale CIMC Tanker:

Dimension: 12100mm*2500mm*3900mm(the exact size depends on the final design)

Volume: 46000liters

Application:  transport Fuel, Oil, Diesel

Tank body:

Material: Stainless steel

Tank body and separate compartment plate:  6mm

Compartments: 1 to 7 compartments, based on customer needs

Manhole cover: Aluminum alloy API manhole cover 500mm (diameter)

Discharge valve: Diameter is 3 or 4 inch

Bottom valve: Aluminum  API Pneumatic Bottom Valve

Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment

Chassis:

Axles: 3 units, FUWA/BPW/CIMC/other

Landing Gear: JOST brand

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Suspension: Mechanical suspension or air suspension

Brake System: WABCO

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional

Advantage

1. Stainless steel has high strength and is not damaged easily.

2. The price of stainless steel is more competitive than aluminum alloy, so steel is popular in developing countries.

3. Stainless steel is less prone to stress crack, which is common with aluminum alloy.

4. The stainless steel is resistant to rust, so it can used to transport edibles.

How does a fuel tanker work?

1.Fuel tankers use highly technical equipment to ensure the process of loading, transporting and offloading the fuel product is as safe and wasteless as possible. Many fuel tankers are fitted with special devices that read the quantity of fuel being loaded, control pressure, and even regulate temperature!

2.A specific type of hose is used during the process of loading and offloading the fuel. These hoses are designed to fit the opening on the tankers and usually have gaskets and seals in place to reduce and limit the amount of potential spilling

3.During the loading process, the vapour of the fuel is carefully monitored as these gases are highly flammable. Once loaded, the trucks are secured for travel and can head off to their destination, which is fitted with the same type of hose to properly offload the fuel.
