flat deck trailers for sale are commonly used to transport 20ft and 40ft shipping containers, but their versatility allows for broader logistics applications beyond standard container hauling.
flat deck trailers for sale are commonly used to transport 20ft and 40ft shipping containers, but their versatility allows for broader logistics applications beyond standard container hauling.
For the paint, CIMC adopts the powder spray and baking painting for all of flat deck trailers for sale which has high adhesion, more beautiful color, With the same technology as a car, higher brightness, stronger corrosion resistance.

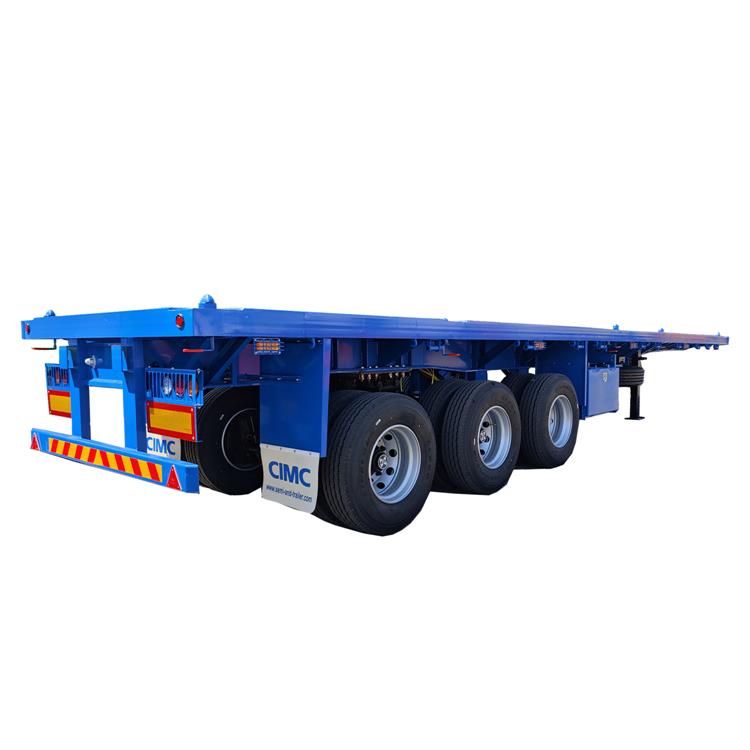

Triple Axle Flat Deck Trailers for Sale In Djibouti
Triple Axle Flat Deck Trailers for Sale In Djibouti
Triple Axle Flat Deck Trailers for Sale In Djibouti
Dimension(mm): 12500x2500x1460mm
Loading capacity(ton): ≤60T
Axles: 3 axles,
Tire: 12 units, 12R22.5
Suspension: Bogies suspension
Landing gear: JOST
Brake system: WABCO

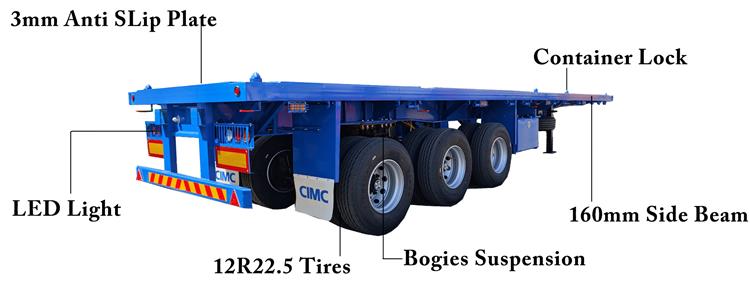

The thickness of the flat deck trailers for sale side beam we made is 160mm channel steel, 100mm channel steel for through beam, and all of the through beam are supported by the inclined support frame, and the distance of these frame are not more than 500mm, which can ensure the flat deck trailers for sale not easy to deform
The side beam is not cut at the side beam's turn lock to ensure the side beam's strength. In the production process, the whole process of fixed point support is used to prevent the deformation and droop of the side beam.
Flat deck trailers for sale floor plate is the 3 mm and it’s diamond plate, It is very strong and durable, and it’s not easy to deform even after long time using. CIMC have 6 beams under the floor plate, Heavy-duty models can be upgraded to high-strength bending parts. effectively ensure the flatness of the floor plate, make the floor plate not easy to deform even after long time using
A separate focus on road conditions in Africa, addressing dirt and poor road conditions. For the axle, flat deck trailers for sale standard is 13 tons axle with 16 tons brake pads, with a better bearing capacity and good braking effect. The rear three axle parts are all reinforced with trapezoidal steel plate, that is, the style configuration used by the low bed. In order to enhance the strength of key parts, enhance the load capacity, enhance the overall strength of the vehicle, prevent collapse deformation.
