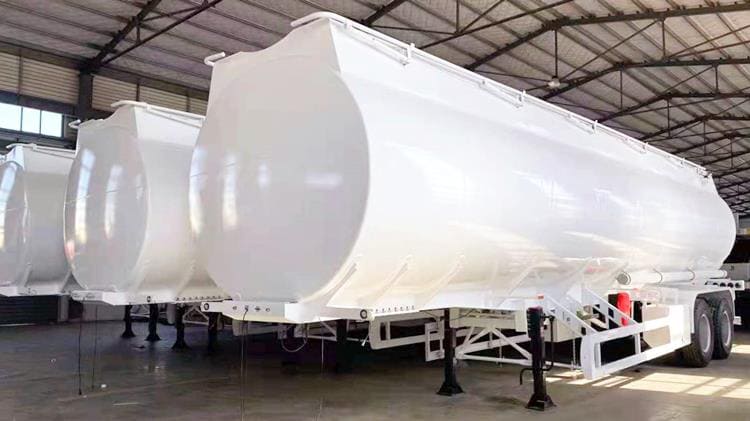

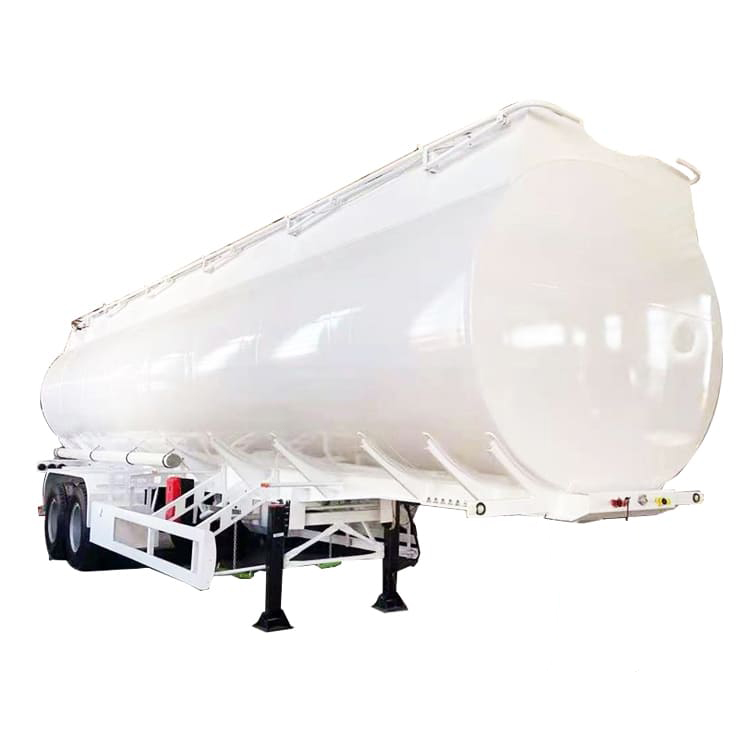

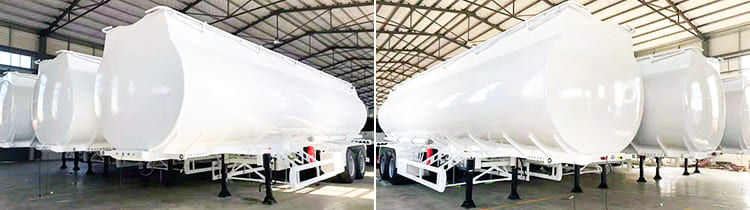

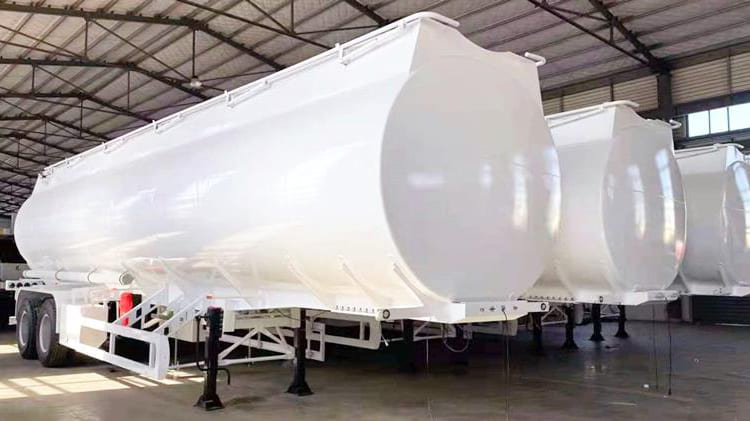

2 Axle Stainless Steel Fuel Tanker Trailer

Product Description:

2 Axle Stainless Steel Fuel Tanker Trailer uses good mechanical properties, advanced welding technology to make sure its high strength and lightweight. Aluminum alloy explosion-proof manhole covers, non-slip paint, aluminum alloy folding guardrail integral side protective and control toolbox.

CIMC Stainless Steel Tanker Trailer featured with minimal seams maximum strength. Its tank body is made of the sheet material.

Specification:

Dimension: 12100mm*2500mm*3900mm(the exact size depends on the final design)

Volume: 40000liters

Application:  transport Fuel, Oil, Diesel

Tank body:

Material: Stainless steel

Tank body and separate compartment plate:  6mm

Compartments: 1 to 7 compartments, based on customer needs

Manhole cover: Aluminum alloy API manhole cover 500mm (diameter)

Discharge valve: Diameter is 3 or 4 inch

Bottom valve: Aluminum  API Pneumatic Bottom Valve

Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment

Chassis:

Axles: 2 units, FUWA/BPW/CIMC/other

Landing Gear: JOST brand

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Suspension: Mechanical suspension or air suspension

Brake System: WABCO

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional

Advantage:

1. The tank body is automatically welded by an advanced large-scale special welding machine.

2. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.

3. The  tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.
