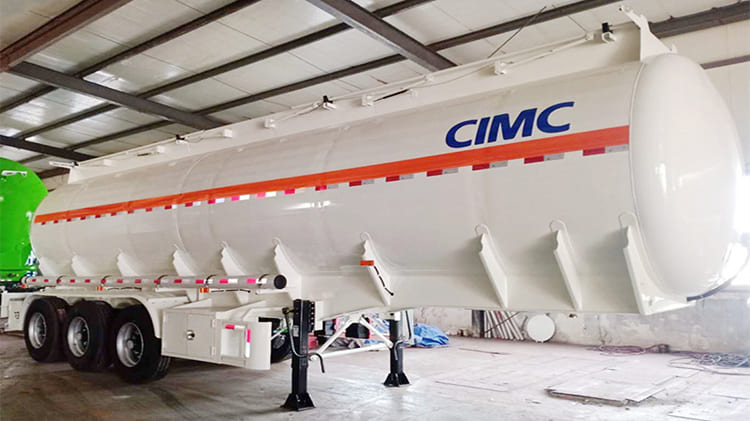

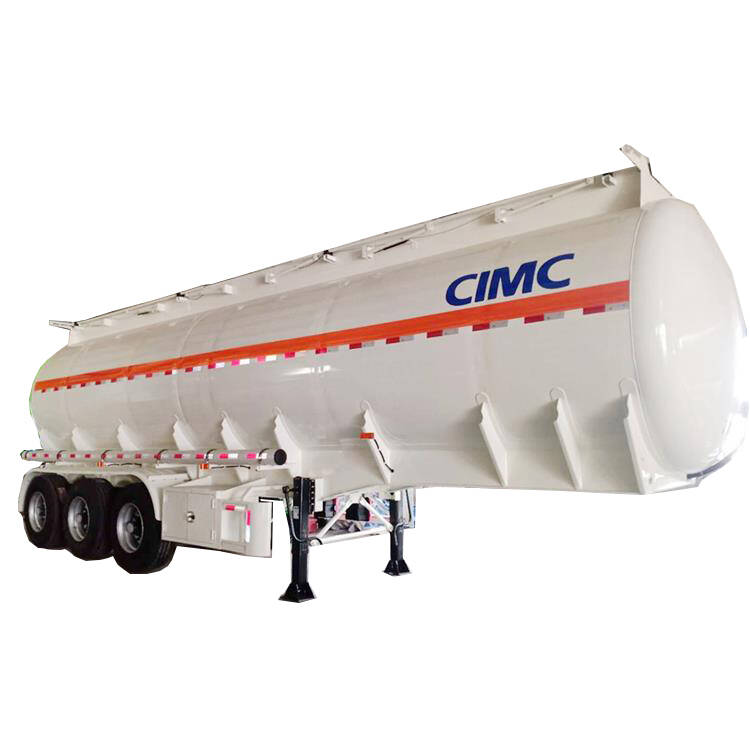

CIMC 3 Axle 40000 Liters Fuel Tank Semi Trailer can reach 90000 liters and 4 axle. The CIMC 3 Axle 40000 Liters Fuel Tank Semi Trailer can provide 1-7 cabins of diesel fuel trailer for sale, which can be produced according to customer requirements.
3 Axle 40000 Liters Fuel Tank Semi Trailer can be independently divided into warehouses and can be divided into different oil products. The tank is equipped with multiple anti-wave baffles, which makes the tank have the characteristics of high strength, stable center of gravity, safe and stable vehicle transportation.
Dimension: 11000mm*2500mm*3700mm(the exact size depends on the final design)
Volume: 40000liters
Application: transport Fuel, Oil, Diesel
Tank body:
Material: Carbon steel
Tank body and separate compartment plate: 6mm
Compartments: 1 to 7 compartments, based on customer needs
Manhole cover: Carton steel or Aluminum alloy API manhole cover 500mm (diameter)
Discharge valve: Diameter is 3 or 4 inch
Bottom valve: Aluminum API Pneumatic Bottom Valve
Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment
Chassis:
Axles: 3 units, FUWA/BPW/CIMC/other
Landing Gear: JOST brand
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Suspension: Mechanical suspension or air suspension
Brake System: WABCO
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
