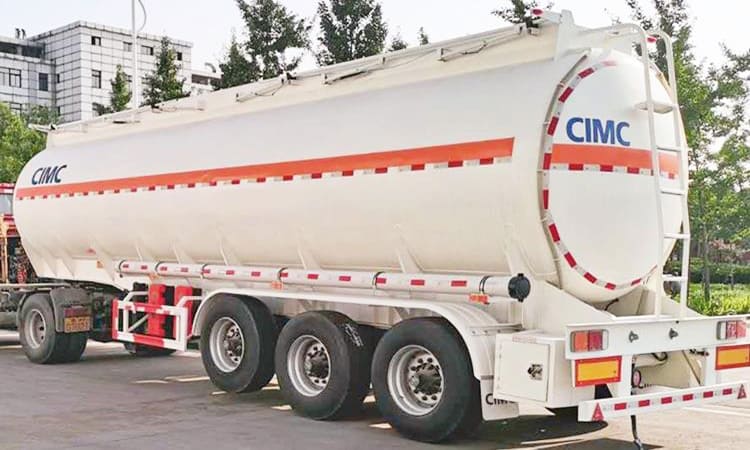

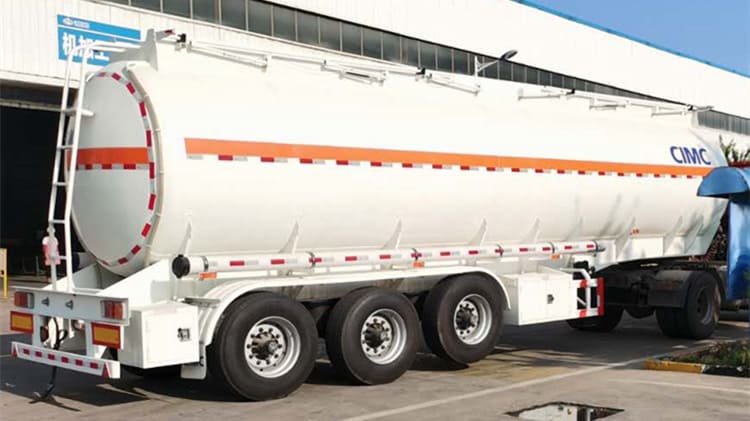

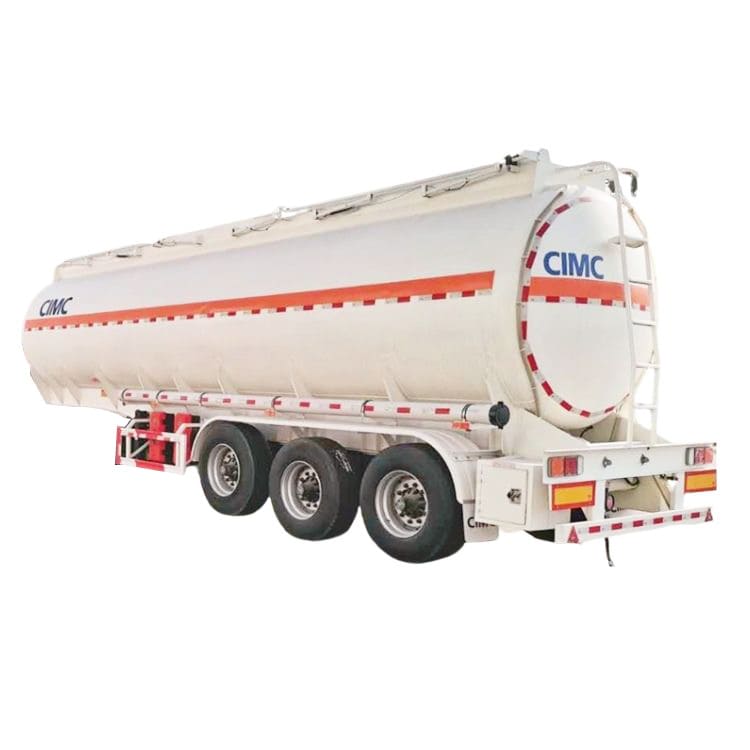

CIMC 38000L Stainless Steel Tank Trailer adopts advanced welding technology, and the high-pressure gas leak test after the tank body is formed, which makes the tank body have the characteristics of high strength,safety and stable transportation.
CIMC 38000L Stainless Steel Tank Trailer has built-in breathing and emergency energy discharge, and can install oil and gas recovery valve, oil measuring hole, anti-overflow probe rod, etc. on the manhole cover. The built-in breathing valve keeps the internal pressure of the oil tank stable during oil transportation and balances with the external pressure. Its dumping and overflow prevention design keeps the oil tanker sealed in the event of an accident, and the emergency exhaust device keeps the pressure inside the tank. In the case of a sharp rise, it will automatically open to release the pressure in the tank, thereby preventing the occurrence of accidents and greatly improving the safety of oil transportation.
Dimension: 11000mm*2500mm*3700mm(the exact size depends on the final design)
Volume: 38000liters
Application: transport Fuel, Oil, Diesel
Tank body:
Material: Stainless steel
Tank body and separate compartment plate: 6mm
Compartments: 1 to 7 compartments, based on customer needs
Manhole cover: Carbon steel or Aluminum alloy API manhole cover 500mm (diameter)
Discharge valve: Diameter is 3 or 4 inch
Bottom valve: Aluminum API Pneumatic Bottom Valve
Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment
Chassis:
Axles: 3 units, FUWA/BPW/CIMC/other
Landing Gear: JOST brand
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Suspension: Mechanical suspension
Brake System: WABCO
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
