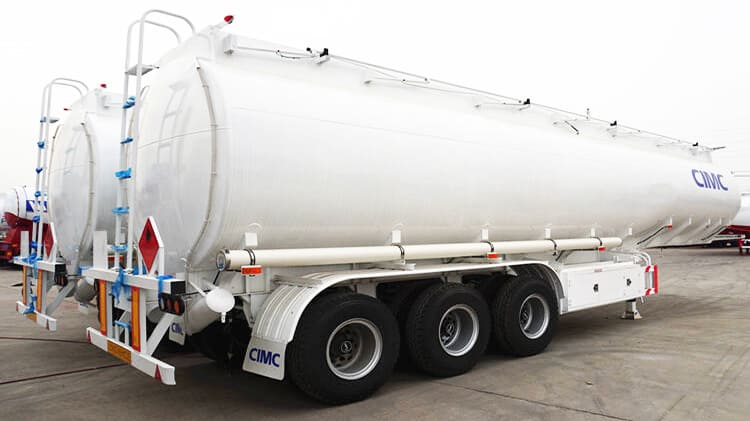

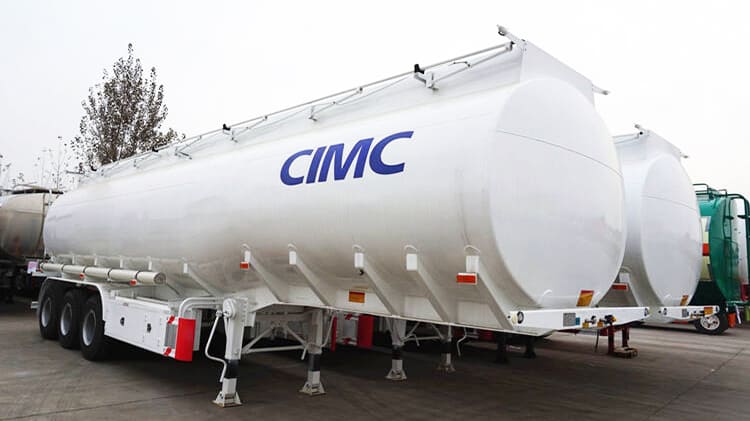

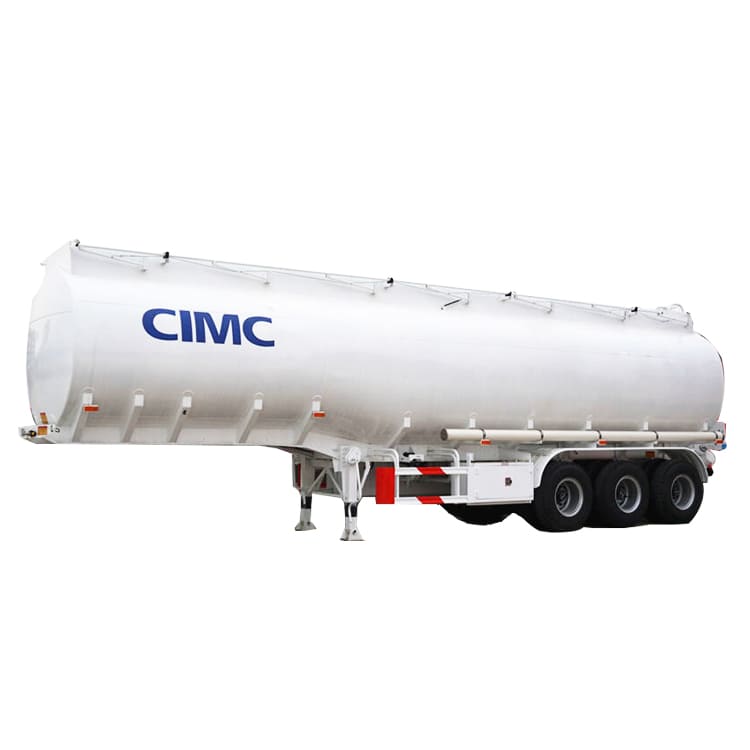

CIMC mainly provides different types of diesel tank trailers for the transport of fuel, diesel, water and any other liquid materials, one of which is the type of diesel trailer .
The safety valve of 3 Axle 45000 Liters Oil Tanker Trailer is specially designed for oil tanks, chemical tanks and other tank products. Different opening pressures can be set according to user needs to meet different needs. The main body is made of stainless steel as a whole, with corrosion resistance and high sealing, suitable for various environments.
Dimension: 11000mm*2500mm*3700mm(the exact size depends on the final design)
Volume: 45000liters
Application: transport Fuel, Oil, Diesel
Tank body:
Material: Carbon steel
Tank body and separate compartment plate: 6mm
Compartments: 1 to 7 compartments, based on customer needs
Manhole cover: Carton steel or Aluminum alloy API manhole cover 500mm (diameter)
Discharge valve: Diameter is 3 or 4 inch
Bottom valve: Aluminum API Pneumatic Bottom Valve
Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment
Chassis:
Axles: 3 units, FUWA/BPW/CIMC/other
Landing Gear: JOST brand
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Suspension: Mechanical suspension or air suspension
Brake System: WABCO
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
