Max payload: 37T
Function: Transport 20ft 40ft Container
Landing gear: Heavy Duty Landing Gear
King pin: JOST 2.0 Inch (50mm)/3.5 Inch (90mm)

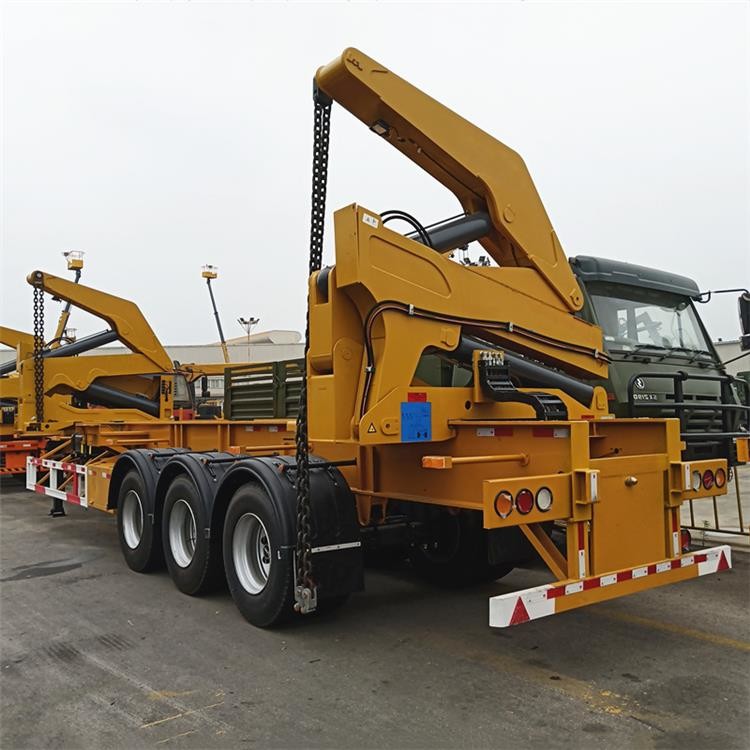

Container side loader is a type of specialized semi-trailer that is used to hoist and transport standard containers over long distances.
Also known as a side loader container , this trailer is basically used for container transfer.It comprises of lift modules or cranes that are installed to the trailer chassis. These lifting components can also be fitted onto a sub-frame usually mounted on a truck.
side loader trailer for sale
side loader chassis price
1. Timesaving and improve efficiency: Side loader can be productive all day, enabling loading, unloading and transporting containers by itself easily.
2. 40ft container side lifter trailer adpots wireless remote control technology, loading container just takes 10 mins.
3. Famous NBB Germany Remote Control, easy to operate
4. Famous WABCO braking valve, JOST landing gear for the main chassis container skeleton trailer
5. Flexible solutions: With the 37 tons sidelifter trailer, you get closer and can lift between trailers safely and with high precision.
The packaging and delivery are essential steps before container lifter were sent to the hand of our customers.We have professional staff to make package. All of them were trained constantly. Please notice that the semi trailer covers poncho to prevent from the damp condition.
| Overall dimension: | 14100mm*2500mm*4100mm |
| Loading capacity : | 50-60ton |
| Axles: | 3 axles |
| Tire: | 12 units,12R22.5 |
| Suspension: | Heavy duty mechanical spring suspension |
| King pin: | 90# |
| Langing gear: | JOST |
| Brake system : | WABCO |
| Electical system : | 24V , LED lights |
| Power source: | PTO and Japenese Kubota diesel engine |
| Tow Chain: | Igus (imported) |
| Max.working range: | 4000mm |
| Overall height: | 2500mm |
| Overall length: |
1020mm |
