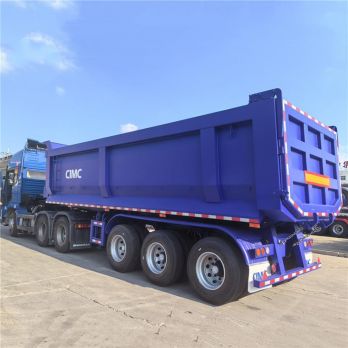

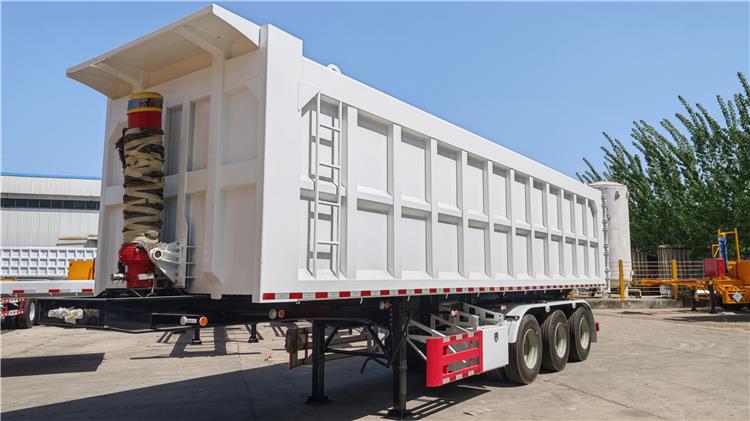

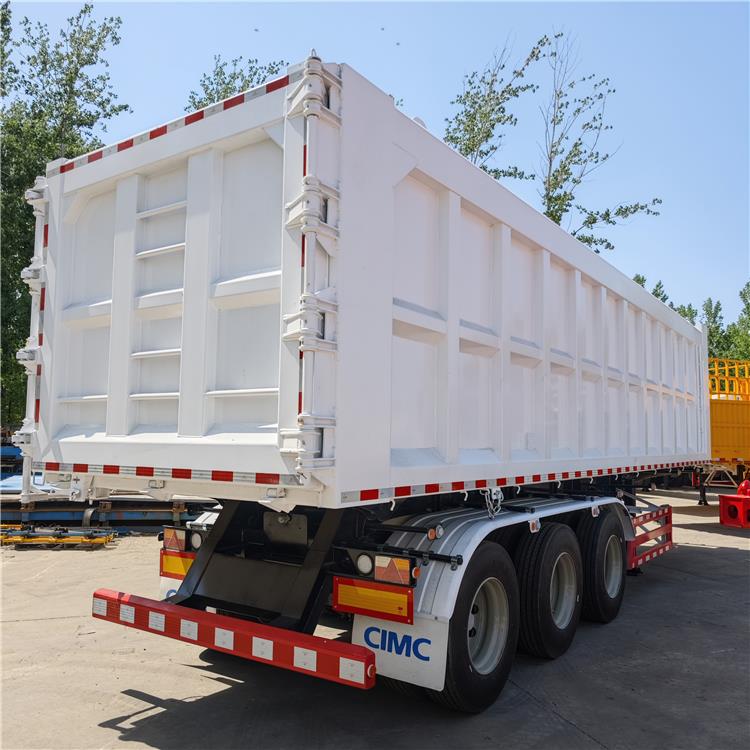

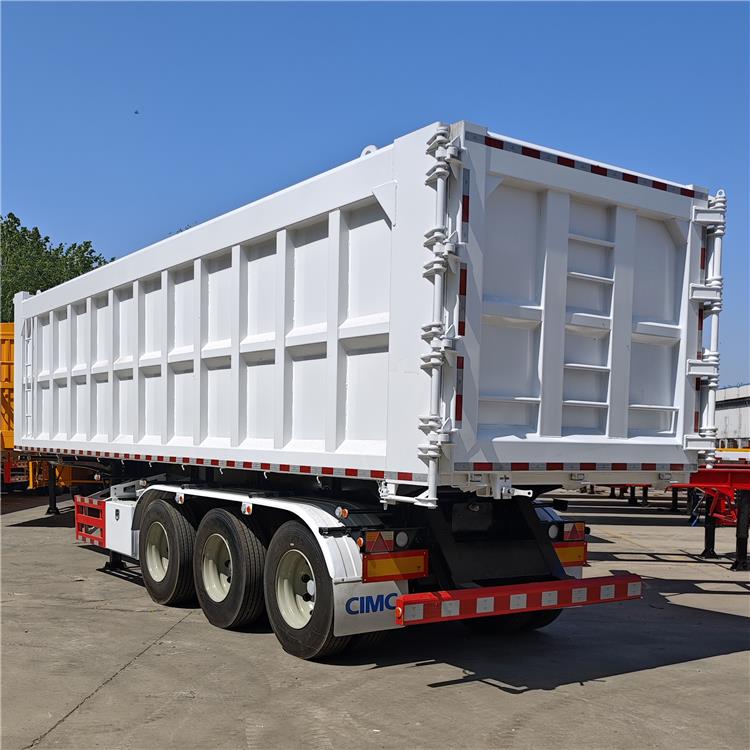

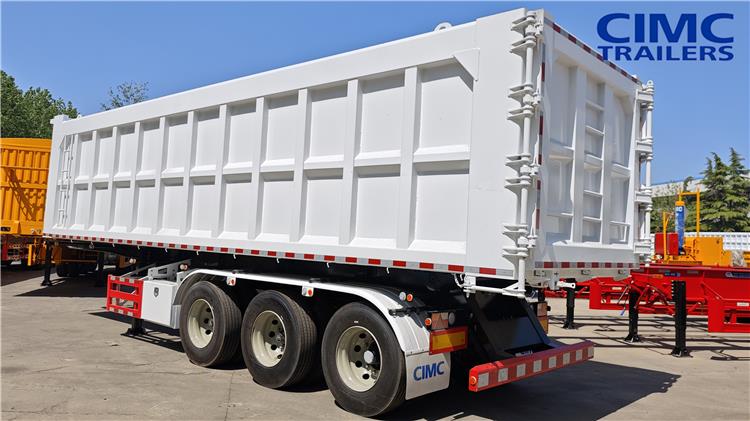

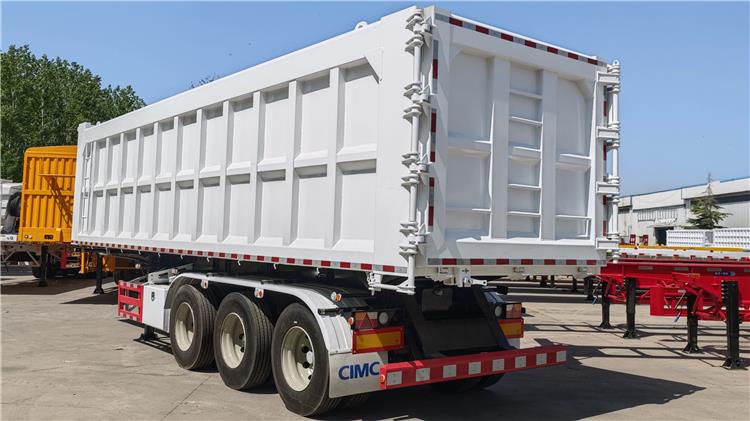

3 Axle 35CBM Semi Tipper Trailer
3 Axle 35CBM Semi Tipper Trailer

3 Axle 35CBM Semi Tipper Trailer

17500 USD

Semi tipper trailer for sale is made of heavy-duty steel for long-lasting performance.

SKU: ZJV9505115
GTIN: 6975766106829
MPN: ZJV9505115
Brand: CIMC

Video of 3 Axle 35CBM Semi Tipper Trailer

3 Axle 35CBM Semi Tipper Trailer for Sale In Kenya



Semi Tipper Trailer Price: 17500 USD

Semi tipper trailer for sale is versatile and widely used in various industries such as construction, agriculture, mining and waste management.

The hydraulic or manual dump device of semi tipper trailer for sale can quickly unload materials (such as sand, gravel, crushed stone) without manual operation. Semi tipper trailer for sale reduces the need for shoveling or manual unloading, and improves production efficiency.

3 Axle 35CBM Semi Tipper Trailer for Sale In Kenya

3 Axle 35CBM Semi Tipper Trailer for Sale In Kenya

3 Axle 35CBM Semi Tipper Trailer for Sale In Kenya

3 Axle 35CBM Semi Tipper Trailer for Sale In Kenya

3 Axle 35CBM Semi Tipper Trailer for Sale In Kenya

3 Axle 35CBM Semi Tipper Trailer for Sale In Kenya

3 Axle 35CBM Semi Tipper Trailer for Sale In Kenya

3 Axle 35CBM Semi Tipper Trailer for Sale In Kenya

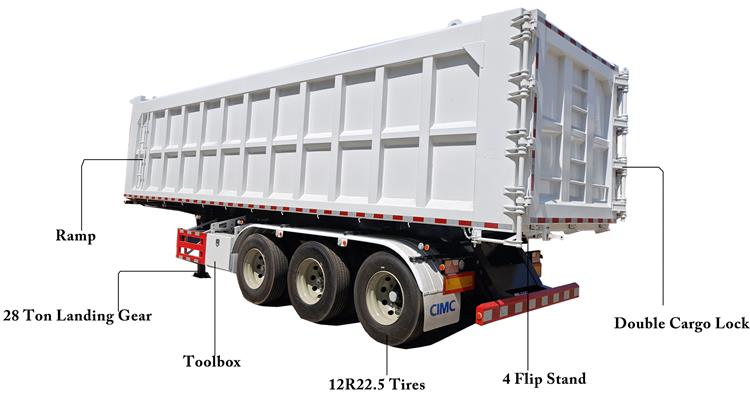

Specification of Tipper Trailer

Dimension: 8600mmx2500mm x3950mm ( inside dimension )

Total volume: 35cbm

Lifting System: Full set of HYVA lifting cylinder

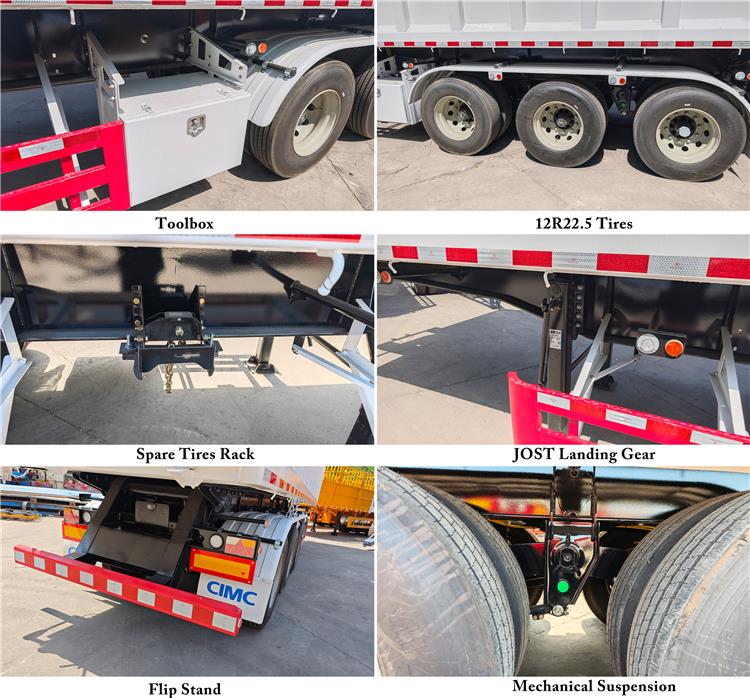

Axle: 13T/16T, FUWA / BPW

Tire: 12R22.5

Suspension: Mechanical suspension

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand



Advantage of Tipper Trailer

The main beam of semi tipper trailer for sale adopts T700 high-strength double-layer steel plate, which has stronger load-bearing capacity and is not easy to deform. The sub-beam of semi tipper trailer for sale adopts 4 steel plates and is reinforced with triangular steel plates, which has stronger load-bearing capacity. Semi tipper trailer for sale adopts T700 high-strength steel, which has high hardness and the box body is bent and formed in one piece, which takes into account both beauty and firmness. Semi tipper trailer for sale adopts widened bent box-type upper beam, and the box body is more stable to prevent forklift collision and deformation.

Semi tipper trailer for sale is equipped with cross balance beams at the front and rear of the main beam to better support the main beam and is not easy to deform.

Semi tipper trailer for sale adopts heavy-duty oil cylinders with large diameter, greater lifting force and higher lifting height, which makes the lifting more stable and not easy to roll over.

The side wall of semi tipper trailer for sale adopts a grid structure, which is more solid. The thickness of the side wall is 4 mm and the thickness of the platform is 4 mm. In order to improve the cargo capacity, 3 high-strength steel columns are used to reinforce the cargo space.

The semi tipper trailer for sale has a built-in detachable cross-connecting rod reinforcement to prevent the body from deforming during lifting and lowering, enhance the integrity of the body and improve its strength.

The extended rear tail unloading guide makes unloading more convenient and prevents cargo from piling up during unloading, thereby avoiding accidents such as vehicle rollover. The rear door hanger is made of 20 mm thick high-strength steel plate and is cut to prevent the rear door from falling off and being damaged.

The semi tipper trailer for sale adopts a quadruple flip seat support, which makes the lifting and unloading process safer. Equipped with anti-rollover support to prevent the vehicle from rolling over or shaking laterally during lifting, thereby avoiding accidents caused by it.
