Different Parameters, Different Price. Price Reference Only.
CIMC also have the 2 axles, 3 axles, 4 axles 38000/40000/45000l aluminium tankers truck trailers. The color could be painted as request.
CIMC 3 axle 45000l aluminum tankers truck trailer adopts longitudinal welding technology to reduce the number of weld seams of the tank and improve the overall firmness of the tank by more than 20%

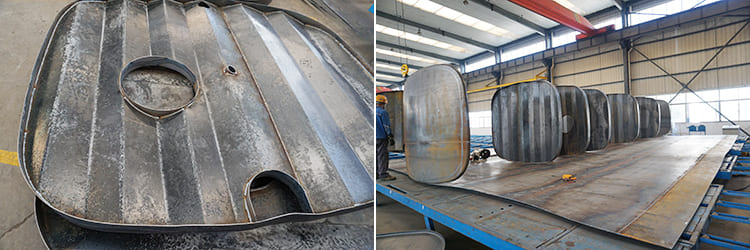

The tank body of the 3 axle 45000l aluminum tankers truck trailer adopts the professional canning machine canning technology and forms at one time.The maximum to protect the tank to the firmness.
3 Axle 45000L Aluminum Tankers Truck Trailers for Sale in Zimbabwe
3 Axle 45000L Aluminum Tankers Truck Trailers for Sale in Zimbabwe
3 Axle 45000L Aluminum Tankers Truck Trailers for Sale in Zimbabwe
Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)
Tare Weight (semi trailer): About 8000-12800kg
Total volume(m³): 45000L
Tank Body Material: 5mm or 6mm/Q235 carbon steel
End plate: 5mm or 6mm/Q235 carbon steel
Manhole Cover: Aluminum alloy
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,12T/13T/16T,BPW/ FUWA
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.
2. The tank body is automatically welded by an advanced large-scale special welding machine.
3. Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.
4. The waved board reduces the impact of the liquid on the tanker.
5. Advanced paint system and polyurethane paint. Appearance is beautiful, use time is above 5 years.
