CIMC 60 Ton Semi Tippers Tractor Trailer

CIMC 60 Ton Semi Tippers Tractor Trailer

18500 USD

Different Parameters, Different Price. Price Reference Only.



CIMC 60 ton semi tippers tractor trailer is mainly used for transporting the sand or small stones or rocks.





SKU: 60 Ton Semi Tippers Tractor Trailer
GTIN: 6975766100438
MPN: ZJV9401007
Brand: CIMC

60 Ton Semi Tippers Tractor Trailer Description:

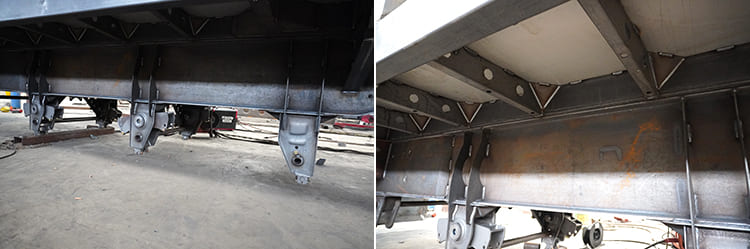

For the CIMC 60 ton semi tippers tractor trailer, the main beam is designed with double plates, which have stronger carrying capacity; it is not easy to damage.

The heavy-duty cylinder of  the CIMC 60 ton semi tippers tractor trailer with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

60 Ton Semi Tippers Tractor Trailer

60 Ton Semi Tippers Tractor Trailers for Sale in Zimbabawe Bulawayo

60 Ton Semi Tippers Tractor Trailer

60 Ton Semi Tippers Tractor Trailers for Sale in Zimbabawe Bulawayo

60 Ton Semi Tippers Tractor Trailer

60 Ton Semi Tippers Tractor Trailers for Sale in Zimbabawe Bulawayo

60 Ton Semi Tippers Tractor Trailer

60 Ton Semi Tippers Tractor Trailers for Sale in Zimbabawe Bulawayo



60 Ton Semi Tippers Tractor Trailer Specification:

Dimension: 11280mmx2495mm x3970mm ( inside dimension )

Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.

Tare Weight (semi trailer): About 15600kg

Total volume(m³): 30-40m³ or less than 100tons

Side wall thickness: 4 - 6mm

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand



60 Ton Semi Tippers Tractor Trailer  Advantage:

1. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

2. Double-plate main beam for tipper semi trailer, which has a stronger carrying capacity, it is not easy to damage.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. The leaf spring is widened and thickened, the shock absorption effect is good.

5. Strengthened Ribs, unique structure design to maximize the payload.
