CIMC Tri Axle 40 Ton High Drop Side Trailer

Tri Axle 60 Ton High Drop Side Trailer Description：

The cross beam of the tri axle 40 ton high drop side trailer and the side beam are enhanced, the down plate of the main beam and the bottom plate of the gooseneck are all reinforced, it can ensure there is no curling during the using procedure.

There are 9 cross beams on the tri axle 40 ton high drop side trailer, the distance between two tilted supports is less than 50 centimeters, it can help the main beam have a better loading capacity.

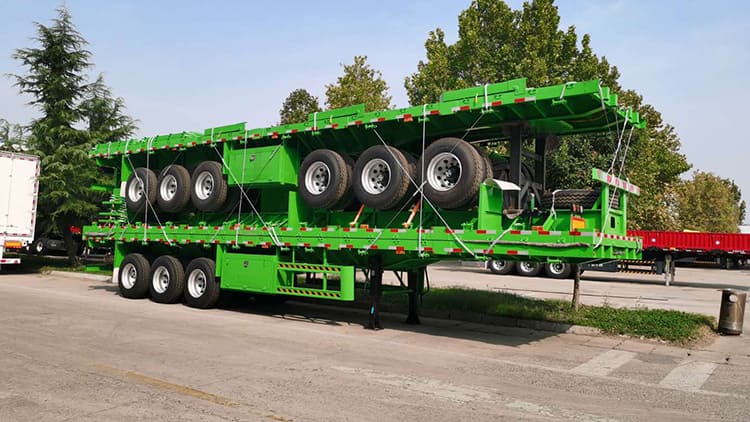

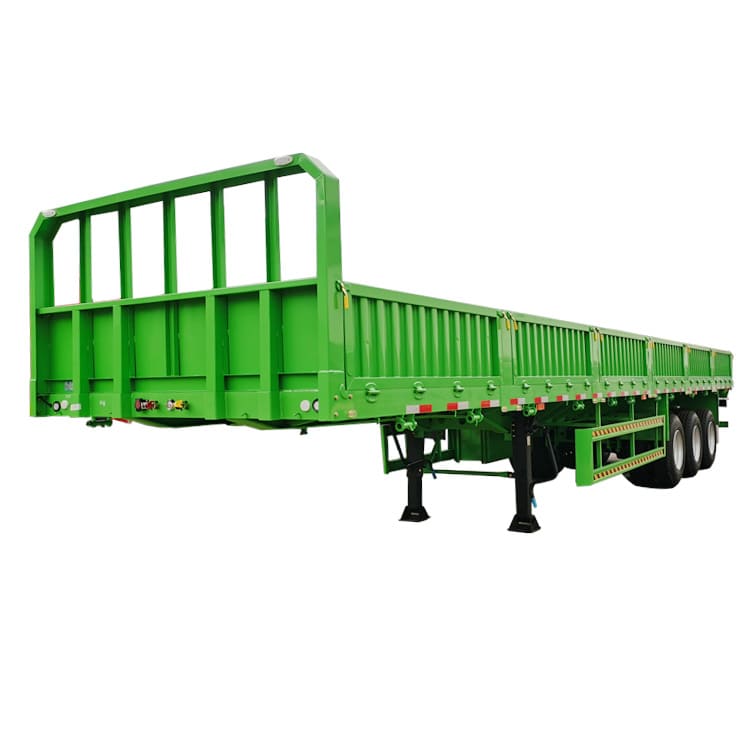

Tri Axle 40 Ton High Drop Side Trailers for Sale in Zimbabwe Harare

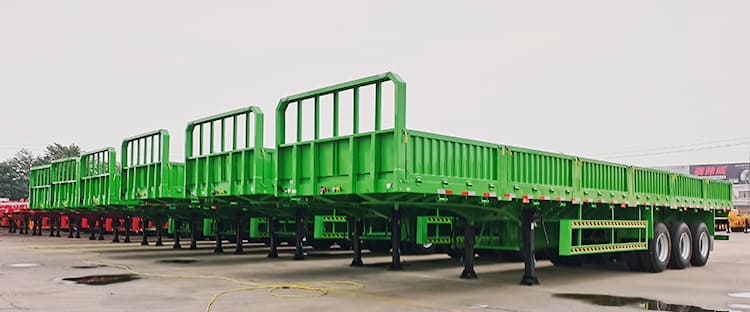

Tri Axle 40 Ton High Drop Side Trailers for Sale in Zimbabwe Harare

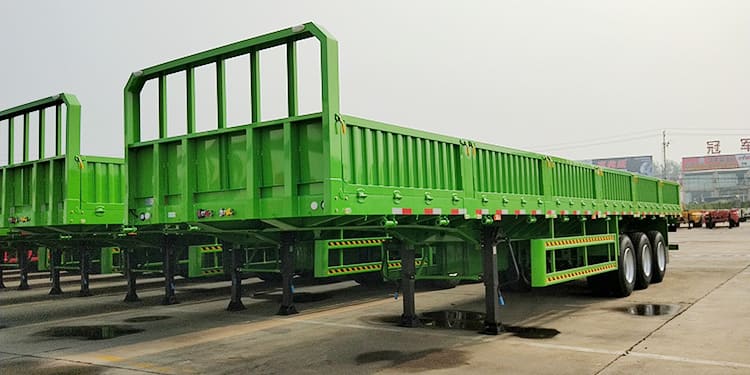

Tri Axle 40 Ton High Drop Side Trailers for Sale in Zimbabwe Harare

Tri Axle 60 Ton High Drop Side Trailer Specification：

Dimension(mm): 12500mm*2500mm*2350mm

Trailer Sides: 600mm sidewall

Loading capacity(ton): 40T

Axles: 3 axles, 13T/16T ,FUWA/ BPW

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tri Axle 60 Ton High Drop Side Trailer Advantage:

1. CIMC Vehicle adopts high strength steel material to manufacture the open top trailer, it can make the trailer have a higher loading capacity and a longer service life.

2. To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous brand.

3. Trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

4. Hight Quality side wall, make sure the stable and safety of the loads.
