CIMC 3 Axles Low Bed Truck Trailer

3 Axles Low Bed Truck Trailer Description:

The 3 axles CIMC low bed truck trailer is mainly composed of ladders, main frame, axles, tires, suspension, light circuit system, “ABS” braking system, tool box, support device and lower side protection device, safety accessories and signs, etc. ,mainly suitable for the transportation of large construction machinery or large machinery.

The side beam of CIMC 3 axles low bed truck trailer adopts "H" shape design and is welded with HG 60 steel and it is designed H shape with a height of 300mm, width of 140mm and thickness of 8mm. Its bearing capacity is twice that of other steel, and it will not deform after ten years of use. Anti - turbulence ability increased about 3 times.

3 Axles Low Bed Truck Trailers for Sale with Lower Price in Zimbabwe Harare

3 Axles Low Bed Truck Trailers for Sale with Lower Price in Zimbabwe Harare

3 Axles Low Bed Truck Trailers for Sale with Lower Price in Zimbabwe Harare

3 Axles Low Bed Truck Trailer Specification：

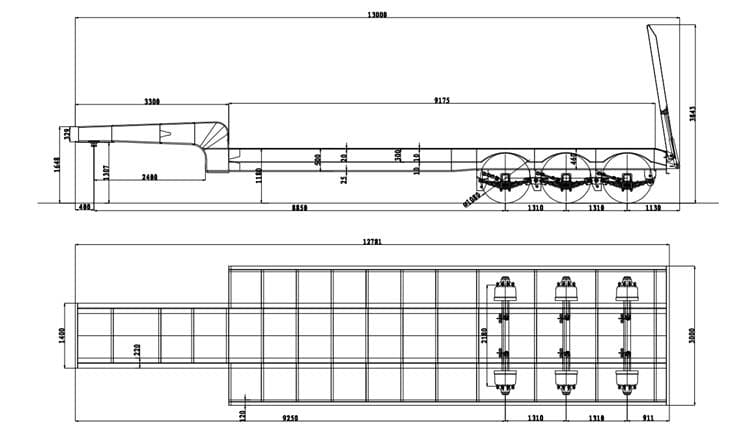

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA / BPW

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

3 Axles Low Bed Truck Trailer Advantage:

1. Main beam adopts HG high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service lift, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.
