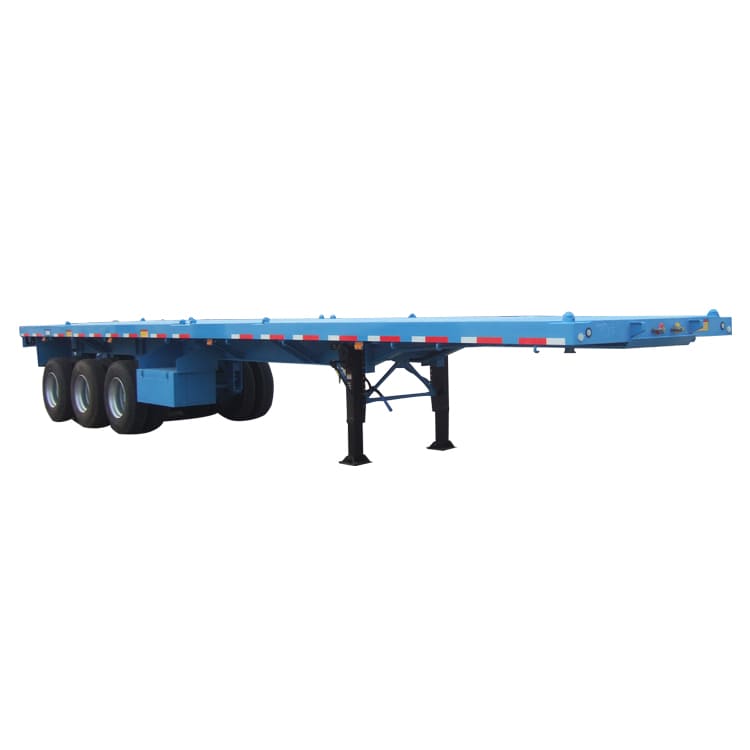

CIMC 40 Foot Tri Axle Trailer

40 Foot Tri Axle Trailer Description：

The 40 foot tri axle trailer is mainly composed of container locks, main frame, axles, tires, suspension, light circuit system, “ABS” braking system, tool box, support device and side and rear lower protection devices, safety accessories and signs, etc.

CIMC adopts the Low carbon high strength alloy steel T700 to make the main beam of the 40 foot tri axle trailer, it has a higher carry capacity and service life of more than 10 years.

CIMC uses automatic submerged arc welding process to weld the main beam of the tri axle 40 foot flat bed trailer. There is no interface between the upper, middle and lower plates of the beam, so it can ensure the integrity of the main beam and make the beam more solid and durable.

40 Foot Tri Axle Trailers for Sale in Harare Zimbabwe

40 Foot Tri Axle Trailers for Sale in Harare Zimbabwe

40 Foot Tri Axle Trailers for Sale in Harare Zimbabwe

40 Foot Tri Axle Trailer Specification:

Tare Weight: About 7.1T

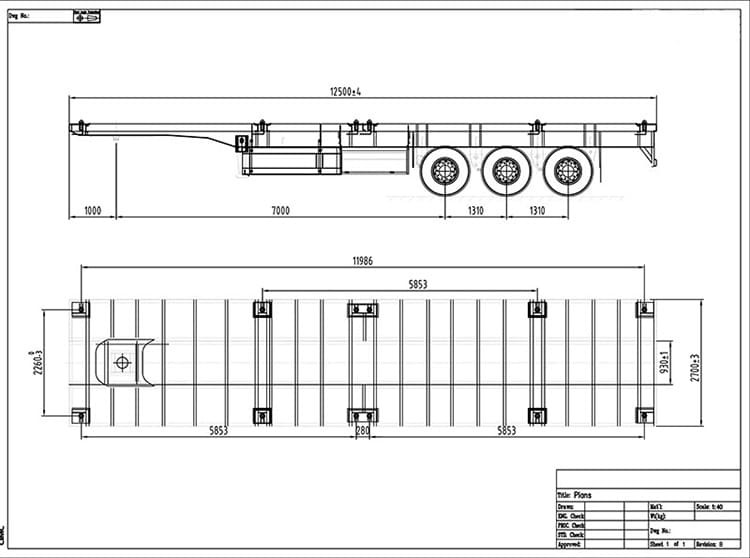

Dimension(mm): 12500x2700x11986

Loading capacity(ton): ≤45T

Axles: 3 axles, 13T/16T ,FUWA/ BPW

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

40 Foot Tri Axle Trailer Advantage:

1. CIMC adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.

2. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable.

3. Durable mechanical widened spring suspension, make sure the stable and safety.

4. polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.

5.Hight Quality container locks, make sure the stable and safety of the loads.
