3 Axle 80 Ton Low Loader Trailer

Low Loader Trailer Price: 15000 USD

Low loader trailer for sale has strong load-bearing capacity, made of high-strength manganese steel/high-strength steel, with reinforced structure, and can carry 40~120 tons or even higher loads. It can be used for transporting super-heavy equipment. It is safer and more stable to transport tall goods, and it is convenient to get on and off the equipment.

CIMC 3 Axle 80 Ton Low Loader Trailer for Sale In Sierra Leone

CIMC 3 Axle 80 Ton Low Loader Trailer for Sale In Sierra Leone

CIMC 3 Axle 80 Ton Low Loader Trailer for Sale In Sierra Leone

CIMC 3 Axle 80 Ton Low Loader Trailer for Sale In Sierra Leone

Specification of Low Loader Trailer

Loading capacity: 80 ton

Overall dimension: 13000mm * 3000mm *3750mm

Axles: 3 axles

Tire: 12 units, 12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Landing gear: JOST brand

Ramp: Spring Ramp

Kingpin: JOST brand 2.0 or 3.5 inch

Valve: WABCO valve

Light: LED light

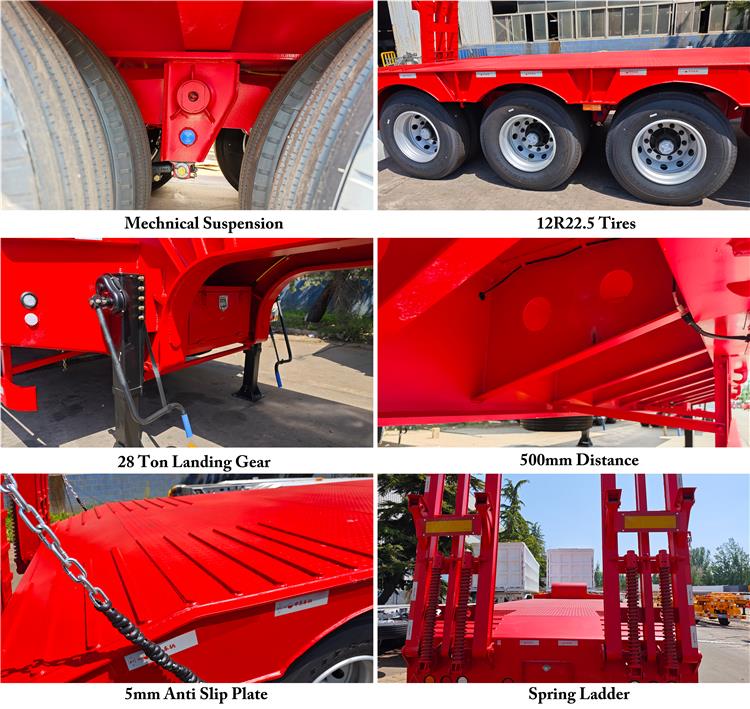

Advantage of Low Loader Trailer

The low loader trailer for sale features a high-quality brand undercarriage with a standard load capacity of 28 tons. In addition, we also offer JOST undercarriage options, which is well-known for its excellent load-bearing capacity and long service life, making it the perfect choice for customers who seek extreme performance.

The low loader trailer for sale is equipped with a reinforced suspension system, including a 70 mm center balance pin and additional reinforcements at the front and rear.

The low loader trailer for sale also uses thicker 16 mm leaf springs to significantly reduce deformation even when loaded with an excavator. This heavy-duty system is designed to cope with the rigors of African roads, where muddy roads and poor road conditions are common.

The crossbeam of the low loader trailer for sale is made of HG60 high-strength steel, and the thickness of the crossbeam and diagonal brace are both 6 mm. This strong structure firmly connects the main beam and the side beam, significantly improving the load-bearing capacity and anti-turbine stability. This design makes its service life exceed 10 years. In addition, the special design of the low loader trailer for sale does not require hollowing out the main beam, which significantly improves its service life and load-bearing capacity.

The low loader trailer for sale is equipped with a high-elastic double-spring loading ramp (also known as a mechanical ramp). The loading ramp is made of high-strength HG60 steel plate, which has excellent load-bearing capacity and prevents deformation or damage when supporting excavators and other heavy equipment. They are durable and have a service life of more than five years.
