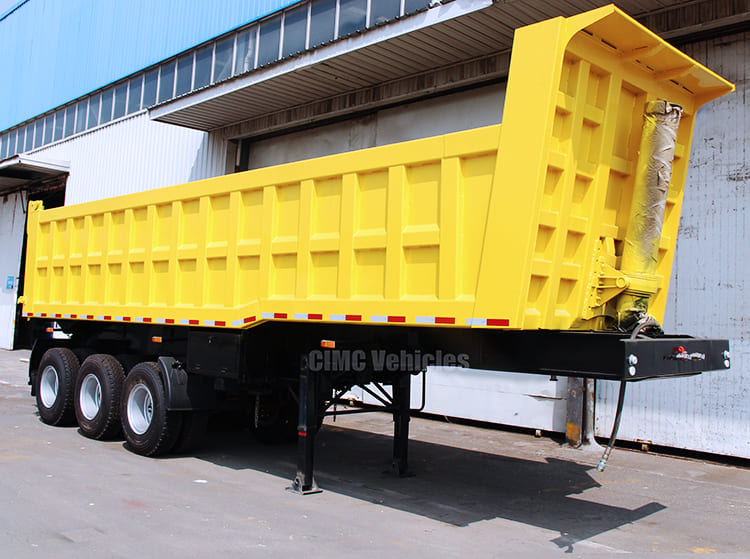

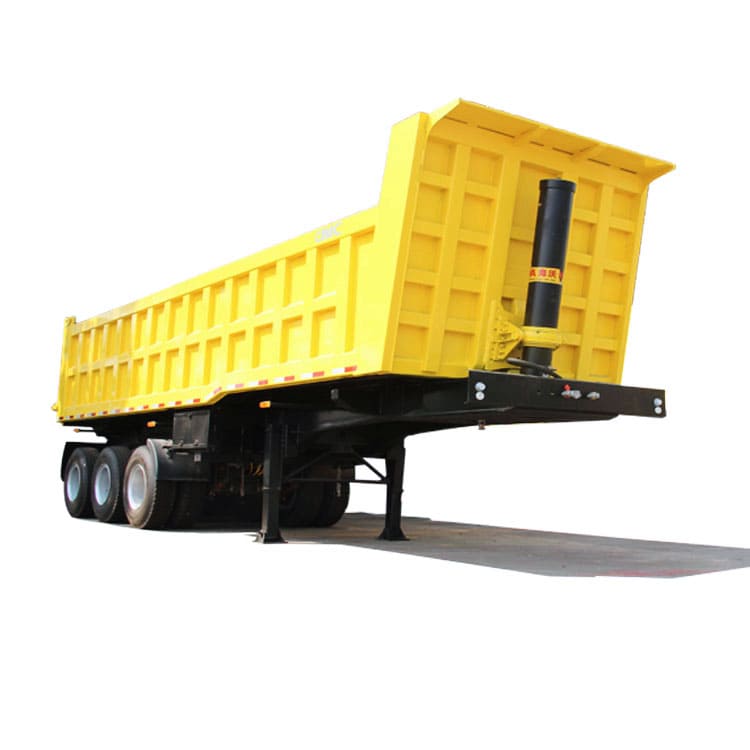

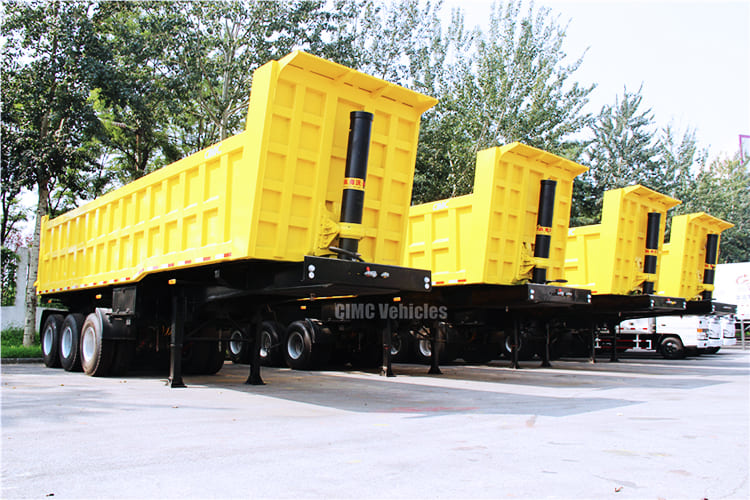

CIMC 3 Axle 80 Ton Semi Tipper Trailer

3 Axle 80 Ton Semi Tipper Trailer Description:

3 axle 80 ton semi tipper trailer is a semi-trailer suitable for the transportation of bulk and scattered goods such as coal, ore, earthwork, and construction materials.The movement of the piston rod is controlled by the steering system, and the 3 axle 80 ton semi tipper trailer is widely used.

3 Axle 80 Ton Semi Tipper Trailer for Sale Near Me with Lower Price Manufacturer

3 Axle 80 Ton Semi Tipper Trailer for Sale Near Me with Lower Price Manufacturer

3 Axle 80 Ton Semi Tipper Trailer Specification：

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume: 80 Ton

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

3 Axle 80 Ton Semi Tipper Trailer Advantage:

1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.
