Tri Axles 30CBM Hydraulic Semi Tipper Trailer

Tri Axles 30CBM Hydraulic Semi Tipper Trailer

18500 USD

Different Parameters, Different Price. Price Reference Only.



Tri Axles 30CBM Hydraulic Semi Tipper Trailer can be customized from 15 tons to 80 tons, 80 tons to 120 tons,  120 tons-180 tons of different tonnage according to the different cargoes.

SKU: Tri Axles 30CBM Hydraulic Semi Tipper Trailer
GTIN:
MPN: ZJV9505110
Brand: CIMC

Tri Axles 30CBM Hydraulic Semi Tipper Trailer Description:

Tri axles 30CBM hydraulic semi tipper trailer is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and power take-off device. If it is a large coal mine or a large-scale project, the labor and cost of truck freight is much higher than that of tipper semi-trailer, and tri axles 30CBM hydraulic semi tipper trailer is more suitable for use in these aspects. times, which can shorten the engineering time and improve the efficiency.

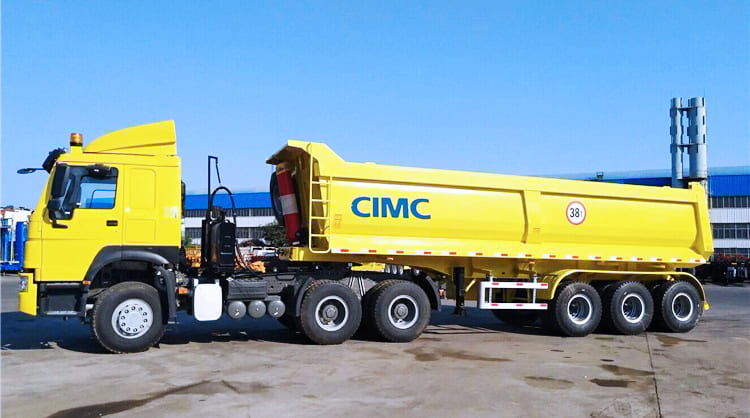

 tri axles 30CBM hydraulic semi tipper trailer

Tri Axles 30CBM Hydraulic Semi Tipper Trailer for Sale with Best Price in Ghana

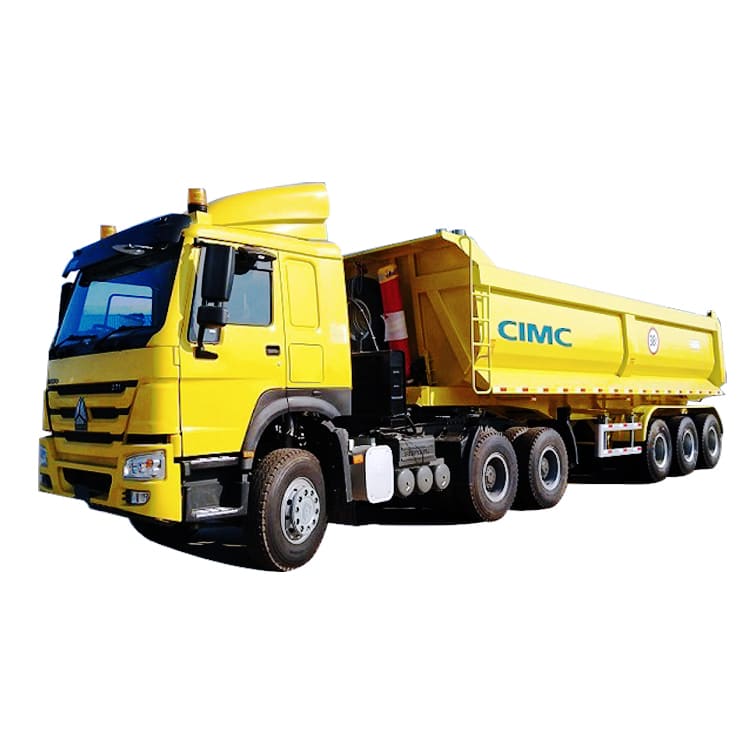

 tri axles 30CBM hydraulic semi tipper trailer

Tri Axles 30CBM Hydraulic Semi Tipper Trailer for Sale with Best Price in Ghana



Tri Axles 30CBM Hydraulic Semi Tipper Trailer Specification:

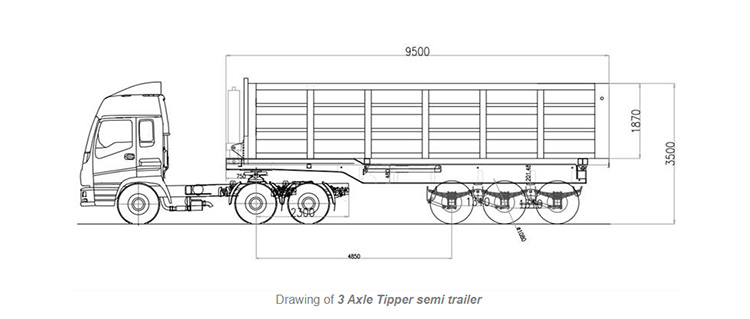

Dimension: 9500mmx2500mm x3500mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume: 30CBM

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

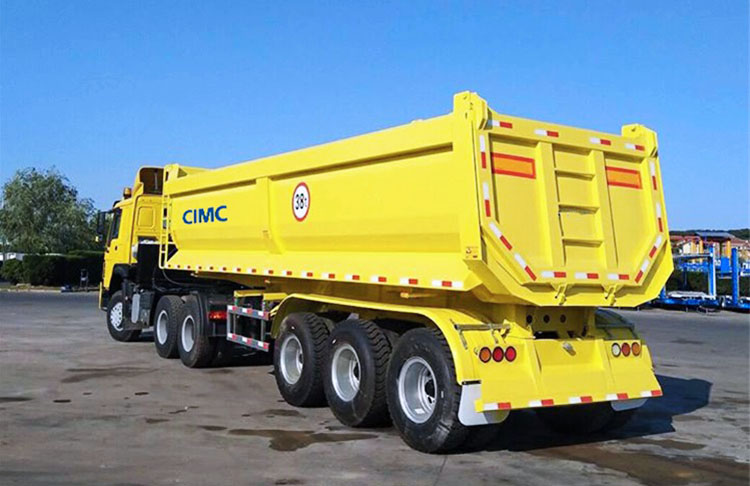

 tri axles 30CBM hydraulic semi tipper trailer



Tri Axles 30CBM Hydraulic Semi Tipper Trailer Advantage:

1. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

2. Double-plate main beam for tipper semi trailer, which has a stronger carrying capacity, it is not easy to damage.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. The leaf spring is widened and thickened, the shock absorption effect is good.

5. Strengthened Ribs, unique structure design to maximize the payload.
