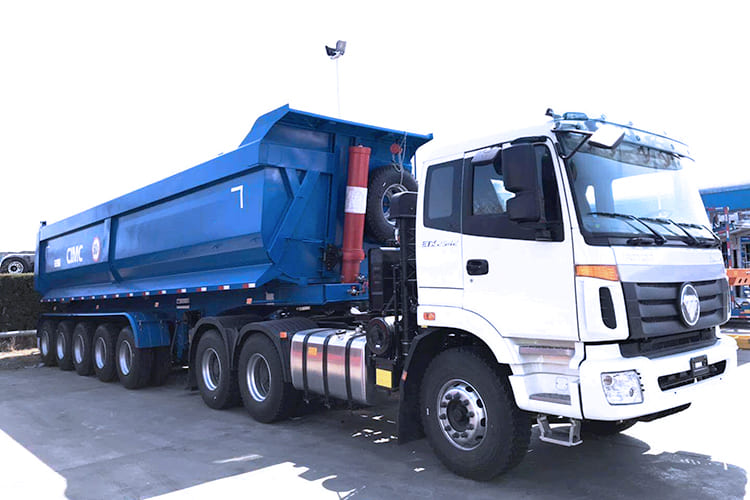

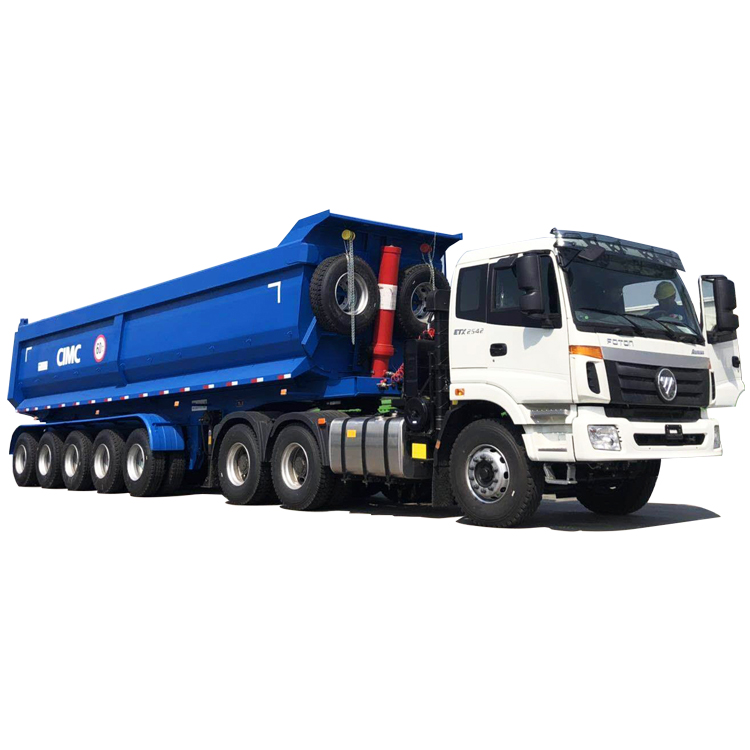

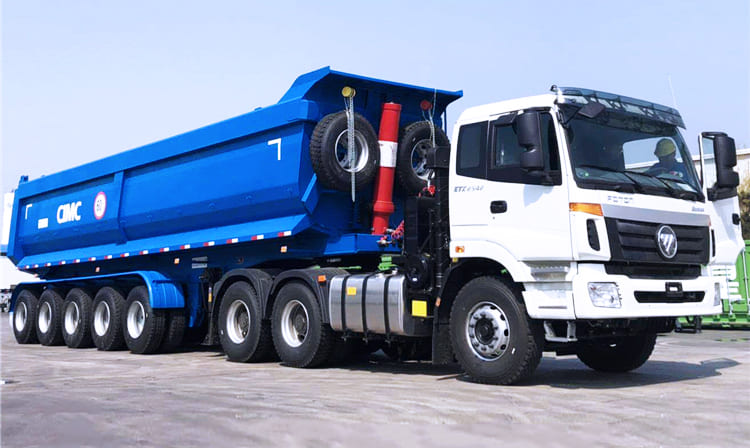

CIMC 5 Axles 35 Cubic Semi Tipper Trailer

5 Axles 35 Cubic Semi Tipper Trailer Description:

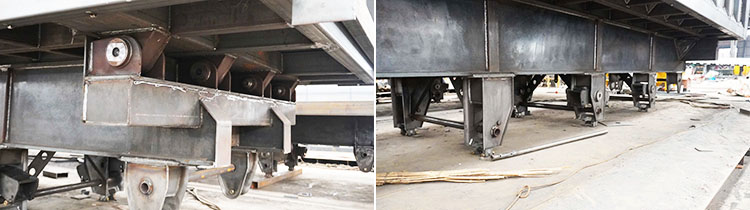

5 axles 35 cubic semi tipper trailer is using the cross balance beam: There is a balance beam at the front and rear of the main beam, which can better support the beam and is not easy to deform.

5 axles 35 cubic semi tipper trailer also adopts 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

New 5 Axles 35 Cubic Semi Tipper Trailers for Sale with Good Prices in Nigeria

New 5 Axles 35 Cubic Semi Tipper Trailers for Sale with Good Prices in Nigeria

5 Axles 35 Cubic Semi Tipper Trailer Specification:

Dimension: 11000mm* 2500mm *4000mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume: 30CBM

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

5 Axles 35 Cubic Semi Tipper Trailer Advantages:

1. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

2. Double-plate main beam for tipper semi trailer, which has a stronger carrying capacity, it is not easy to damage.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. The leaf spring is widened and thickened, the shock absorption effect is good.

5. Strengthened Ribs, unique structure design to maximize the payload.
