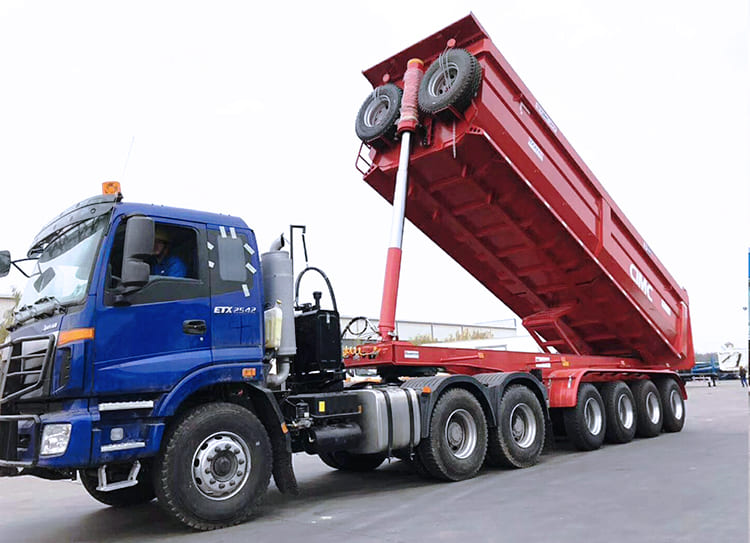

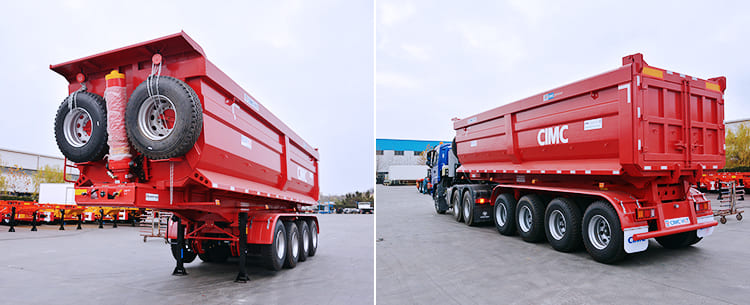

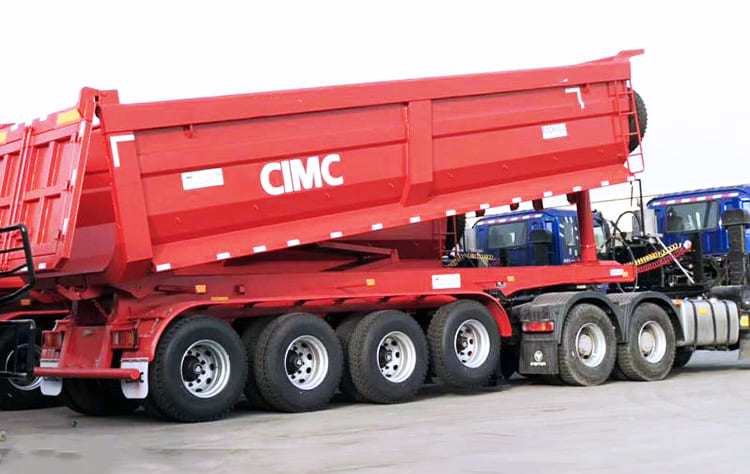

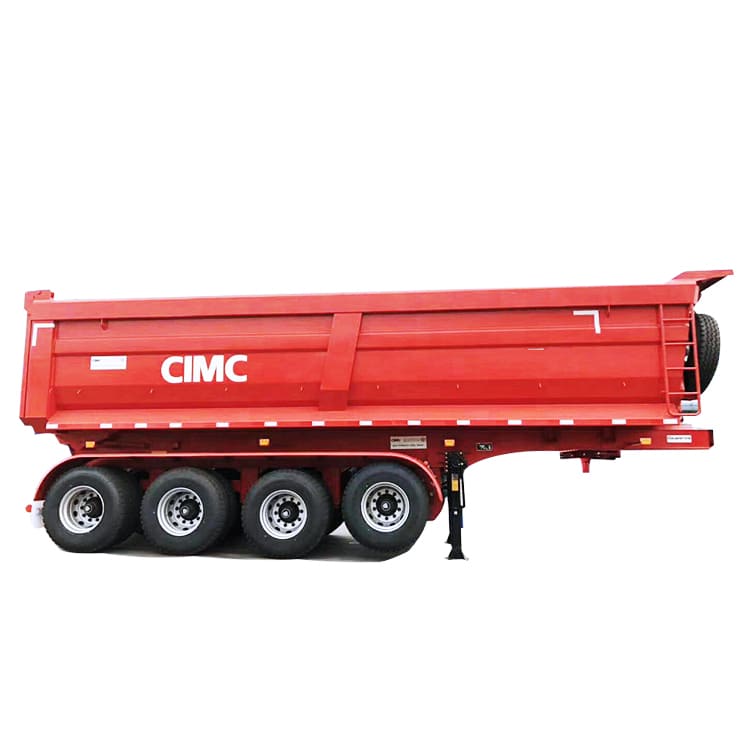

4 Axles 35 Cubic Rear Semi Tipper Trailer

4 Axles 35 Cubic Rear Semi Tipper Trailer Description:

The 4 axles 35 cubic rear semi tipper trailer is mainly composed of a tractor and a semi-trailer. The tractor is connected by a saddle and a semi-trailer to form a semi-trailer train. The 4 axles 35 cubic rear semi tipper trailer hydraulic lift system is mainly composed of power take-off (transmission), hydraulic pump, lift valve, pneumatic control valve, limit valve, hydraulic cylinder, hydraulic oil tank, high (low) pressure oil pipe and so on.

4 Axles 35 Cubic Rear Semi Tipper Trailers for Sale with Good Price Manufacturers

4 Axles 35 Cubic Rear Semi Tipper Trailers for Sale with Good Price Manufacturers

4 Axles 35 Cubic Rear Semi Tipper Trailer Specification:

Dimension: 9300mmx2500mm x3700mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume: 35 Cubic

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

4 Axles 35 Cubic Rear Semi Tipper Trailer Advantage:

1. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

2. Double-plate main beam for tipper semi trailer, which has a stronger carrying capacity, it is not easy to damage.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. The leaf spring is widened and thickened, the shock absorption effect is good.
