CIMC 3 Axle 60 Tons Semi Tipper Trailer

CIMC 3 Axle 60 Tons Semi Tipper Trailer

18500 USD

Different Parameters, Different Price. Price Reference Only.



3 Axle 60 Tons Semi Tipper Trailer for road transportation are mainly responsible for the transportation of loose goods such as sand, soil and coal.



SKU: 3 Axle 60 Tons Semi Tipper Trailer
GTIN:
MPN: ZJV9505111
Brand: CIMC

3 Axle 60 Tons Semi Tipper Trailer Description:

The sides are welding molding which increasing the loading capacity. The 3 axle 60 tons semi tipper trailer could be used for nearly 10 years.

The 3 axle 60 tons semi tipper trailer could bear the bad road conditions. We reinforce the sides with high tensile strengthening rip and the channel steel reinforced enclosure shape design.

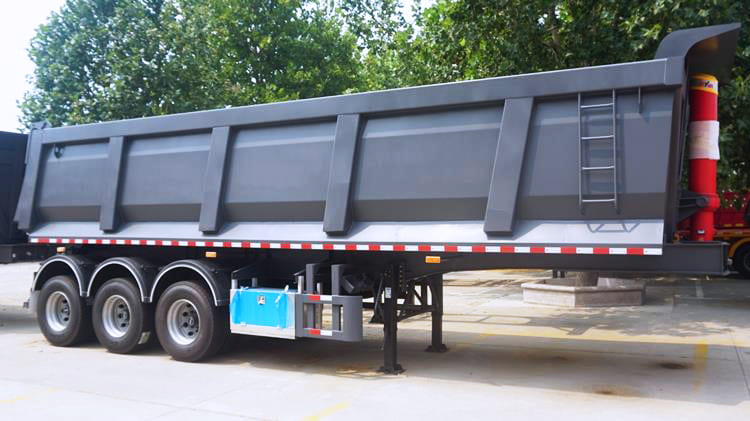

3 axle 60 tons semi tipper trailer

3 Axle 60 Tons Semi Tipper Trailer for Sale with Best Price Near Me in Tanzania

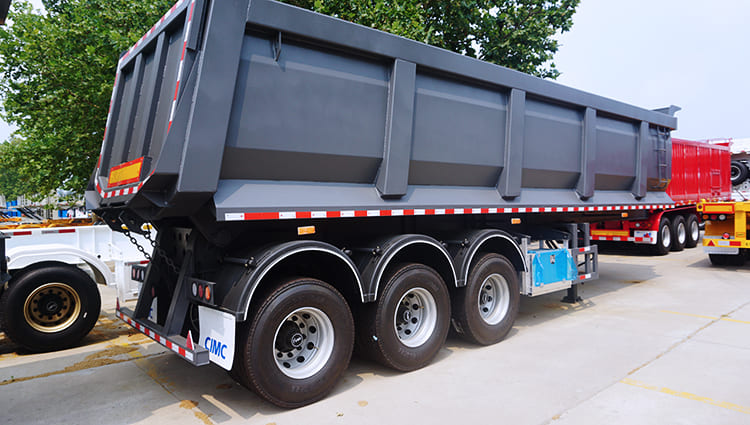

3 axle 60 tons semi tipper trailer

3 Axle 60 Tons Semi Tipper Trailer for Sale with Best Price Near Me in Tanzania



3 Axle 60 Tons Semi Tipper Trailer Specification:

Dimension: 9300mmx2500mm x3700mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume: 60 Ton

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

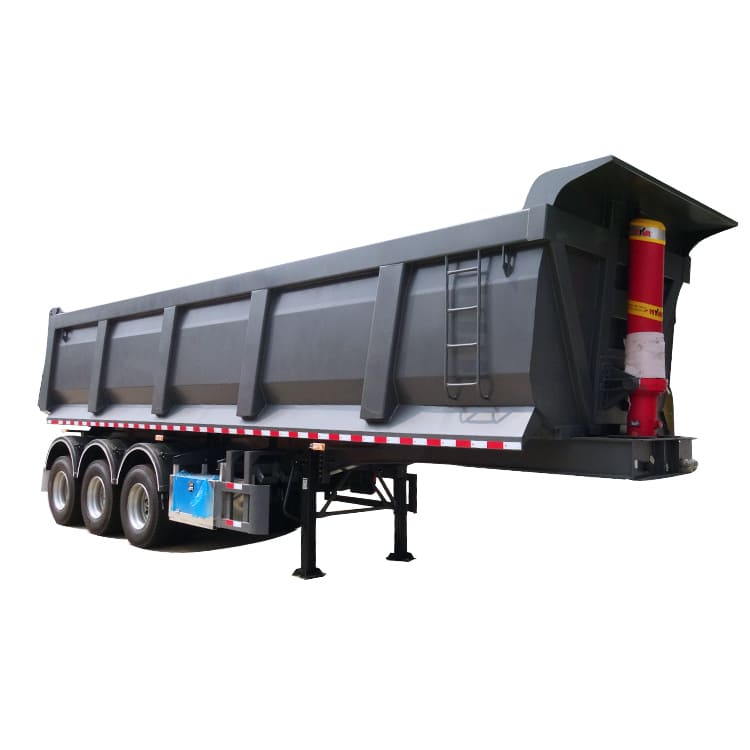

3 axle 60 tons semi tipper trailer



3 Axle 60 Tons Semi Tipper Trailer Advantage:

1. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

2. Double-plate main beam for tipper semi trailer, which has a stronger carrying capacity, it is not easy to damage.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. The leaf spring is widened and thickened, the shock absorption effect is good.

5. Strengthened Ribs, unique structure design to maximize the payload.
