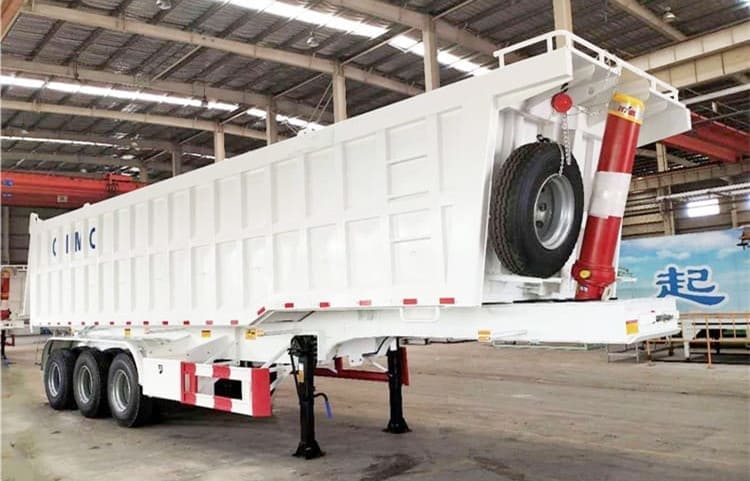

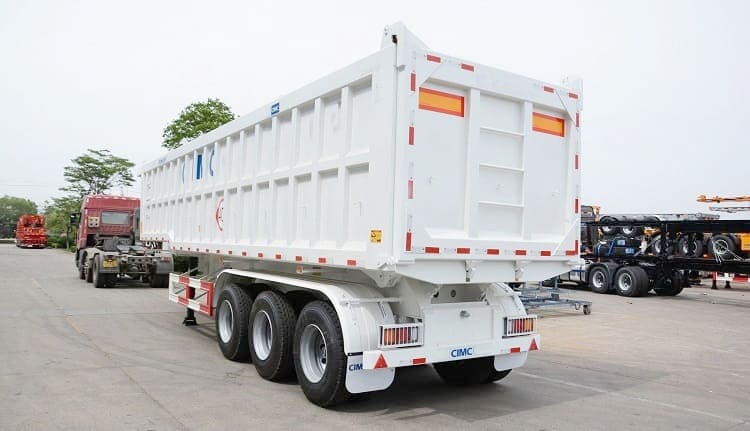

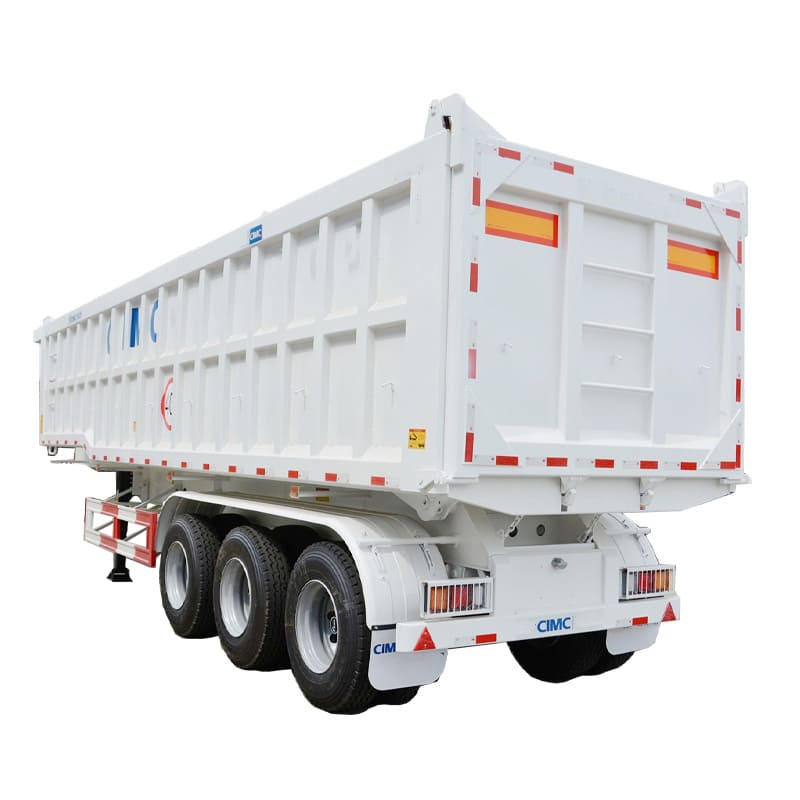

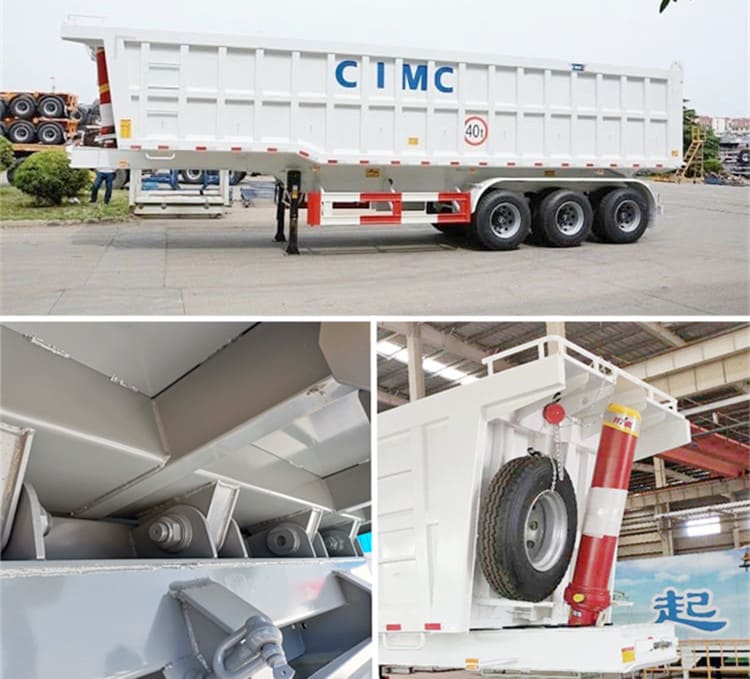

3 Axle End Dump Semi Trailer

3 Axle End Dump Semi Trailer:

CIMC 3 axle end dump semi trailers for sale adopts high strength steel T700, offering all the durability of high-tensile-strength steel and unique structure design to maximize payload to increase your profitability. So, CIMC designs one of the strongest Tipper Trailers for Sale on the road today.

CIMC semi trailers for sale equipped with reliable hydraulic cylinder. We can customize CIMC dump trailer according to your special need, like U shape dump trailer, end dump semi trailer, side tipper, and container tippers.

3 Axle End Dump Semi Trailers for Sale in Jamaica

3 Axle End Dump Semi Trailers for Sale in Jamaica

3 Axle End Dump Semi Trailers for Sale in Jamaica

End Dump Trailer Specification:

Name: CIMC Dumper Trailer

Tare weight: 40T

Bottom plate thickness(mm): 5mm-8mm /Q235 steel or can be optional

Lifting system: Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder

Main Beams: Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel

Axle: 3 axles, 13T/16T, FUWA/BPW/ Brand

Landing Gear: JOST (D200T)or China Brand 28Tons

King Pin: 50#, 90#

Suspension: Mechanical suspension or Air suspension
