Chapter 1: CIMC semi trailers for sale in Jamaica
Chapter 2: What is a low loader truck?
Chapter 3: Low bed trailer specification
3.1: How high is a low bed trailer?
3.2: How long is a low bed trailer?
3.3: Low bed trailer dimensions
3.4: Low bed trailer capacity
Chapter 4: Why choose CIMC flatbed trailer
With a rich experience of 13 years, we have acquired the requisite expertise and excellence in our domain. We have an annual sales volume of ten million dollars business, containing 600-700 units CIMC semi trailers. Having scaled phenomenal heights of success, today we stand tall amidst a number of competitors across the world. A well coordinated and expertly managed operation system and professional international sales team enable us to turn orders into final products and export them to approximately 60countries and several regions across the globe. Among them, Jamaica is one of the countries where CIMC often sells.
Pre-sale Serivce: Professional design team supply personalized service according to customer's demand. Ensuring the maximum precision, the experienced engineer will review the drawings again before production.
Contract Operation: Common trailer's delivery time can be controlled within 25 working days after receive the deposit. Strict quality control system make sure perfect performance in every progress
Delivery Arrangement: According to different transport requirements, the company logistics Depart will supply customer the professional transport service. The necessary documents (such as contract, commercial invoice, packing list, certificate of china origin, certificate) can be supplied.
After-sales Service: Regularly callback aid us to know vehicles working status .Depending on this, the company can offer reasonable tech proposals. Timely parts supply guarantee vehicles work continuously. The overseas engineer is in ready all the time against unexpected needs.
The low loader trailer series products are suitable for a variety of mechanical equipment, large objects, road construction equipment, large tanks, power station equipment and machinery. They are widely used, efficient and fast. The whole low load trailer adopts advanced computer-aided design software, which is optimized for flexible and diverse design. The load-bearing surface of the frame is designed according to user requirements to meet the transportation of various special goods.
Low loader trailers have lowbed, concave beam and tire exposed structures, and the longitudinal beams are straight or gooseneck. The frame is stepped, and the cross section of the longitudinal beam is I-shaped, which has the characteristics of high rigidity and high strength.
The main plane of the frame and cargo platform is low, which ensures the stability of transportation, and is suitable for carrying all kinds of construction machinery, large equipment and steel. The lower the platform height of the Low Loader, the better the stability and safety. Our low loader has a large carrying capacity when transporting extra high and medium cargo.

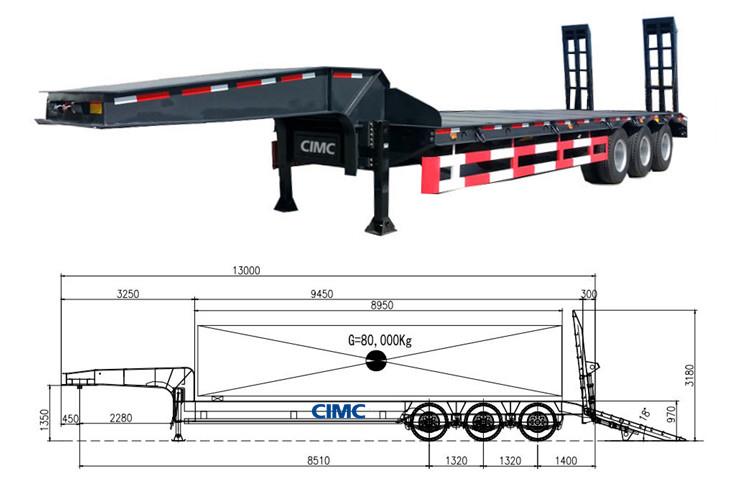

CIMC 3 axle low bed trailer details
3.1: How high is a low bed trailer?
low bed trailer height from ground: 850-1250 mm
low bed trailer max-height: 1750 mm
3.2: How long is a low bed trailer?
The 2 axle low bed trailer length: 11500mm
The 3 axle low bed trailer for sale length: 13000mm
The 4 axle low bed trailer price length: 15800mm
3.3: Low bed trailer dimensions
2 axle low bed trailer price dimensions: 11500*2500*2900mm
3 axle low bed semi trailer dimensions: 13000*3000*3400mm
4 axle lowbed trailer for sale dimensions: 15800*3000*3400mm
3.4: Low bed trailer capacity
2 axle low bed trailer capacity: 30-40 ton
3 axle low bed trailer price capacity: 50-80 ton
4 axle lowbed trailer loading capacity: 90-120 ton
1. Working platform of container flatbed trailer for sale
The work platfrom is the main load-bearing part, which is composed of the main beam, side beam, cross beam, bottom floor, suspension and so on. The main beam should pay attention to whether the thickness is an international standard. The international standard for the main beam of a flatbed trailer is 14/8/16 mm. The steel plate in the middle of the beam is made of Q345B manganese steel, the thickness is 8mm. Many unreliable suppliers will use 6mm main beam to save costs. But the carrying capacity was reduced by 26%.
2. Axle of tri axle trailer
The axles of semi trailers for sale have three types: 13-ton axles, 13-ton axles, and 16-ton brake system axles, 16-ton axles.
The axle of the CIMC truck and trailer for sale is a 13-ton axle and 16-ton brake system axle, which has better braking performance and shortens the braking distance by more than 5 meters.
3. Suspension of flatbed semi trailer truck
CIMC flatbed trailers common mechanical suspension adopts special high strength steel. 6mm thickness. The center pin diameter is 70mm. Stronger than suspensions in many factories.
And we also have bogie suspension and airbag suspension for you to choose.
4. Tire of flatbed tractor trailer for sale
The tri axle flatbed trailer uses a vacuum tire with better heat dissipation performance, the model is 12R22.5.
CIMC flatbed container uses custom made tires in a tire factory, wear-resistant tires. On Chinese highways, CIMC tires can reach more than 300,000 kilometers.
5. Bottom floor of flatbed semi trailers for sale
Bottom Floor, many cheap trailers for sale also can transport bulk cargo and other items. The bottom plate of the CIMC tri axle trailer passes the international standard 3mm thick checkered plate. If it use 2mm thick pattern plate or a 2.5mm bottom plate. It will cost less $ 700. Tri axle flatbed semitrailer weight limit is 60ton capacity.
