Material: Steel/Aluminum Alloy
Size: 9500*2500*4000 mm
Suspension: Mechanical / Air Suspension
King pin: 2"(50mm)or3.5"(90mm) JOST
The cement tanker is composed of a bulk cement tanker trailer chassis and a special device for powder bulk transportation. The bodywork mainly includes additional transmission system, tank assembly, and pipes. The main volumes of cement tanker trailer are 25/30/35/40/55/65 cubic meters. Powder tank trailers are V-shaped and W-shaped.
Bulk cement tanker, full name of powder material transportation trailer, it is suitable for bulk transportation of powder dry materials with particle diameter not greater than 0.1mm, such as fly ash, cement, lime powder, ore powder, and granular alkali. The powder material transportation vehicle is a special-purpose vehicle that is widely used in industry, agriculture, commerce, power plants, construction, etc.
In order to prevent the cement bulker trailer paint from being corroded by seawater, we spray a layer of wax on the surface of the pneumatic sand trailer before shipping, and then seal it with a waterproof rain cloth.
CIMC bulk cement tanker manufacturers

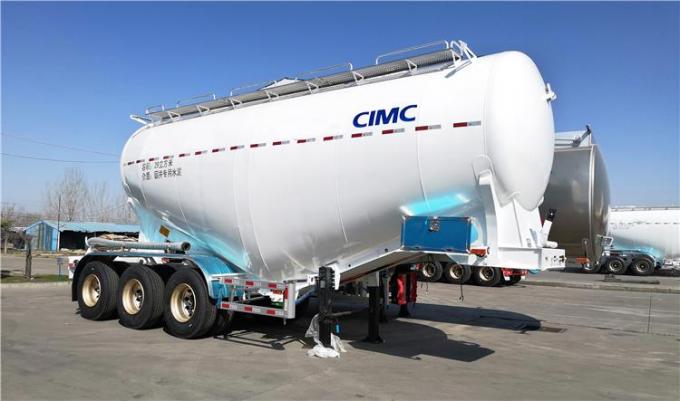

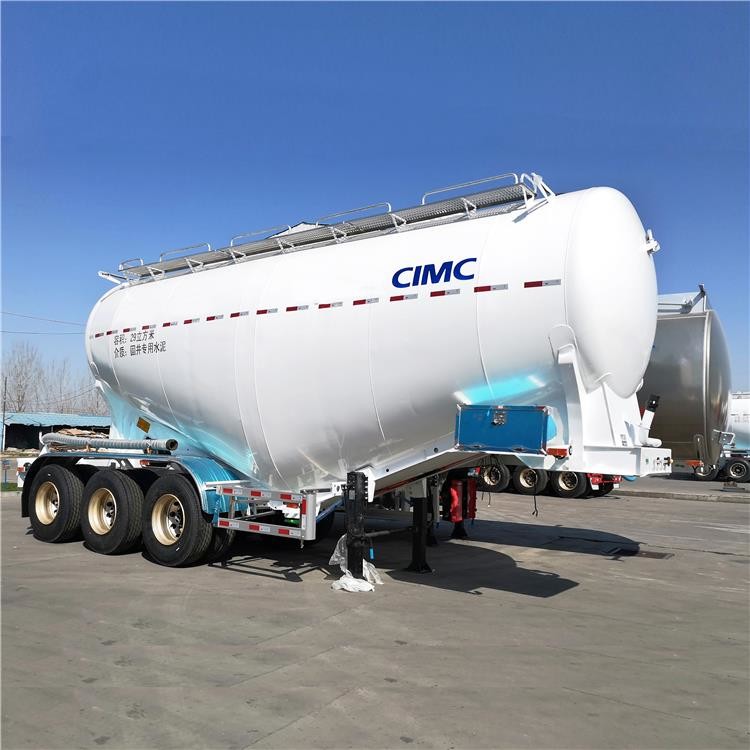

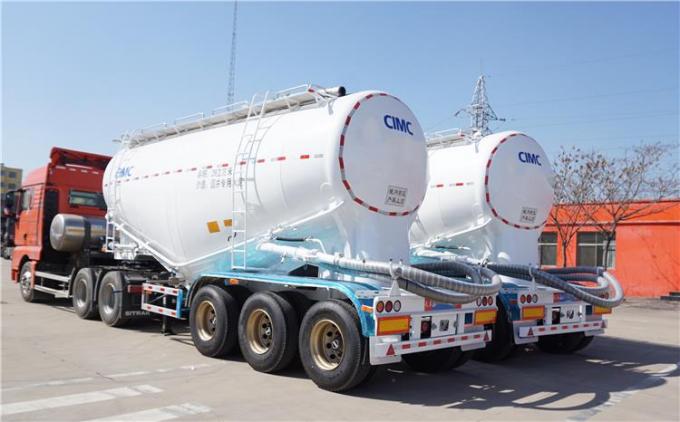

CIMC 3 bulk cement tanker trailer
1.The employment of CAD three-dimensional design,can optimize the line path structure, make cement tank trailer more suitable to the African road condition.
2. CIMC cement tanker uses world-famous brand diesel-engine Weichai 4102 to help the air compressor work better, the discharging speed can reach to 1.6ton per minute, the cement allowance is no more than 50kg.
3. Also famous German made WABCO braking valve, to make sure the safety on the road.

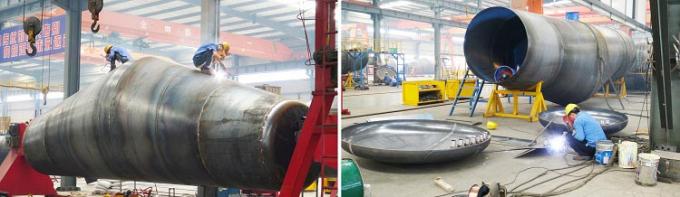

4. CIMC adopts the latest advanced automatic splice plate machine to weld the steel plate with double-side, that ensure the high quality of welding seams, long service life and good appearance in tank body,long service life.
| Dimension: | 9500*2500*4000 mm |
| Tank Body | |
| Tank thickness | 4 mm |
| Front & end plate | 4 mm |
| Tank rated pressure | 0.2Mpa |
| Discharging System | |
| Diesel Engine | Model 4102 Diesel |
| Air Compressor | 12 m³ one unit double cylinders compressor |
| Discharging valve | 4 inch butterfly valve |
| Discharging pipe | 1pcs, 6m/each |
| Manholes | 2 pcs |
| Trailer Chassis | |
| Main Beam | Welded design, |
| Axles | 3 axles |
| Landing gear | 28T |
| Kin pin | 3.5 inch high tensile bolt-in king pin |
| Suspension | Mechanical suspension with 10 layers leaf spring |
| Tire | 12.00R22.5 , |
| Braking system | WABCO emergency valve; |
| Electrical system | Voltage: 24V |
| Tool box & tire carrier | One tool box , 2 pieces tire carrier |
| Light & reflector | Rear light, rear reflector, turn indicative light, side reflector,fog lamp,number plate light |
