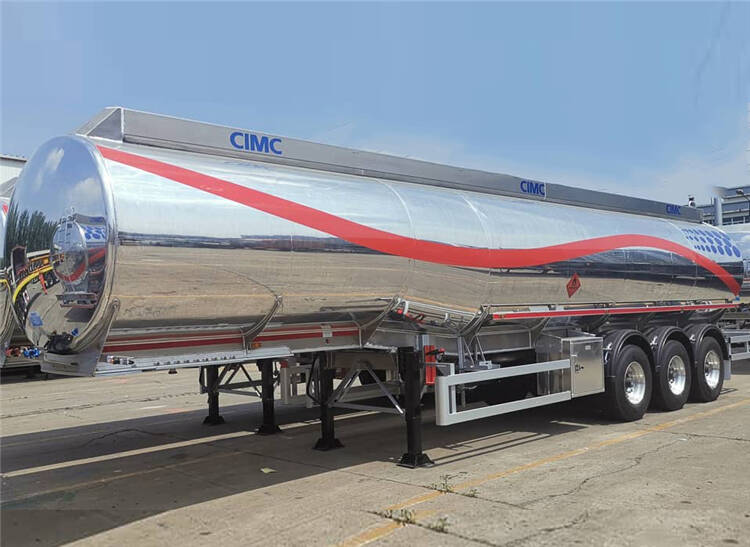

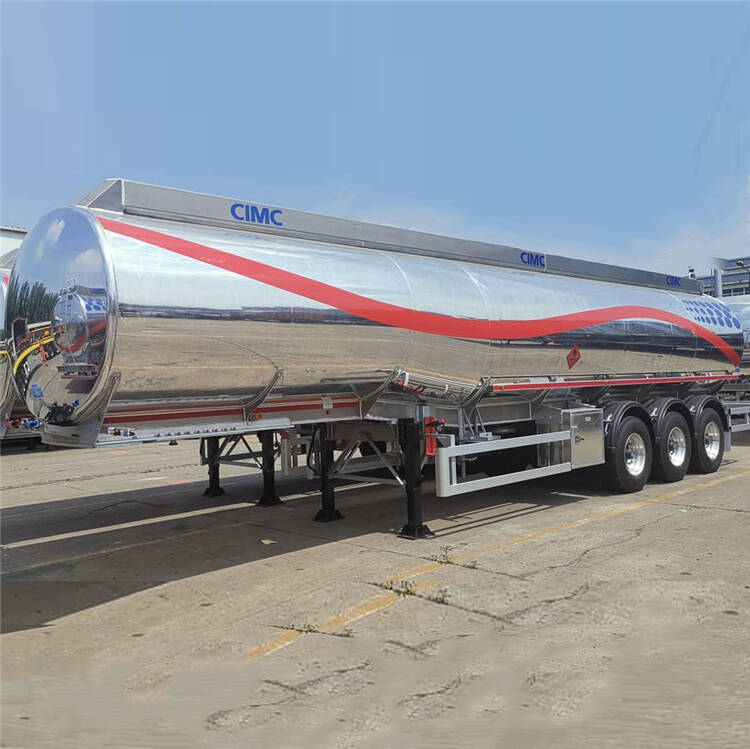

35CBM Stainless Tanker Trailer

Product Description:

CIMC 35CBM Stainless Tanker Trailer is ideally designed in accordance with ADR for the transport of diesel, gasoline, kerosene or part of chemicals like sulphuric acid. Our fuel transport trailer with good mechanical properties, reliable welding, high strength and lightweight. Aluminum alloy explosion-proof manhole covers, non-slip paint, aluminum alloy folding guardrail integral side protective and control toolbox.

CIMC 35CBM Stainless Tanker Trailer featured with minimal seams maximum strength. Its tank body is made of the widest sheet material.

35CBM Stainless Tanker Trailer

Specification:

Dimension: 12100mm*2500mm*3900mm(the exact size depends on the final design)

Volume: 35CBM Stainless Tanker Trailer

Application:  transport Fuel, Oil, Diesel

Tank body:

Material: Stainless steel

Tank body and separate compartment plate:  6mm

Compartments: 1 to 7 compartments, based on customer needs

Manhole cover: Aluminum alloy API manhole cover 500mm (diameter)

Discharge valve: Diameter is 3 or 4 inch

Bottom valve: Aluminum  API Pneumatic Bottom Valve

Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment

Chassis:

Axles: 3 units, FUWA/BPW/CIMC/other

Landing Gear: JOST brand

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Suspension: Mechanical suspension or air suspension

Brake System: WABCO

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
