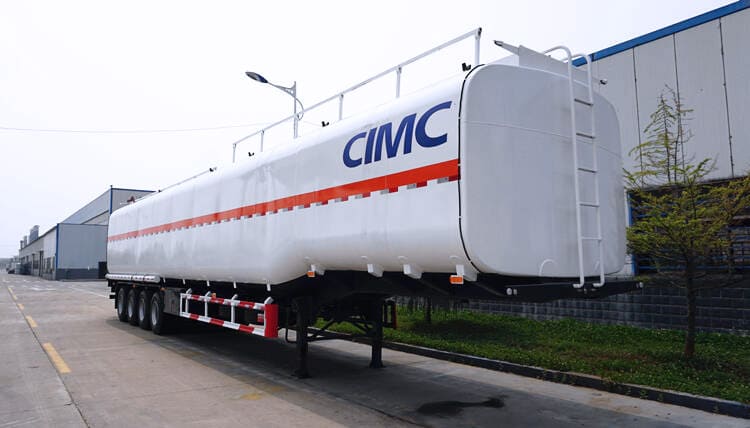

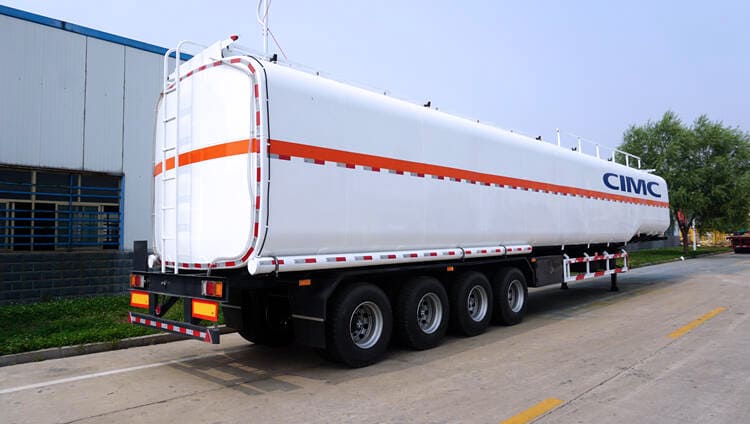

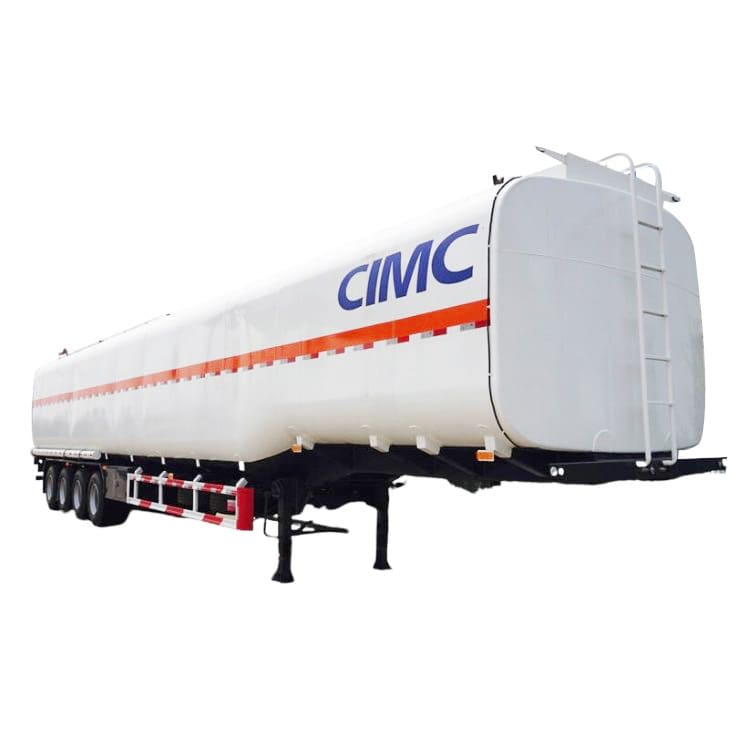

CIMC 4 Axle Semi Fuel Tank Trailer is specially designed for the transportation of gasoline, kerosene, diesel, edible oil, heavy oil, coal tar and non-petroleum products such as alcohol, aldehyde, benzene, and other liquid.
CIMC 4 Axle Semi Fuel Tank Trailer's discharging valve can be placed on the left or right side of the tank. It aslo can be divided into various compartments, such as three compartments, four compartments and so on. The model of discharging valve can choose Chinese style, European style.
Dimension: 11000mm*2500mm*3700mm(the exact size depends on the final design)
Volume: 42000liters
Application: transport Fuel, Oil, Diesel
Tank body:
Material: Carbon steel
Tank body and separate compartment plate: 6mm
Compartments: 1 to 7 compartments, based on customer needs
Manhole cover: Carbon steel or Aluminum alloy API manhole cover 500mm (diameter)
Discharge valve: Diameter is 3 or 4 inch
Bottom valve: Aluminum API Pneumatic Bottom Valve
Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment
Chassis:
Axles: 4 units, FUWA/BPW/CIMC/other
Landing Gear: JOST brand
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Suspension: Mechanical suspension
Brake System: WABCO
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
