Size: 12400*2500*1550mm
Material: Carbon steeel
Suspension: Mechanical / Air / Bogie
King pin: 2"(50mm)or3.5"(90mm) JOST
CIMC container trailer is specially designed to carry various cargo containers. Cargo container trailer includes 20, 40, 45 foot and other types.
Container trailer chassis is dedicated to transporting containers. It contains two kinds of skeletal trailer for long distance transportation and terminal trailer for port transportation.
The intermodal trailers is specially used for the transportation of various containers such as 20, 40, 45, 48, and 53 feet. The best design scheme has a reasonable structure and reliable operation.

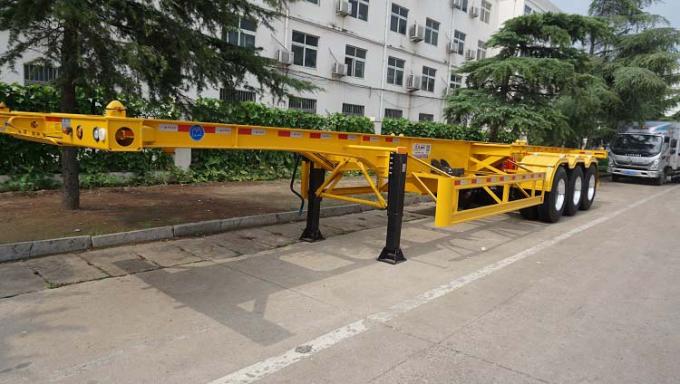

CIMC container chassis trailer

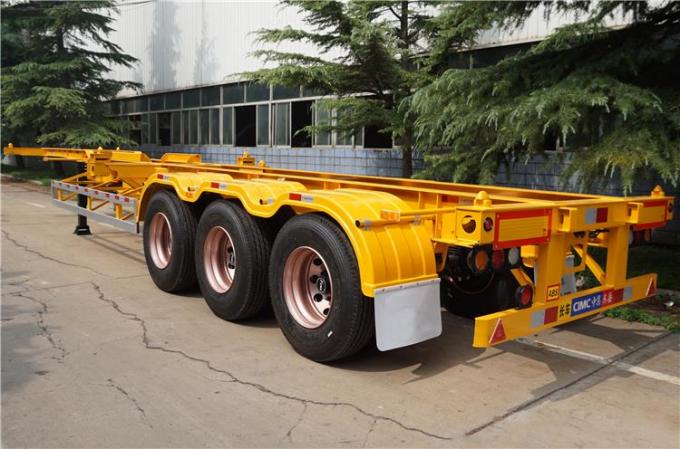

CIMC 3 axle intermodal chassis for sale

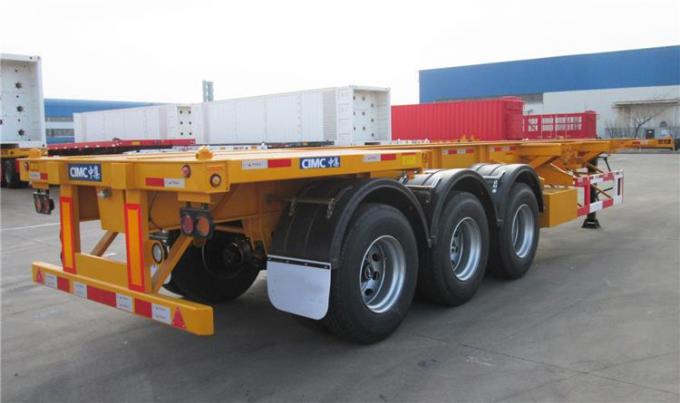

CIMC 40ft intermodal container chassis
1. The optional Jost landing leg, is a world recognized famous brand accessory Better bearing capacity and long service life.
2. Cargo container trailer braking system, effective braking, fast braking response, braking distance reduced by more than 5m.
3. Polyurethane paint, high adhesion, high chroma, beautiful color.
4. Able to custom-built design as your requirment,ensure to meet your local road regulation.
5. The 40 feet container trailer brake gas pipe of semi-trailer adopts high-pressure rubber gas pipe, with a service life of more than 10 years.
6. The whole intermodal trailer adopts LED lamps and lanterns, and a set of tail lamps and side lamps will be presented when the goods are delivered.
7. The suspension of the container chassis trailer is made of special high-strength rigid steel, 70mm center balance pin, Other factories use light suspension, the pin is only 45mm, the service life is short, it will cause abnormal wear.
Type | Intermodal trailers |
Overall dimensios | 12400x2500x1550 mm |
Loading weight | 30ton -50 ton |
Container twist lock | 8/12 pcs |
Main beam | Q345B steel |
Side beam | 16 U shaped steel or I shaped steel |
Axle brand | FUWA/BPW/CIMC brand |
Traction pin | 2” or 3.5” |
Landing gear | Standard 28 ton, brand optional |
Suspension system | Mechanical suspension, air suspension is optional |
Tire | 12.00R22.5 Triangle brand tires, others tires optional |
Brake | 6 big chamber brake system |
Tool box | 1 unit |
Side marker lamp | LED type |
Voltage | 24V |
