Size: By customer needs
Max payload: 40000kg
King pin: JOST brand 2.0"
Suspension: Mechanical Suspension or air bag suspenison

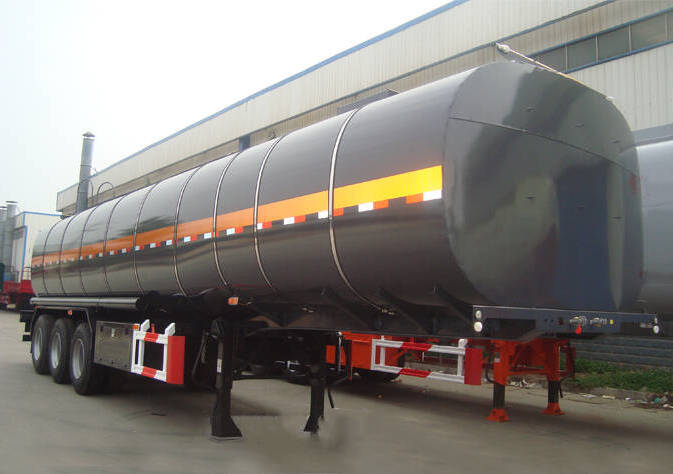

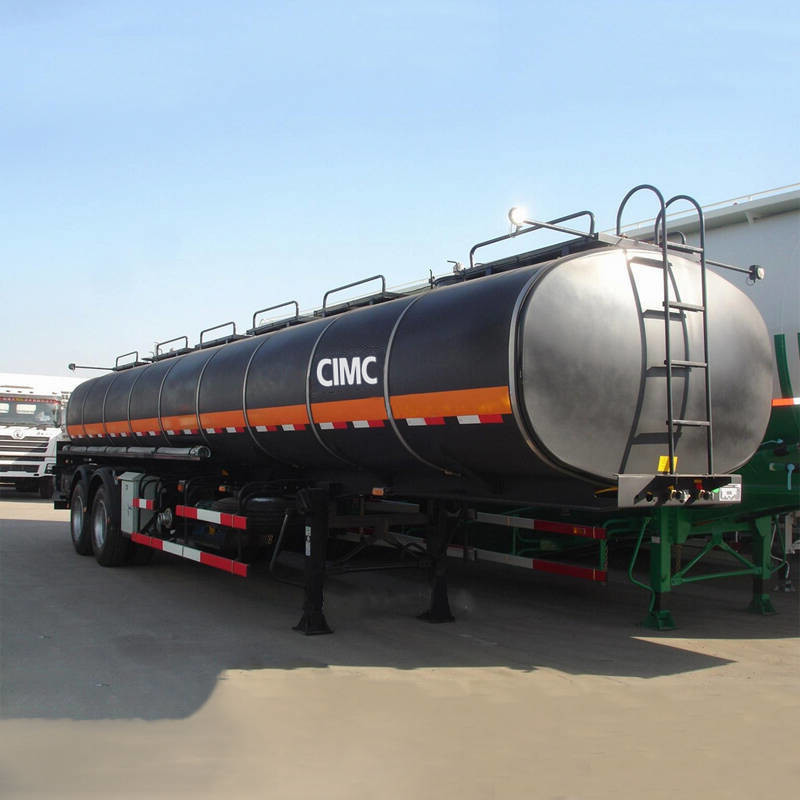

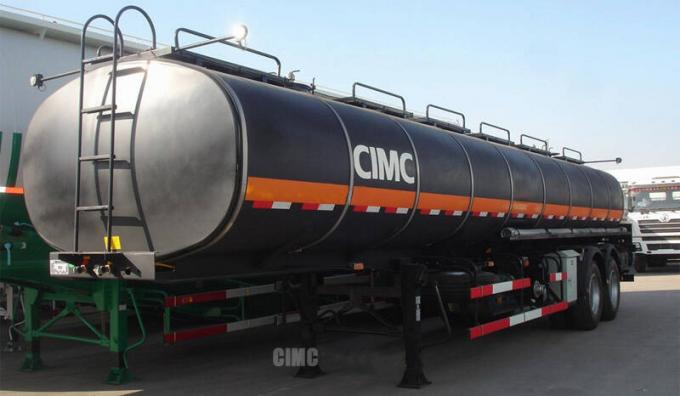

Bitumen storage tank trailers are designed to meet specific cargo needs and therefore, it is very important for you to understand what makes an Asphalt Tanker unique for transport the type of product it does.
A lot goes in the insulating properties of the bitumen storage tanks for sale to enable the transport of the product in the desired temperature. There are important checks needed during the loading, transportation and offloading of the product that must be done to ensure a successful process.
bitumen tank for sale
bitumen storage tanks for sale
Truck bed preparation: this should be done before loading the product. Cleaning and lubrication through the use of “release agents” must be done to keep off foreign particles.
Avoid aggregate segregation when loading your cargo. Asphalt mixes must be placed on the truck bed in a manner that does not enhance aggregate segregation. Dropping the product mix directly from the silo in one big batch creates one pile of asphalt/bitumen mix in the bitumen tanks bed.
Ensure you minimize heat loss. Asphalt cools when in transportation and this can adversely affect its characteristics on arriving at its destination and present challenges. To prevent such things as rain, air temperature, duration of length and wind from causing heat loss, insulated bitumen storage tank beds and tarps that cover the load should be put in place.
Aspalt on Transit. Planning for truck transit should be made in such a way that the transport rated in tons/hour closely matches the production rate and laywdown frequency of the plant.
Offloading Asphalt. Asphalt needs offloading immediately after it gets to the destination to minimize the colling.
There are a number of considerations to make when transporting asphalt. This is to make sure that the desired characteristics of the cargo are maintained throughout the transportation right from the production center to the desired destination.
| Overall dimension: | 11500mm * 2500mm *3700mm |
| Transport: | bitumen |
| Tank Capacity: | 38000 liters |
| Bottom valve: | Aluminum API pneumatic bottom valve |
| Axles: | 2/3 axles |
| Suspension: | Heavy duty mechanical suspension |
| Tire: | 8/12 units |
| Discharging Pipe: | 4'' rubber pipe, 6m/piece, 2 pieces |
| King pin: | 2/3.5 inch |
| Landing gear: | JOST |
| Brake system: | 2 line pneumatic brake system |
| Electrical system: | Chinese standard 24V; 7 ways receptacle; LED lamps |
