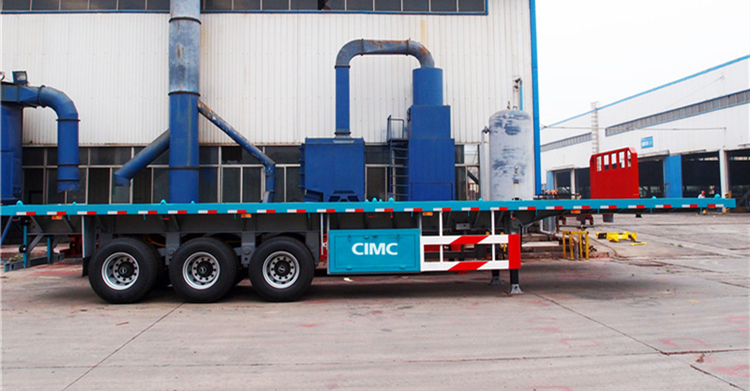

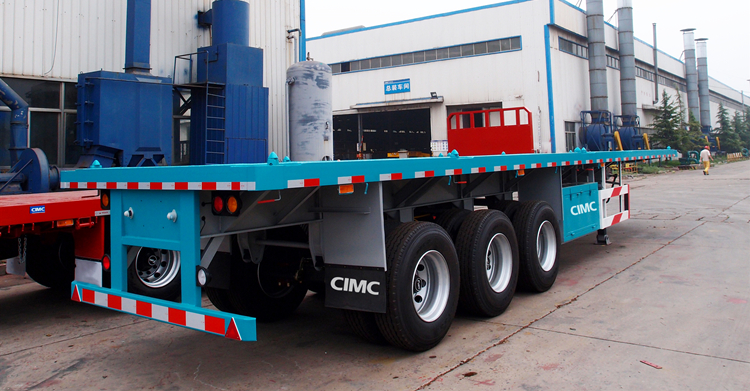

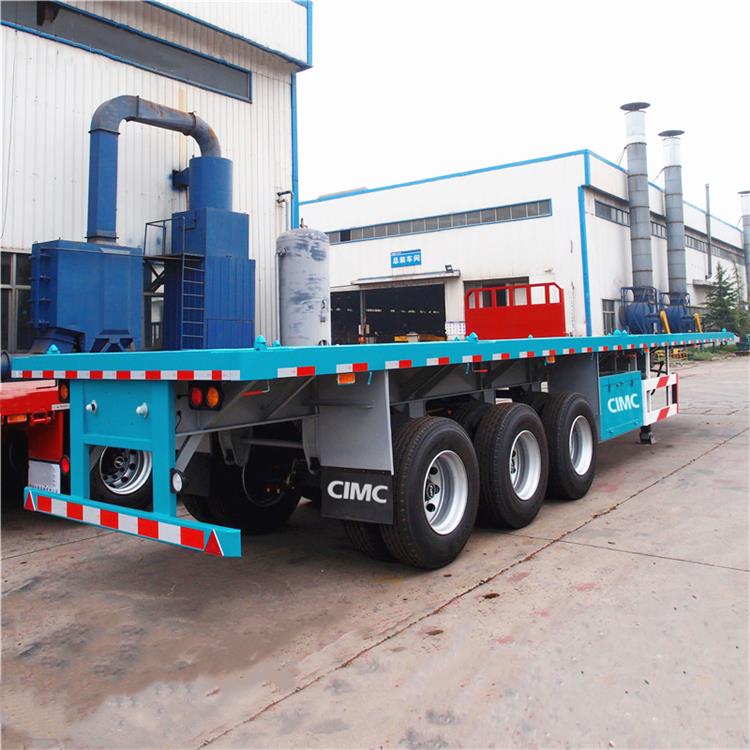

40FT Tri Axle Flatbed Trailer

Product Description:

CIMC flatbed semi trailer is usually used to transport 20ft or 40ft containers, they are mainly used for container transportation supporting ships, ports, shipping lanes, highways, transit stations, bridges, tunnels, and multimodal transport.

CIMC flatbed semi trailer can be customized according to customer needs.
Different options: 2 axles, 3 axles, 4 axles. 30T, 40T, 50T, 60T. Airbag suspension, spring steel suspension.

Container semi trailer

40Ft flatbed trailer

Specification:

Dimension(mm): 12500*2500*1530
Loading capacity(ton): 60-80T
Transport: 20ft, 40ft container
Axle: 3 axle,13T/16T, FUWA/BPW/CIMC/Other Brand
Tire: 12.00R22.5 or 315/80R22.5
Suspension: Mechanical suspension or Air suspension
King Pin: JOST brand 2.0 or 3.5 inch
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed）
Main Beam:Height: 500mm, Upper plate:14mm, Middle plate:8mm,
Brake System: WABCO RE 6 relay valve; T30/30 T30 spring brake chamber, 45L air tank
Valve: WABCO valve
Light: LED light
Electrical System: 24-volt lighting system
