Suspension: Mechanical / air / single point suspension
Landing gear: Heavy Duty Landing Gear
Loading capacity: 30T~80T according to your requestment
Braking system: WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks

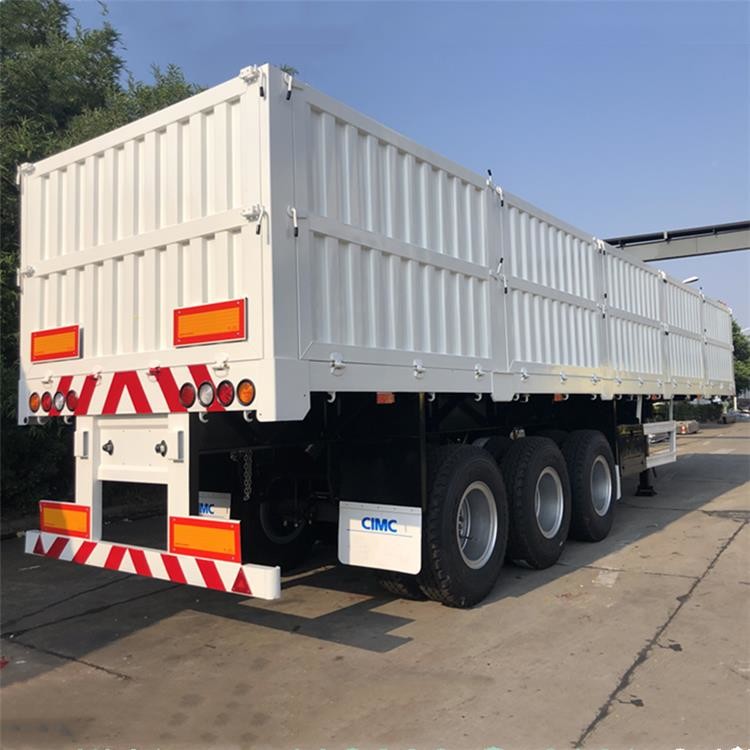

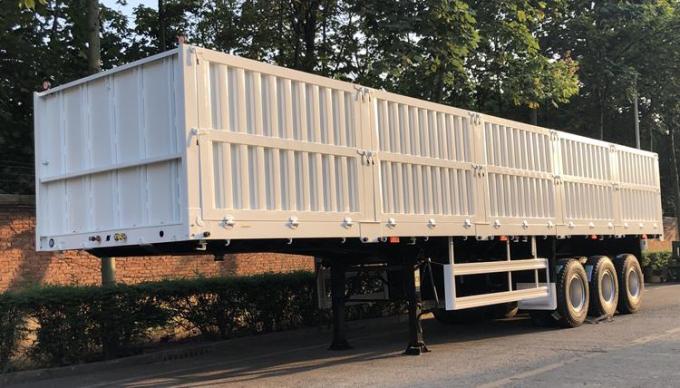

Cargo semi trailer for sale was popular by logistics companies as its multipurpose application.It use to load a wide range of products and materials, like sand, bags, poultry etc.
Also the some bulk cargo, very widely used in the transportation industry.The side wall flatbed trailer can be use to load the containers after adopt the contianer locks for it.
Cargo Semi Trailer Price
Side Wall Semi Trailer For Sale
Side Wall Trailer Price
1.There are a traction pin and a traction pin plate connected to the tractor under the front of the frame. The front cross beam of the frame is provided with an air brake connector and a wire connection socket. The front and side of the frame are equipped with lighting or signaling devices.
2.The frame is a space frame type low alloy steel welded structure.The frame is welded by two T-shaped longitudinal beams and beams to support the load.To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous brand.
3.Hight Quality side wall, make sure the stable and safety of the loads.Trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.
What should a drop side trailer driver do if the vehicle fails while braking?
1. Apply the rigid parts of the cargo semi trailer bumper and compartment to friction and collision with natural obstacles (rocks, trees or soil slopes) on the roadside, to achieve the purpose of forced parking and escape to minimize the accident losses.
2. Control the direction according to the road conditions and vehicle speed, and change the high-speed gear into the low-speed gear. In this way, there is a large traction resistance and the Side Wall Semi Trailer speed is rapidly reduced.
| Dimension | 12500mm*2500mm*2350mm(800mm sidewall) |
| Payload | 50-60ton |
| Container lock | 12 pcs |
| Axles | 3 axles, Fuwa/BPW /CIMC or other Chinese famous brand |
| Tire | 12 units |
| Brake system | WABCO brake system with dual brake chambers and emergency brake valve |
| Suspension | Mechanical / airbag / bogie suspension |
| King Pin | JOST brand 2.0 or 3.5 inch (bolted or welded) |
| Landing Gear | JOST brand |
| Accessories | Tool box , spare tire carrier |
