Brand :50 Ton Fence Cargo Truck Trailer
Payload:50 tons
Landing gear :JOST orequivalent with a lift capacity 28 tons
Kingpin :50(2inch)#or 90(3.5inch)# bolted type
Suspension:Mechanical

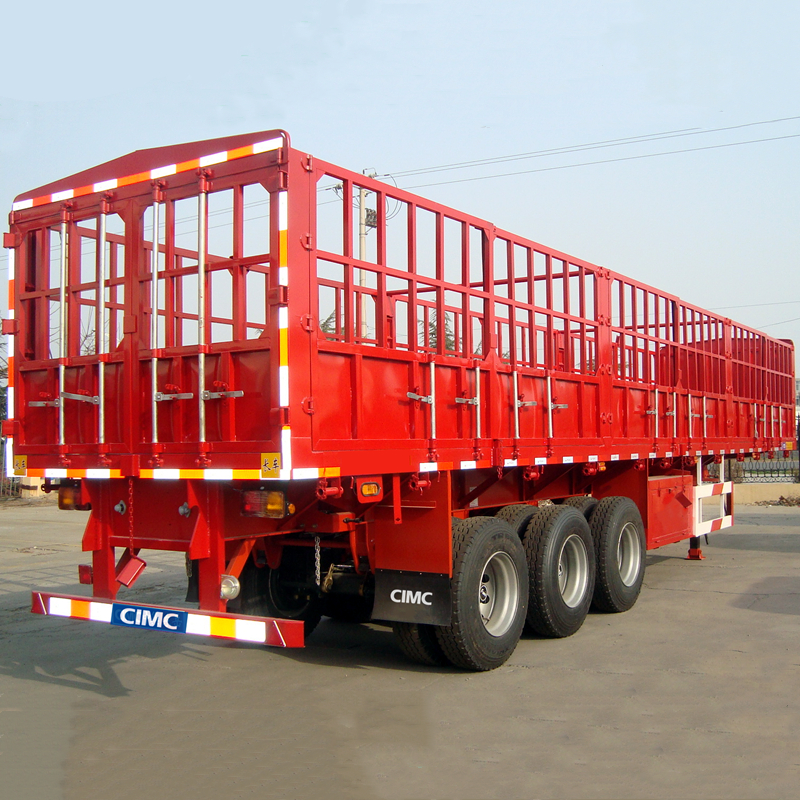

CIMC 50 ton fence cargo truck trailers are mainly used for long-distance transportation of heavy and bulk cargo. We also call it truck or sidewall Trailer.
The CIMC drop-side semi-trailer is made of high-strength steel Q345. The cargo side wall semi trailer- axle -40ft-12 lock is strong enough to carry more. Semi trailers can be loaded with stone, steel coil, salt bag, steel and other products.
The axle used for fence cargo truck trailer is FUWA or BPW axle and landing gear is JOSTC200. There are different options for tyres, nylon or radial tire, twin or single tire. We can also install container locks on the trailer, and then the trailers can also load containers.
L*W: 12500mm*2500mm
Sidewall Height: 1600mm
Max. Payload: <50T
Application: Coal/Cargo/Containers Loading
Material of the main beam : Q345 high strength steel
Bottom Platform: 3mm-5mm thick(according to the load capacity)
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Support leg: JOST brand
Suspension: Airbag / Mechanical / bogie suspension
Axles: FUWA/BPW/CIMC/other
Tires: 12.00R22.5/315 80R22.5(Specially designed and for oversea markets)
Brake System: WABCO
Electrical System: 24-volt lighting system
