Size: 12500mm*2500mm*3700mm
Material: Carbon steel
Suspension: Mechanical Suspension
King pin: 2"(50mm)or3.5"(90mm) JOST
CIMC water tank trailer with safety devices, the manhole is an explosion-proof large cover. After the tank collides and rolls, the manhole never open.
CIMC adopt famous brand parts for our water tank semi trailer, it save costs & ensure long-time service. Like JOST, WABCO braking valve etc. We use famous German WABCO braking valve will definitely shorten the Braking Distance. to make the safety of the trailers and the drivers.

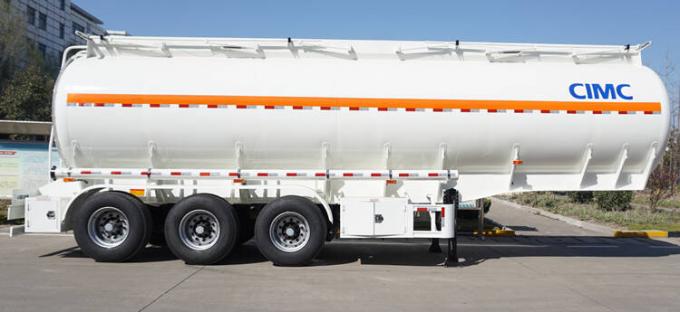

CIMC 45000 liters semi trailer fuel tank for sale

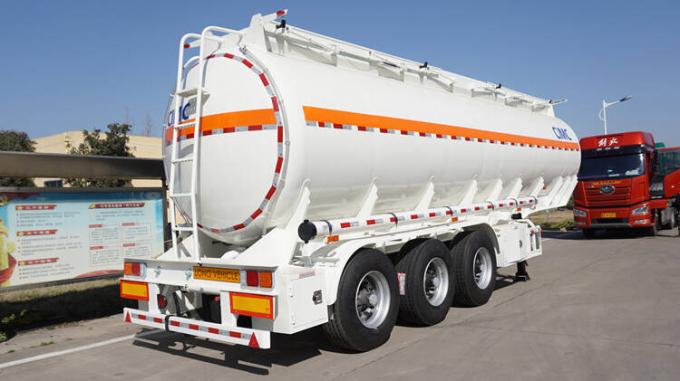

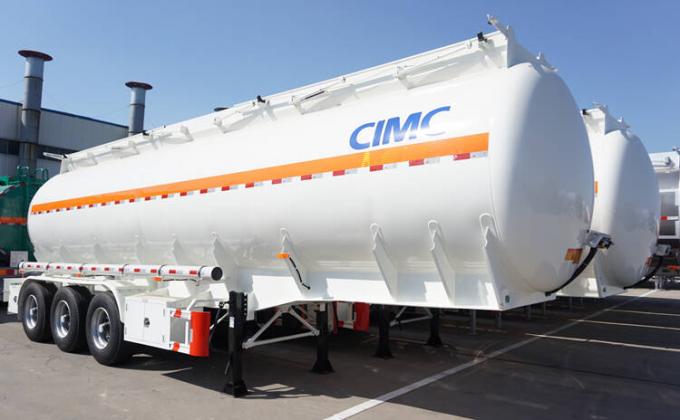

CIMC 3 axle 45cbm semi fuel tanks for sale

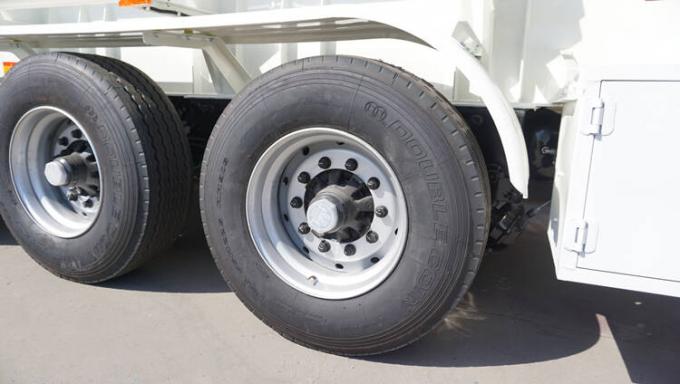

CIMC fuel tanker trailer axle and tire display
| Dimension | 12500mm*2500mm*3700mm |
| Volume | 45000liters |
| Application | transport Fuel, Oil, Diesel |
| Tank Body | |
| Material | Carbon steel |
| Tank body and separate compartment plate | 6mm |
| Compartments | 1 to 7 compartments, based on customer needs |
| Manhole cover | Aluminum alloy API manhole cover 500mm (diameter) |
| Discharge valve | Diameter is 3 or 4 inch |
| Chassis | |
| Axles | 3 units, FUWA/BPW/CIMC/other |
| Tire | 12 units, Brand can be optional |
| Landing Gear | JOST brand |
| King Pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
| Suspension | Mechanical suspension or air suspension |
| Brake System | WABCO |
How much of fuel do you want to transport in one trip? If it is just a small amount, you may not need a thick wall for your fuel tanker.
Whether it is a steel fuel tanker or aluminum one doesn’t matter. When it comes to the amount of fuel to be transported, the thickness of the tanker is the next factor to consider.
If you want to transport big amount of fuel, then remember that fuel tanker trailer with a large capacity need thicker material plate to work under pressure and most importantly, keep the tank safer.
