Price: 14900 USD
This 45000 liters fuel tanker trailer has a capacity of 45,000 liters. This material is carbon steel, ensure the safety of the tanker and increase the service life.
The best quality 45000 liters fuel tanker trailer for sale can realize the mechanization of loading, unloading, transportation and storage, which not only saves the labor force but also saves the packaging materials and the transportation cost. CIMC water tanker trailer axles can be Fuwa / BPW with different tonnages by your need with price differences. CIMC diesel tanker trailer is used for liquid cargo transportation, such as Gasoline, Diesel oil, Crude oil, Lubricating oil and other liquid cargo.
The volume varies of 45000 liters fuel tanker trailer widely from 10 cube meters to 70 cube meters, we can manufacture it according to your needs. The suspensions can be Air suspension, mechanic (leaf spring suspension), bogie suspension, etc. The diesel tanker for sale inside can be isolated compartments or single compartment by your needs.
45000 Liters Fuel Tanker Trailer Cost with Lower Price in Kenya Mombasa
45000 Liters Fuel Tanker Trailer Cost with Lower Price in Kenya Mombasa
45000 Liters Fuel Tanker Trailer Cost with Lower Price in Kenya Mombasa
Dimension: 12100mm*2500mm*3900mm (the exact size depends on the final design.)
Tare Weight (semi trailer): About 8000-12800kg
Total volume(m³): 45000 litres
Tank Body Material: 5mm or 6mm/Q235 carbon steel
End plate: 5mm or 6mm/Q235 carbon steel
Manhole Cover: Carton steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,12T/13T/16T,BPW/ FUWA
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.

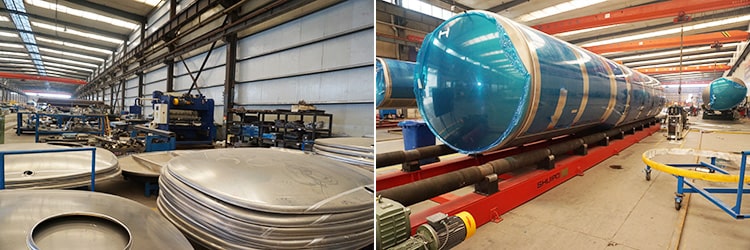

2. The tank body is automatically welded by an advanced large-scale special welding machine.
3. The CIMC tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.
4. Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.
6. The waved board reduces the impact of the liquid on the tanker.
7. Advanced paint system and polyurethane paint. Appearance is beautiful, use time is above 5 years.
8. We adopt famous brand parts for our tank trailer, it saves costs & ensures long-time service.
