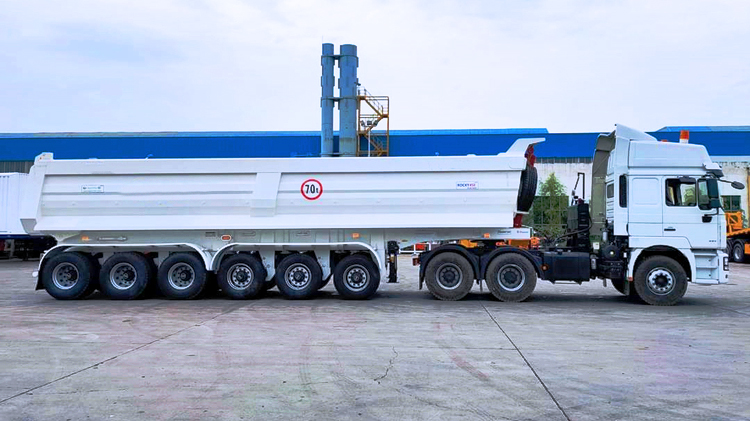

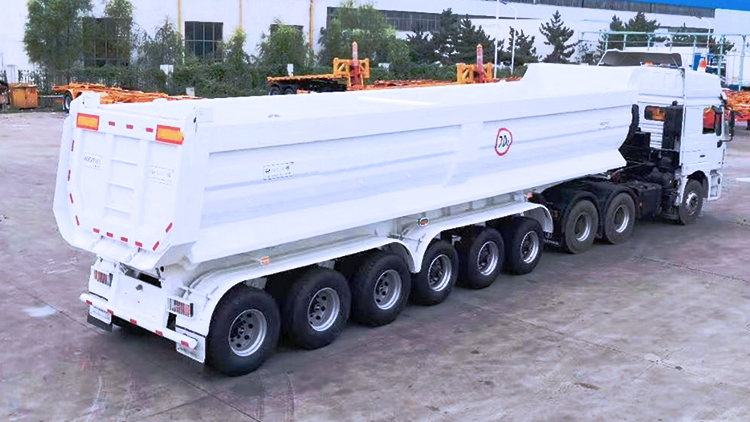

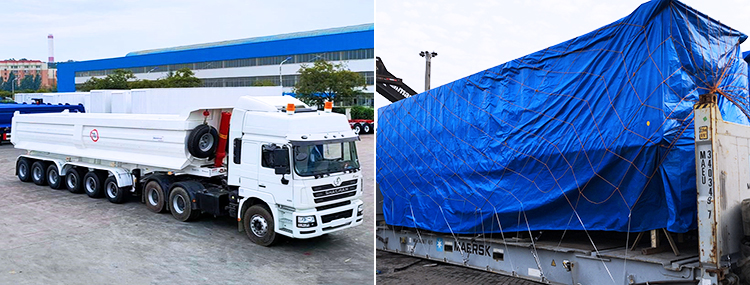

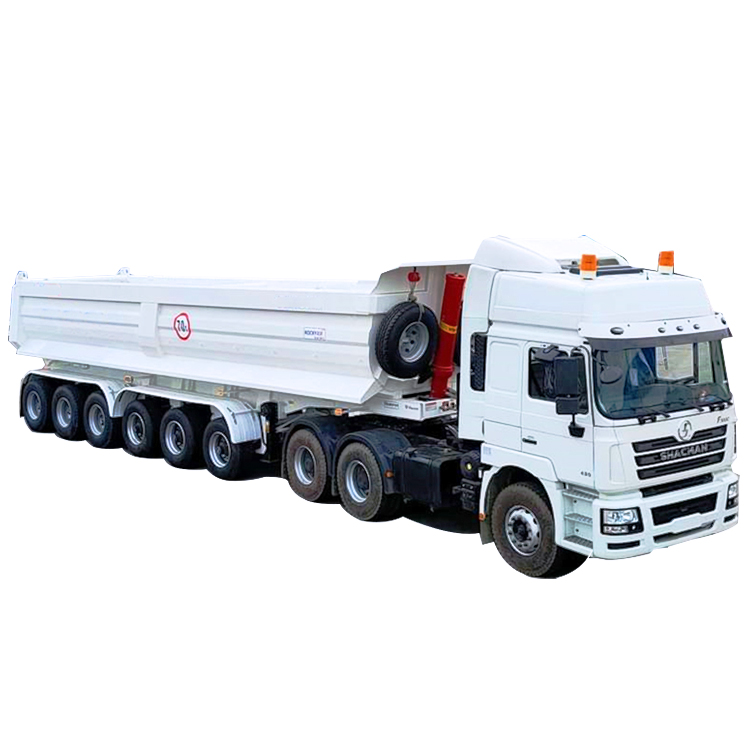

CIMC 6 Axle 100T Rear Semi Tipper Trailer

6 Axle 100T Rear Semi Tipper Trailer Description:

6 axle 100t rear semi tipper trailer adopts polyurethane paint with high adhesion, high chromogenic, beautiful color, and the cost is twice that of ordinary paint. The paint will not come off after five years. We can emphasize the weight of our trailers to our customers, weigh more weight and better carrying capacity.

6 Axle 100T Rear Semi Tipper Trailers for Sale with Lower Price Near Me in Ghana

6 Axle 100T Rear Semi Tipper Trailers for Sale with Lower Price Near Me in Ghana

6 Axle 100T Rear Semi Tipper Trailer Specification:

Dimension: 12000mm * 2600mm *1800mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume: 100 Ton

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

6 Axle 100T Rear Semi Tipper Trailer Advantages:

1. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

2. Double-plate main beam for tipper semi trailer, which has a stronger carrying capacity, it is not easy to damage.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. The leaf spring is widened and thickened, the shock absorption effect is good.

5. Strengthened Ribs, unique structure design to maximize the payload.
