CIMC 20 ft Container Carrier Flatbed Trailer

CIMC 20 ft Container Carrier Flatbed Trailer Description:

Description:

The striking feature with the dump 20 ft flatbed trailer is a mechanism that makes it easy to unload the container.There are apparatus added as modifications to the conventional flatbed trailer models further simplifying the process of offloading cargo from the container.

The hydraulic system mounted on the upper platform facilitates the offloading process causing the container to tilt upwards to offload cargo.It is definitely one of the safest means of offloading shipping containers.

With this dump 20 foot flatbed trailer for sale, no external equipment is required to unload cargo from the container.

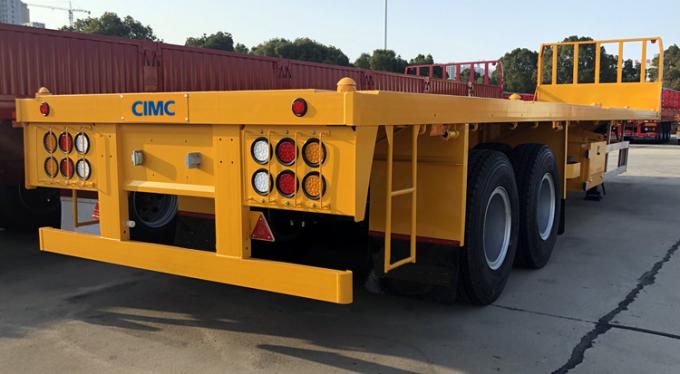

CIMC 3 axle 20 foot flatbed trailer for sale

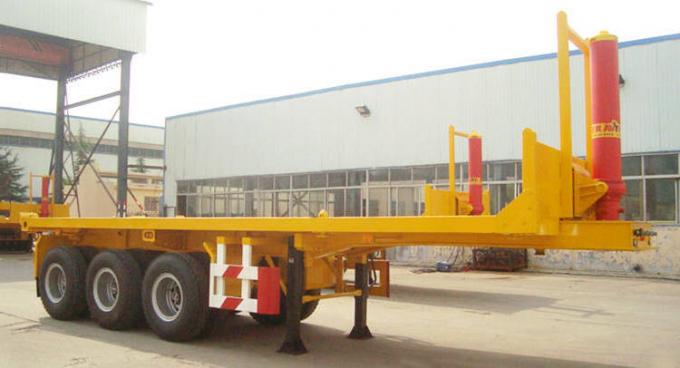

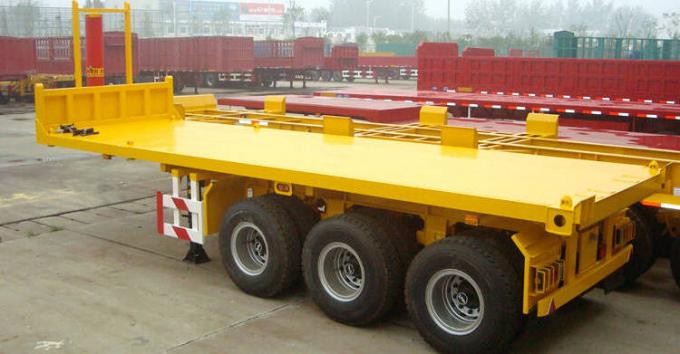

CIMC 20 ft flatbed trailer dump container trailer

Feature:

1. Flatbed dump trailer is a roller situated at the upper frame, some distance from the pivot device connecting it to the lower frame.

2. The pivotal drive on the upper frame translates to a change in the distance between the roller and the securement point of the cable in relation to the lower frame.

3. This results in the lift and movement of the loaded container without the need to search for external equipment such as a winch device to trigger the desired distance.

Application of tipper flatbed semi trailer:

This type of flatbed semi trailer offers an easy way of unloading cargo. To facilitate its unloading capabilities, the container tipper trailer come in a different structural design from other types of flatbed semi trailers.
Over and above the conventional horizontal platform for carrying the load, the dump flatbed trailer has both lower and upper frames attached to it via a pivot device. There is a hydraulic cylinder installed in it to raise the platform ready for transportation of the loaded cargo.

During the offloading process, the container is set to fall steadily through gravity. The container falls freely backwards once it is unlocked and loosed from the trailer’s top section.

It simplifies the loading process of containers It doesn’t necessarily need auxiliary equipment and systems for loading and unloading cargo from the platform. Operations can be done without using a crane.

Specification:
