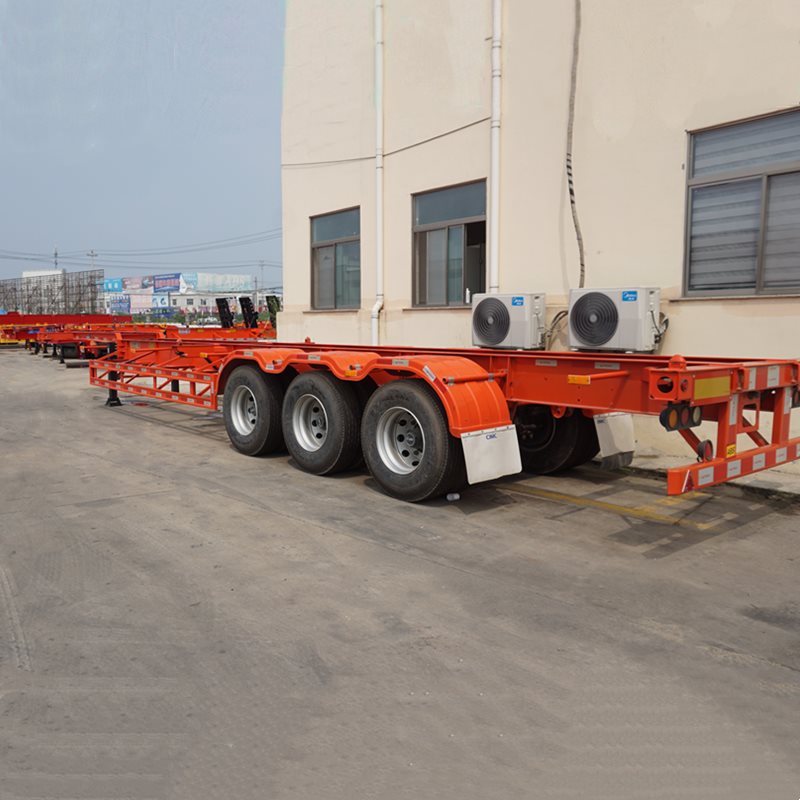

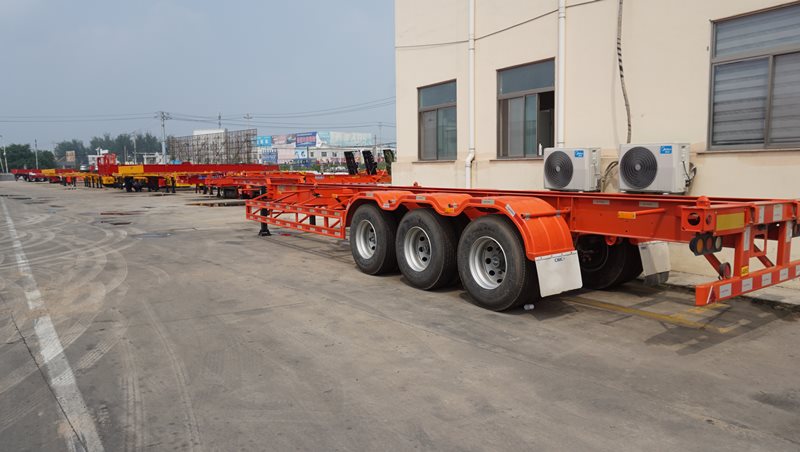

CIMC 3 Axle Skeleton Semi Trailer

CIMC 3 Axle Skeleton Semi Trailer Description:

Skeleton trailers, also called semiskel trailers, are lightweight semitrailers usually designed for transporting containers. They can be specified in a large number of size configurations, such as:

20-foot container, 30-foot container, 40-foot container, 45-foot container, ISO intermodal container. They will usually have between four and twelve container twist locks so that a driver can load a range of different configurations.

3 Axle Skeleton Semi Trailer

Advantages:

1. High tensile steel and bolted type king pin plate

2. Double brake chambers makes a performance braking effects

3. Light dead weight, strong frame structure

4. Container lock with secondary lock mechanism

Specification:

Load weight:40 tons ~70 tons

Axles: 3x13 tons / 14 tons / 15 tons /16tons / 20 tons

Tire:12R22.5

Landing gear: JOST

Kingpin: 50(2inch)#or 90(3.5inch)# bolted type

Suspension: Airbag / Mechanical / bogie suspenion

Brake system: WABCO

Electric system: 24V / 12V + LED lights

Accessory: spare tire carrie + tool box

Remark: we can supply different specification for different road condition
