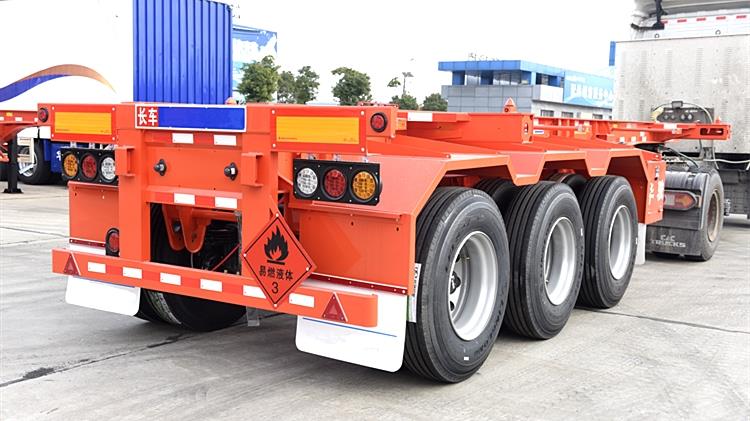

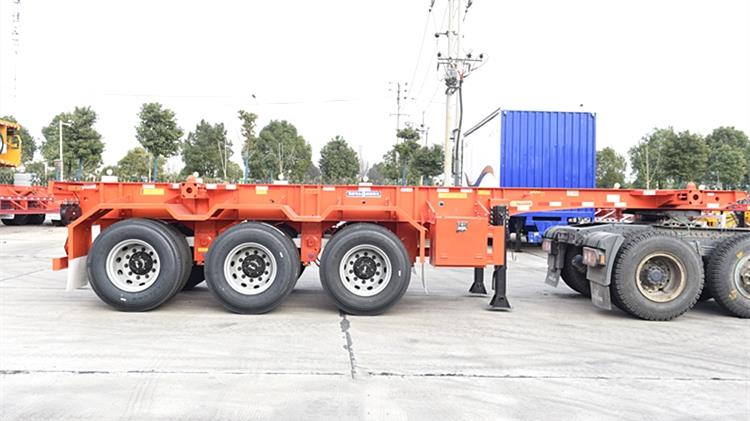

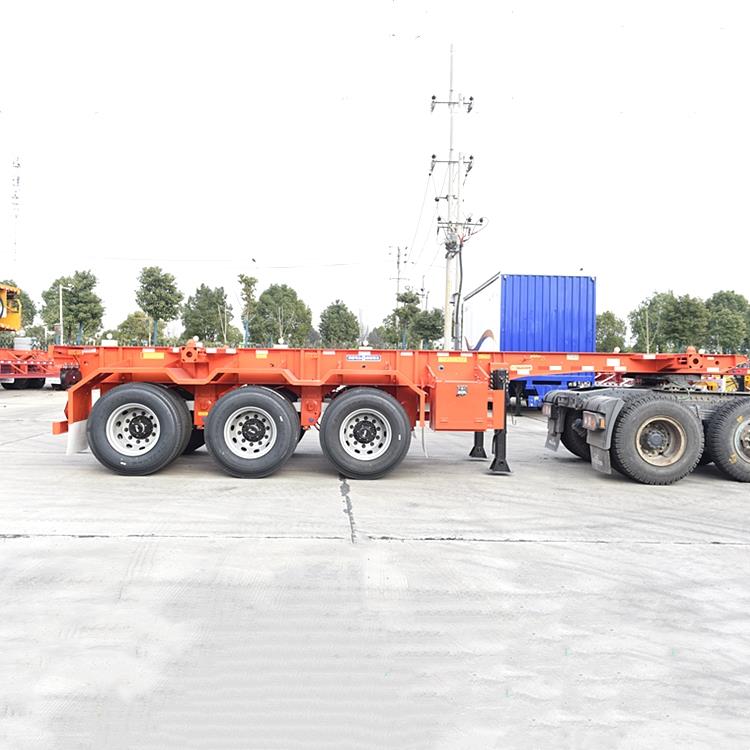

Type: CIMC 40ft Skeleton Trailer for sale
Loading capacity: 30-60 Ton
Application: to carry 20ft 40ft container
Trailer type: container chassis
Material: high strength carbon steel material
Skeleton trailers are also provided. The front and rear axle sleeves and steering trolleys can be used for steering.
For professional applications, they can have sliding bogies that help reduce weight, they can have hydraulic suspension with adjustable ride height, and can even be automatically unloaded or extended.
Overall L*W*H: 12360*2500*1550mm
Load weight:40 tons ~70 tons
Axles: 3x13 tons / 14 tons / 15 tons /16tons / 20 tons
Tire:12R22.5
Landing gear: JOST
Kingpin: 50(2inch)#or 90(3.5inch)# bolted type
Suspension: Airbag / Mechanical / bogie suspenion
Brake system: Wabco
Electric system: 24V / 12V + LED lights
Accessory: spare tire carrie + tool box
Remark: we can supply different specification for different road condition
