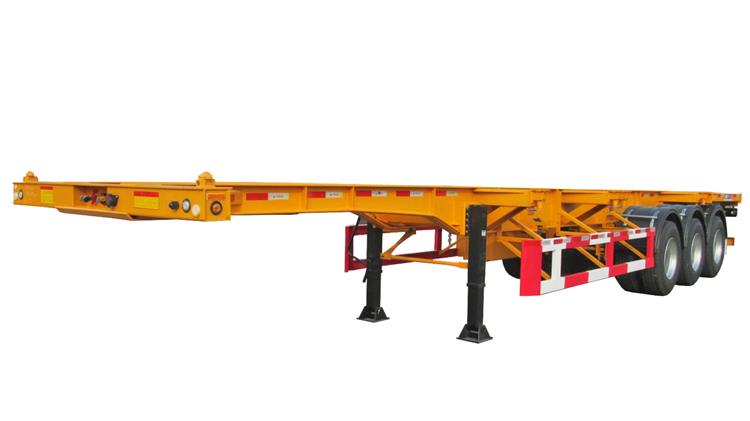

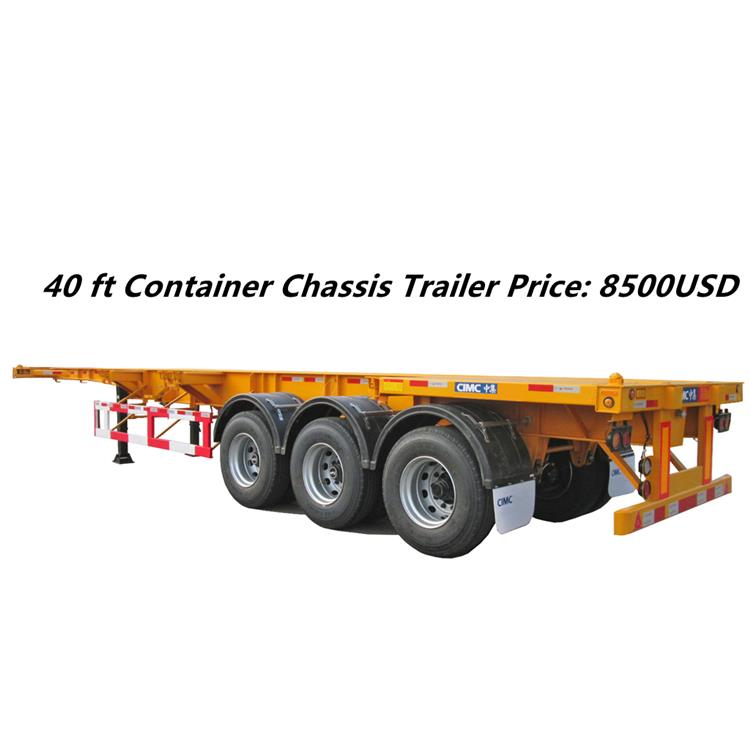

CIMC 40 ft skeletal semi trailer possesses a long service life even under the tough conditions which a semi-trailer container chassis has to face on a daily basis.

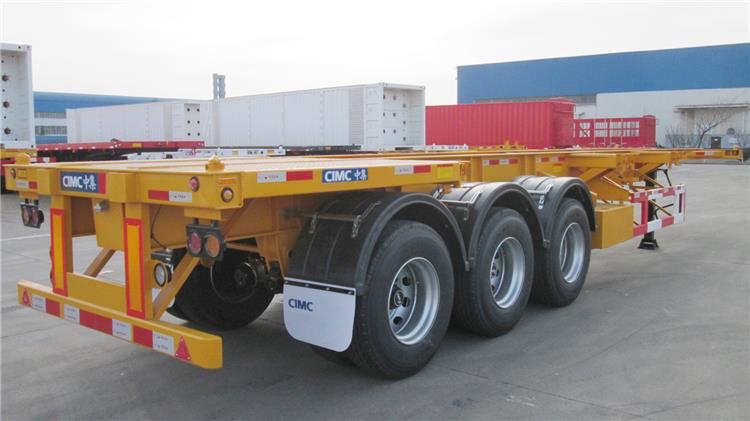

CIMC skeletal semi trailer is used to transport containers, and container chassis trailers have different shapes and sizes. CIMC skeletal semi trailer are designed for maritime container and sea freight transport tasks and combine both safe and rapid container handling.
CIMC 40 ft Skeletal Semi Trailer for Sale In Madagascar
CIMC 40 ft Skeletal Semi Trailer for Sale In Madagascar

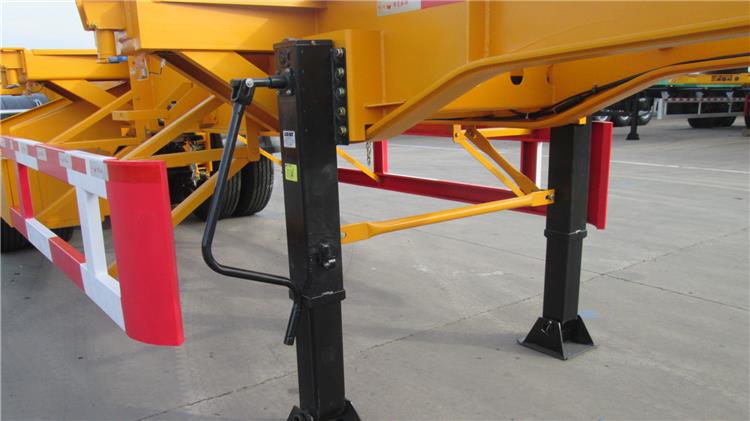

CIMC skeletal semi trailer lading gear adopts triangle reinforcement,which can effectively prevent the landing gear left and right tilt of outrigger and prolong its service life.
CIMC skeletal semi trailer is made of Q345 high strength steel,who has more loading capacity.

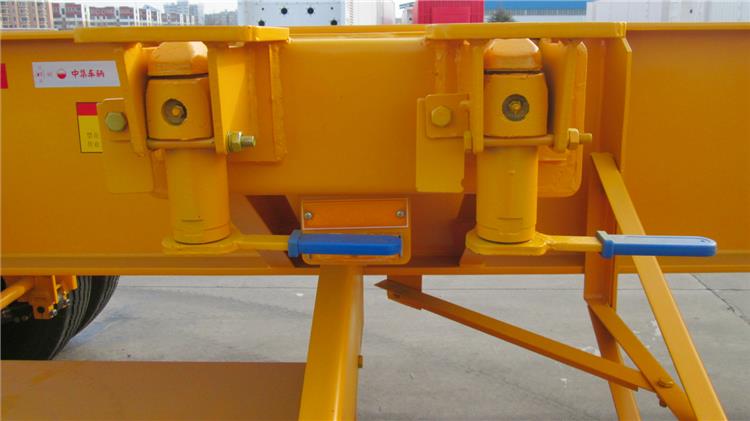

CIMC 40ft skeletal semi trailer uses 12 container locks to fix the container.

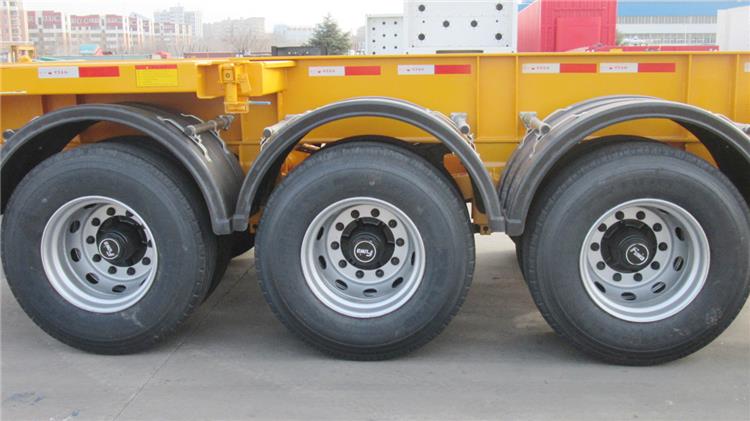

CIMC skeletal semi trailer use 12R22.5 tire with 12 pcs

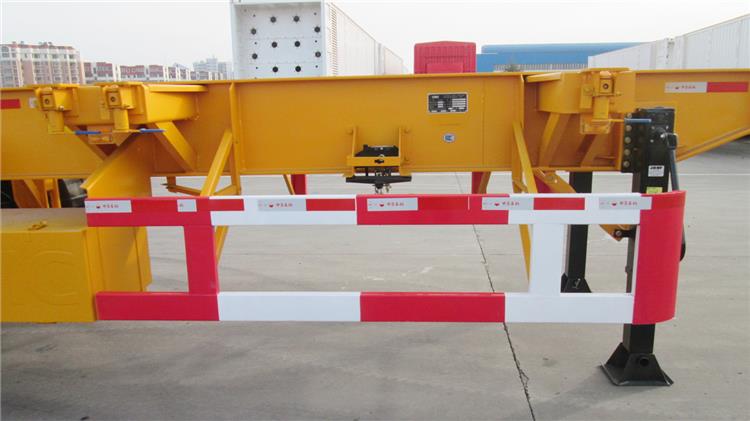

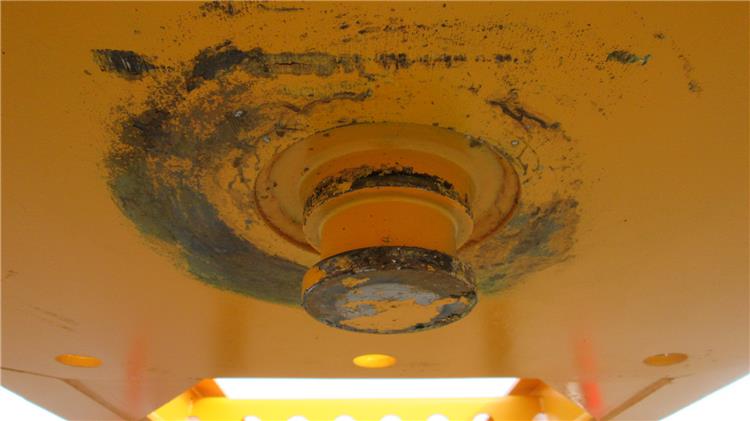

CIMC 40ft skeletal semi trailer reinforces the main beam. As for the gooseneck parts of the main beam. The bottom plate of the gooseneck part also be reinforced by a double plate.CIMC 40ft skeletal trailer Kingpin can choose 50or 90 bolted type
Overall L*W*H: 12400*2500*1550mm
Load weight:40 tons ~70 tons
Axles: 3x13 tons / 14 tons / 15 tons /16tons / 20 tons
Tire:12R22.5
Landing gear: JOST
Kingpin: 50(2inch)#or 90(3.5inch)# bolted type
Suspension: Airbag / Mechanical / bogie suspenion
Brake system: Wabco
Electric system: 24V / 12V + LED lights
Accessory: spare tire carrier + tool box
Remark: we can supply different specifications for different road conditions
