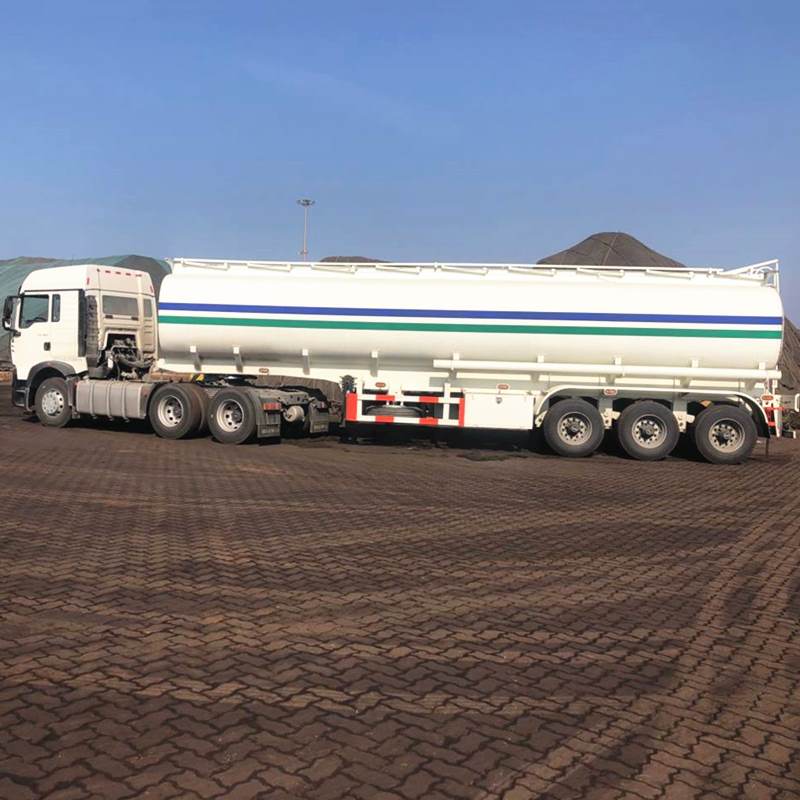

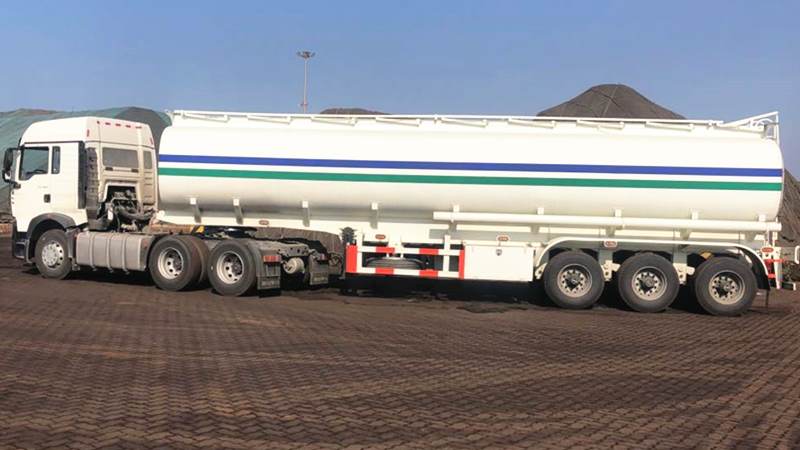

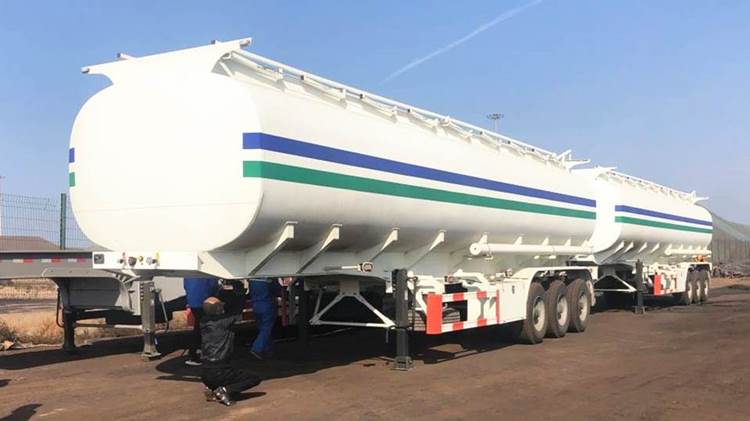

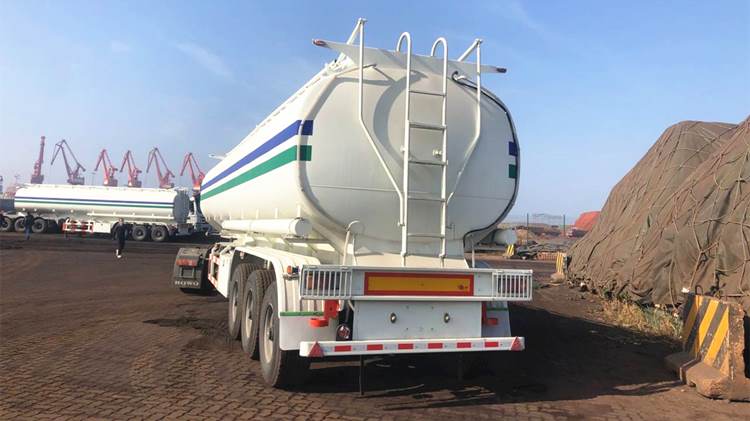

CIMC 3 Axle Truck Fuel Road Tanker Trailer

CIMC 3 Axle Truck Fuel Road Tanker Trailer Description:

CIMC mainly provides different types of diesel tank trailers for the transport of fuel, diesel, water and any other liquid materials, one of which is the type of diesel trailer .

CIMC diesel tank trailer can reach 90000 liters and 4 axle. The CIMC Diesel tank trailer can provide 1-7 cabins of diesel fuel trailer for sale, which can be produced according to customer requirements.

CIMC pays attention to the quality of products, the liquid will produce great tension and impact in the course of transportation, so the CIMC diesel fuel trailer for sale must be thick and solid, welded joints without defects, our tank trailer thickness is up to 6mm.

CIMC 3 Axle Truck Fuel Road Tanker Trailer

CIMC 3 Axle Truck Fuel Road Tanker Trailer

Specification:

Dimension: 11000mm*2500mm*3700mm(the exact size depends on the final design)

Volume: 40000liters

Application:  transport Fuel, Oil, Diesel

Tank body:

Material: Carbon steel

Tank body and separate compartment plate:  6mm

Compartments: 1 to 7 compartments, based on customer needs

Manhole cover: Carton steel or Aluminum alloy API manhole cover 500mm (diameter)

Discharge valve: Diameter is 3 or 4 inch

Bottom valve: Aluminum  API Pneumatic Bottom Valve

Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment

Chassis:

Axles: 3 units, FUWA/BPW/CIMC/other

Landing Gear: JOST brand

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Suspension: Mechanical suspension or air suspension

Brake System: WABCO

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
