capacity: 3 Axle Stainless Steel Tanker Trailer
design standards: ADR
tank body material: Stainless steel
tire:12R22.5, 12 wheel
brand: CIMC

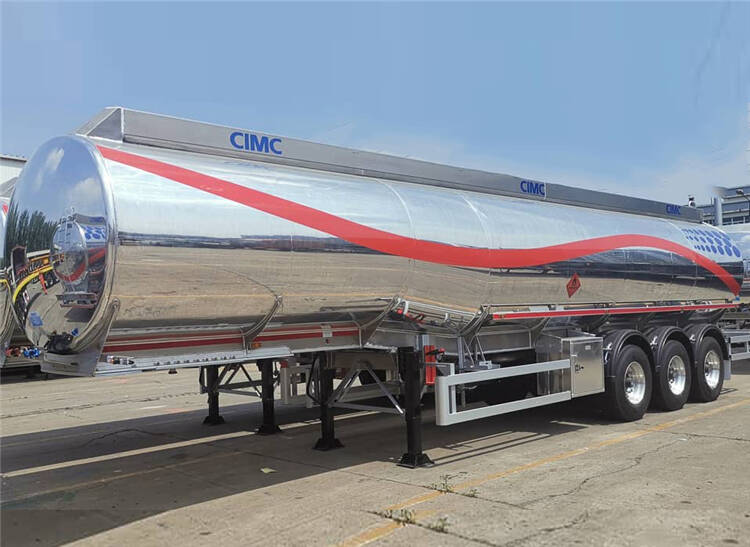

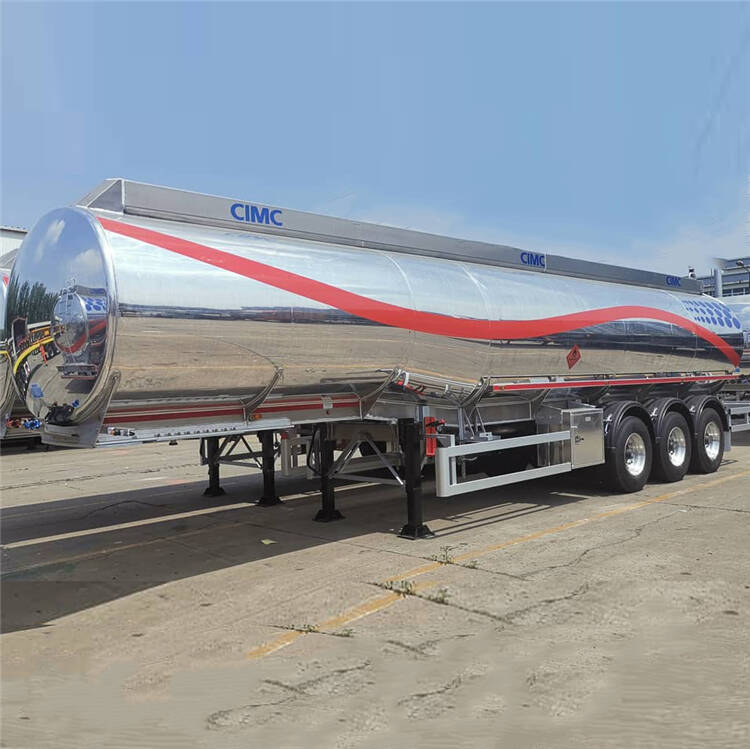

CIMC 3 Axle Stainless Steel Tanker Trailer is ideally designed in accordance with ADR for the transport of diesel, gasoline, kerosene or part of chemicals like sulphuric acid. Our fuel transport trailer with good mechanical properties, reliable welding, high strength and lightweight. Aluminum alloy explosion-proof manhole covers, non-slip paint, aluminum alloy folding guardrail integral side protective and control toolbox.
CIMC 3 Axle Stainless Steel Tanker Trailer featured with minimal seams maximum strength. Its tank body is made of the widest sheet material.
CIMC 3 Axle Stainless Steel Tanker Trailer for Sale In Mauritania Nouakchott
Dimension: 12100mm*2500mm*3900mm(the exact size depends on the final design)
Volume: 40000liters
Application: transport Fuel, Oil, Diesel
Tank body:
Material: Stainless steel
Tank body and separate compartment plate: 6mm
Compartments: 1 to 7 compartments, based on customer needs
Manhole cover: Aluminum alloy API manhole cover 500mm (diameter)
Discharge valve: Diameter is 3 or 4 inch
Bottom valve: Aluminum API Pneumatic Bottom Valve
Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment
Chassis:
Axles: 3 units, FUWA/BPW/CIMC/other
Landing Gear: JOST brand
King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Suspension: Mechanical suspension or air suspension
Brake System: WABCO
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
