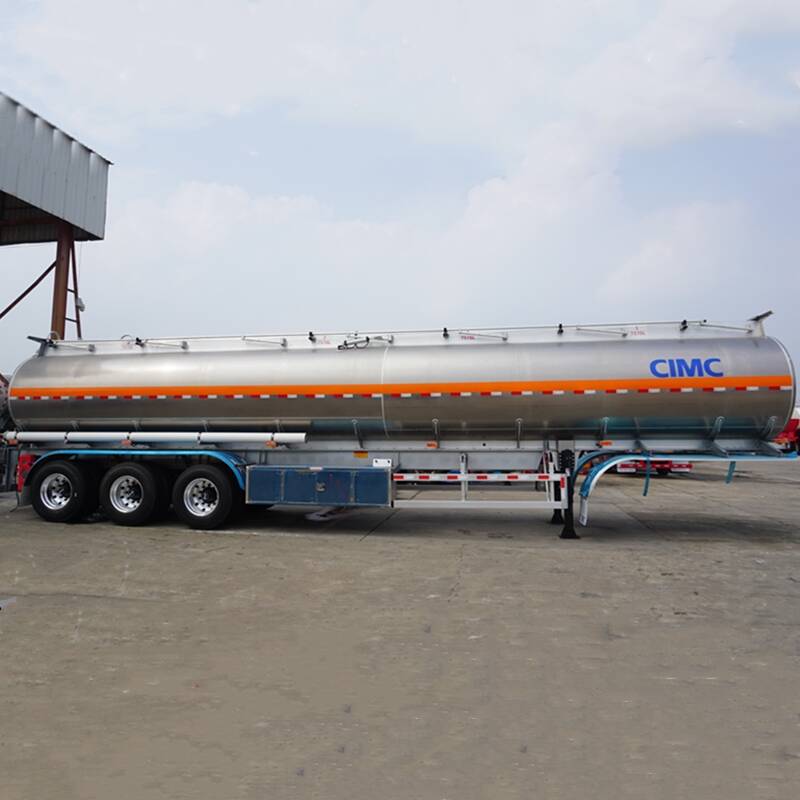

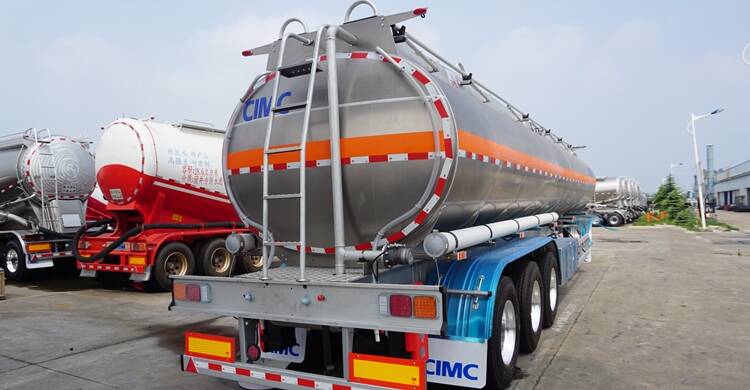

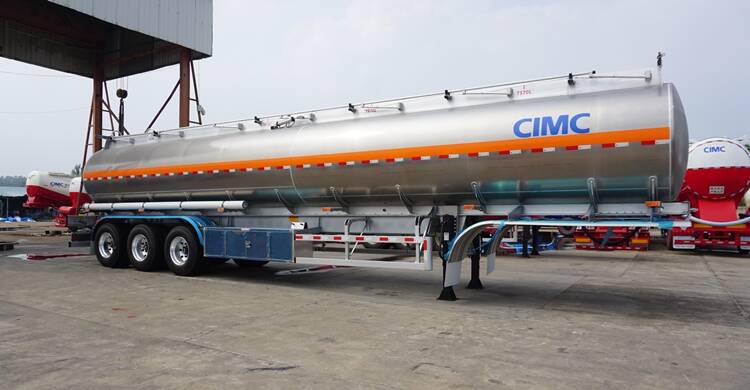

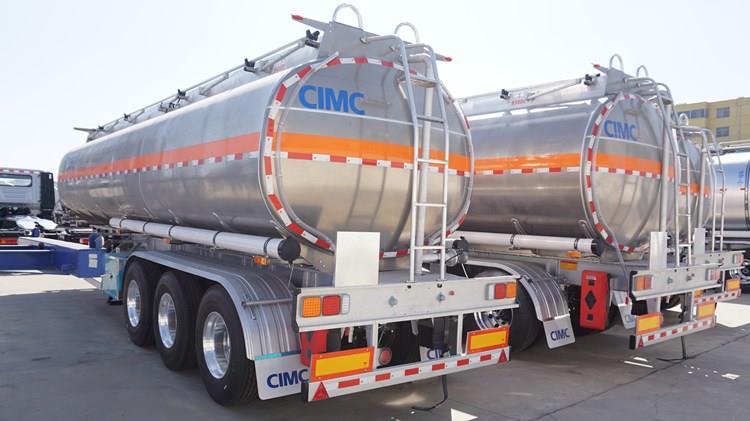

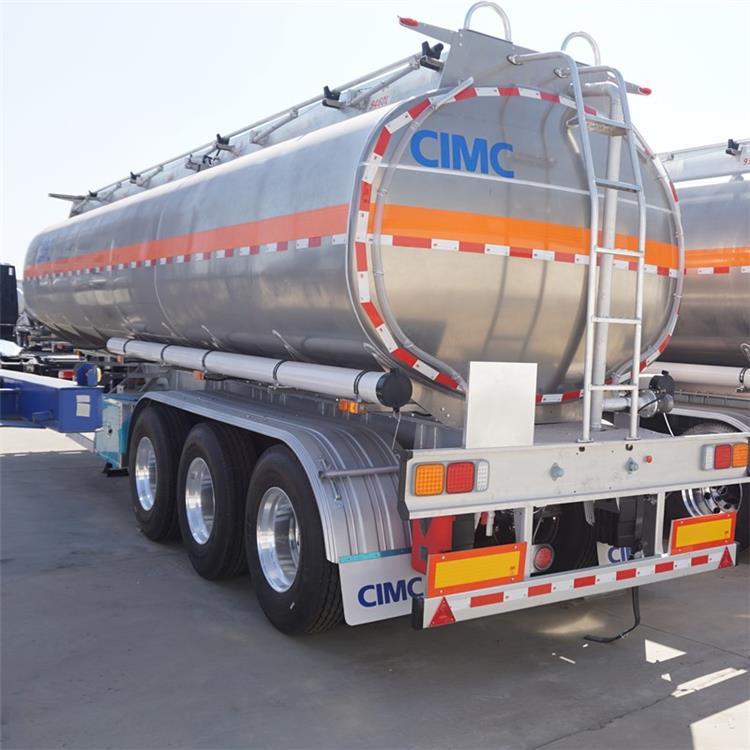

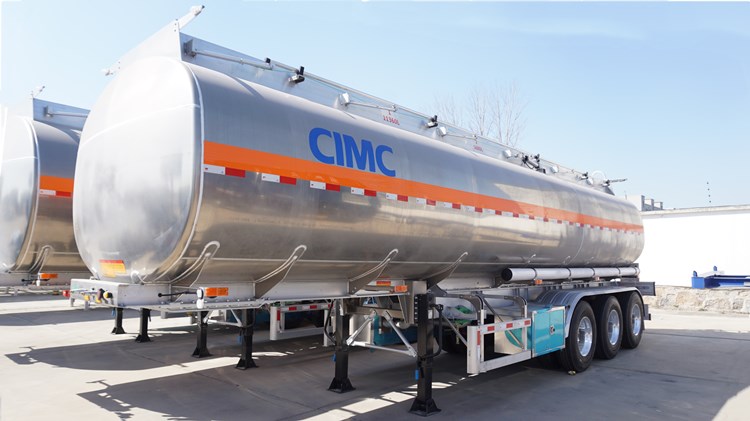

CIMC Fuel Tanker Trailer of Aluminium

Product Description:

CIMC mainly provides different types of Aluminum Tanker Trailer for the transport of fuel, diesel, water and any other liquid materials, one of which is the type of Monoblock Trailer.

CIMC aluminum tanker trailer can reach 90000 liters and 4 axle. The aluminum tanker trailer can provide 1-7 cabins of tanker trailers, which can be produced according to customer requirements.

CIMC pays attention to the quality of products, the liquid will produce great tension and impact in the course of transportation, so the CIMC Monoblock Trailer must be thick and solid, welded joints without defects, our Aluminum Tanker Trailer thickness is up to 6mm.

Aluminium Fuel Tanker Trailer for Sale

Fuel Tanker Trailer of Aluminium

Specification:

Dimension: 11500mm*2500mm*3700mm(the exact size depends on the final design)

Volume: 42,000 liters

Application:  transport Fuel, Oil, Diesel

Tank body:

Material: Aluminum alloy

Tank body and separate compartment plate:  6mm

Compartments: 1 to 7 compartments, based on customer needs

Manhole cover: Aluminum alloy API manhole cover 500mm (diameter)

Discharge valve: Diameter is 3 or 4 inch

Bottom valve: Aluminum  API Pneumatic Bottom Valve

Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment

Chassis:

Axles: 3 units, FUWA/BPW/CIMC/other

Landing Gear: JOST brand

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Suspension: Mechanical suspension or air suspension

Brake System: WABCO

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
