Size: 10000*2500 *4000mm
Max payload: 30-50T
Suspension: Mechanical / Air Suspension
King pin: 2"(50mm)or3.5"(90mm) JOST
CIMC dry bulk tanker adopts laser cutting, which can improve the precision to 0.01mm. The mirror cut is formed at one time, which can reduce the hot melt area of the cutting as much as possible, so that the steel plate elements are unchanged, the rigidity will not be lost and the stress concentration will not occur.
Pneumatic tanker trailer is controlled by an automatic numerical control plate rolling machine, the cylinder body is formed at one time, the inside of the plate will not be damaged, and the forming quality is stable and reliable.
30cbm Bulk Cement Tanker for Sale

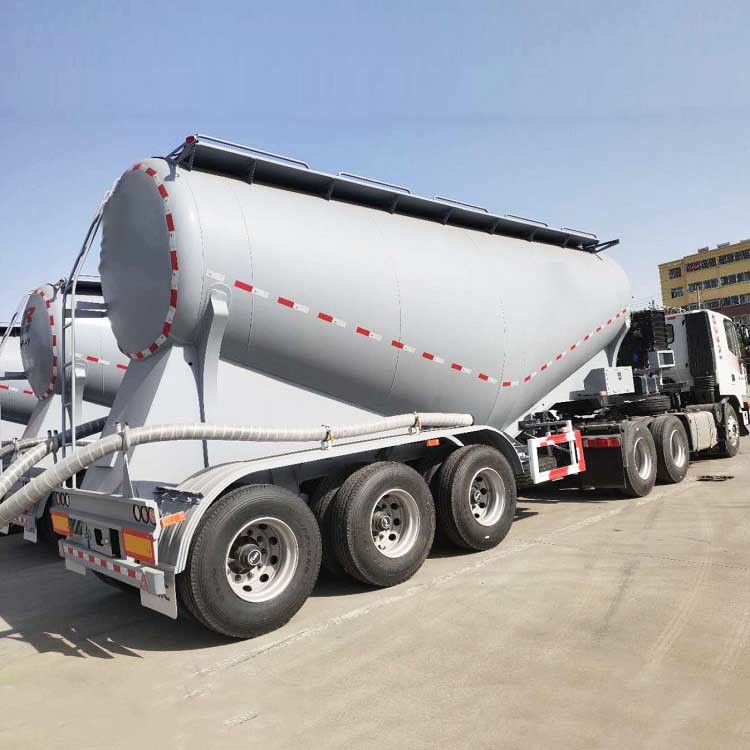

CIMC pneumatic tanker trailer
CIMC dry bulk tanker trailer for sale
(1) After the dry bulk tanker reaches the destination, park the bulk cement tanker trailer at the corresponding position of the storage tower, ensure that the discharge hose is level with the storage joint of the storage tower, and connect the quick connector of the discharge hose to the transport pipeline joint of the storage tower, Tighten firmly.
(2) Check whether the manhole cover is tightly closed; close the tank top pressure relief valve, secondary blow valve, and discharge valve; check whether the front and rear intake valves are open.
(3) Start the pneumatic tanker trailer diesel engine or power take-off of the power plant to drive the air compressor so that the speed of the air compressor reaches the rated speed (about 900 rpm) to inflate the tank.
(4) When the pressure gauge drops to 0.02MPa to 0, cut off the power, stop the operation of the air compressor, close the secondary blow valve and the discharge valve, open the tank top pressure relief valve, and the discharge is completed.
| Dimension: | 10000*2500 *4000mm |
| Tank Body | |
| Tank thickness | 4 mm |
| Front & end plate | 4 mm |
| Tank rated pressure | 0.2Mpa |
| Discharging System | |
| Diesel Engine | Model 4102 Diesel |
| Air Compressor | 12 m³ one unit double cylinders compressor |
| Discharging valve | 4 inch butterfly valve |
| Discharging pipe | 1pcs, 6m/each |
| Manholes | 2 pcs |
| Trailer Chassis | |
| Main Beam | Welded design, |
| Axles | 3 axles |
| Landing gear | 28T |
| Kin pin | 3.5 inch high tensile bolt-in king pin |
| Suspension | Mechanical suspension with 10 layers leaf spring |
| Tire | 12.00R22.5 , |
| Braking system | WABCO emergency valve; |
| Electrical system | Voltage: 24V |
| Tool box & tire carrier | One tool box , 2 pieces tire carrier |
| Light & reflector | Rear light, rear reflector, turn indicative light, side reflector,fog lamp,number plate light |
