Fuel Dolly Drawbar Tanker Trailers

Fuel Dolly Drawbar Tanker Trailers

14500 USD

Product type:Fuel dolly drawbar tanker trailers
Tank Capacity :20000 liters
Suspension :Mechanical suspension, Air suspension
Manhole Cover:Stainless steel manhole,diameter 500 mm
Bottom Valve:Stainless steel bottom valve

SKU: Fuel Dolly Drawbar Tanker Trailers
GTIN: 6975766102616
MPN: ZJV9504155
Brand: CIMC

Fuel tanker trailer manufacturers fuel drawbar tank semi trailer | CIMC TRAILERS

CIMC Fuel drawbar tanker trailers Major parts and components of the trailer are processed by advanced equipment. Longitudinal beams are finished by automatic tracking submerged arc welding machine; all the sub-assemblies are shot-blasted to improve paint adhesiveness and are painted before assembling.

To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.Our Axle of fuel tanker trailer adopt High performance domestic and imported axles with ABS system optionally available can significantly increase driving safety. High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.and with Large capacity water-proof detachable tool box. The finished chassis offers bending and deforming resistance with proper rigidity and strength. Tested and proven structure of cargo box is constructed with profiled steel from, corrugated plate and mold pressed steel stake.Reliable dual circuit air brake with quick release valve and quick repines of wheel cylinder ensures safe on-road and off-road operation.

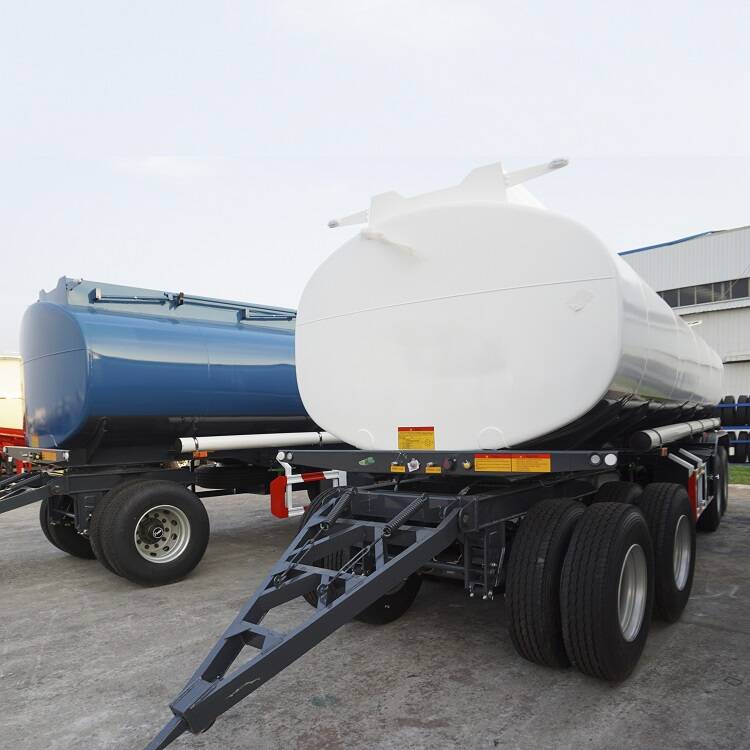

Details of CIMC 20000 liters Fuel dolly drawbar tanker trailers

CIMC Fuel tanker trailer manufacturers

CIMC fuel drawbar tank trailer


Specification- CIMC Fuel Tanker Trailer

Dimension: 9500mm*2500mm*3700mm(the exact size depends on the final design)

Volume: 20000liters

Application:  transport Fuel, Oil, Diesel

Tank body:

Material: Carbon steel

Tank body and separate compartment plate:  6mm

Compartments: 1 to 7 compartments, based on customer needs

Manhole cover: Carton steel or Aluminum alloy API manhole cover 500mm (diameter)

Discharge valve: Diameter is 3 or 4 inch

Bottom valve: Aluminum  API Pneumatic Bottom Valve

Tanker body test: Hydrostatic test to 5 psi (35 Kpa) on each compartment


Axles: 3 units, FUWA/BPW/CIMC/other

Landing Gear: JOST brand

King Pin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Suspension: Mechanical suspension or air suspension

Brake System: WABCO

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
