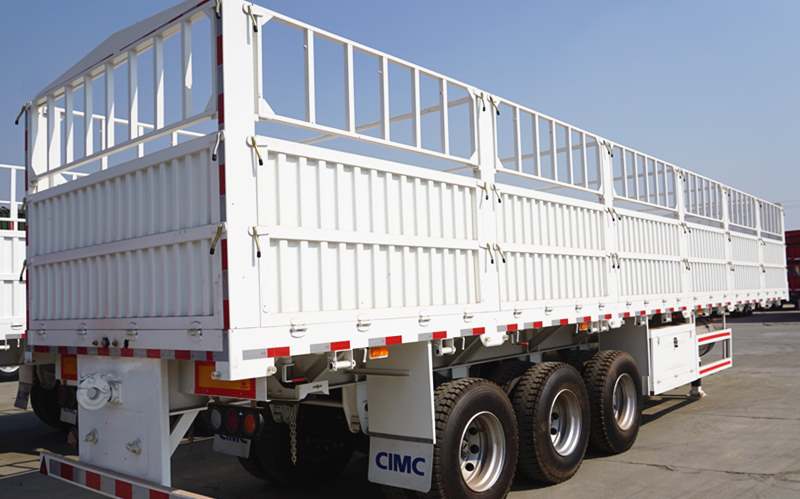

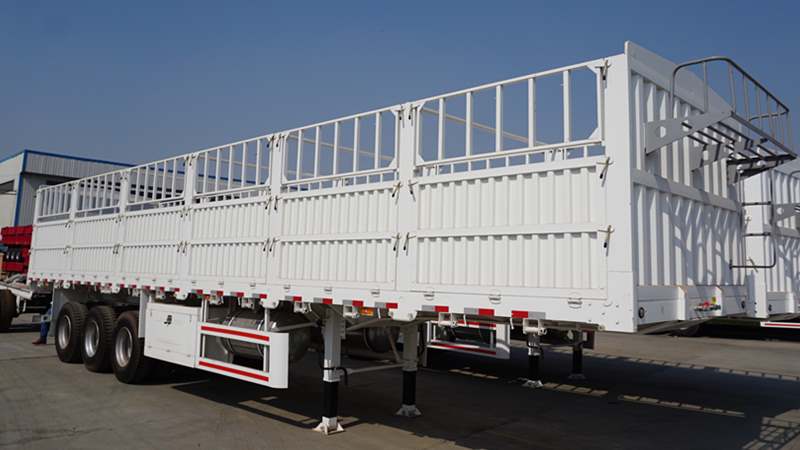

Tri Axle Stake Fence Semi Trailer-CIMC Manufacturer

Tri Axle Stake Fence Semi Trailer-CIMC Manufacturer

Description:

CIMC side board semi-trailer is the widely used trailer for transport different kinds of goods, such as fruit,vegetables, grocery goods,coal, coil steel,etc. CIMC coal transport trailers are China most famous brand, biggest trailer manuafacturer and oldest trailer manufacturer with more than 60 years production history. With high quality, beautiful appreance and high level service.

To ensure optimal structure for cargo handling and larger payload, the fence trailer chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.

Tri Axle Stake Fence Semi Trailer-CIMC Manufacturer

Specification of coal transport trailer:

Remark: This Specification just for your reference, we can produce fence semi trailer as your demands.

Dimension: 11900x2500 x1600mm

Side wall: 600mm, 800mm, 10000mm

Loading Capacity: 60 Ton

Tire: 12R22.5, 12units

Rim: 9.00-22.5, 12units

Axles: 3X13T BPW or FUWA brand

King Pin: 3.5 inch JOST Brand

Brake System: WABCO Valve and relays/ABS

Landing Gears: JOST Landing gear

Susension: Mechanical spring suspension

Electrical: 24 V

Light: LED light ( speically intended for Africa market)

Container lock: Optional

Advantage:

1.CIMC fence semi trailer strong loading capacity: By using high strength steel and structural innovation,it keeps same loading capacity while reducing tare weight.

2.Coal transport trailer integral vehicle has strong strength,small weight,rational structure and beautiful appearance. CIMC Fence Semi Trailer all parts use foreign and domestic famous brands,are purchased,inspected.

3.Reliable Dual Circuit Air Brake with quick release valve and quick repines of wheel cylinder ensures safe on-road and off-road operation.

4.Hot-Rolled Structural Steel welded 16Mn steel longitudinal beam and cross member are assembled and welded for chassis assembly. The side railed trailer finished chassis offers bending and deforming resistance with proper rigidity and strength.
