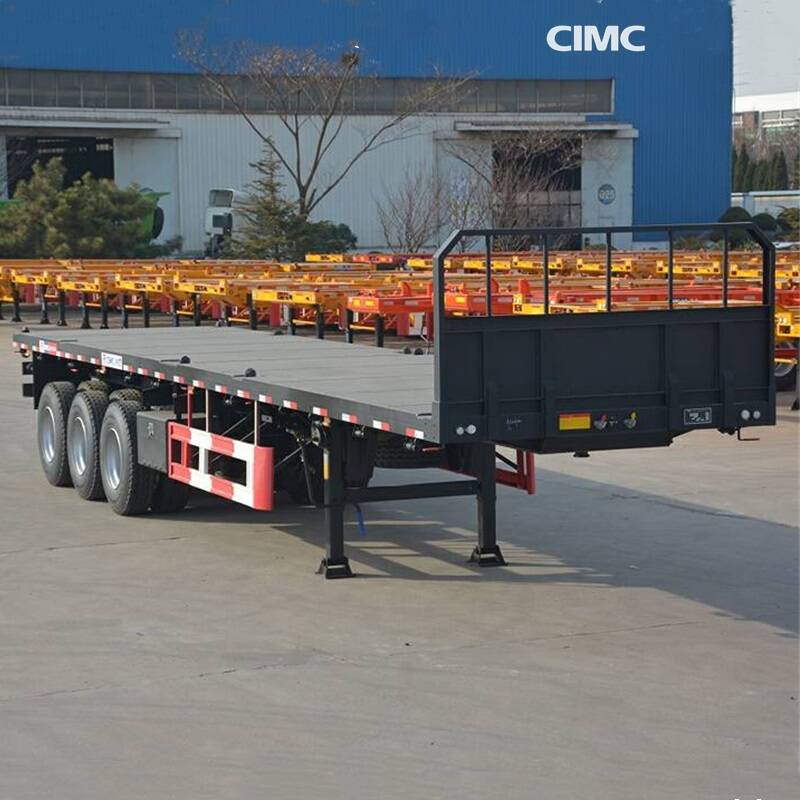

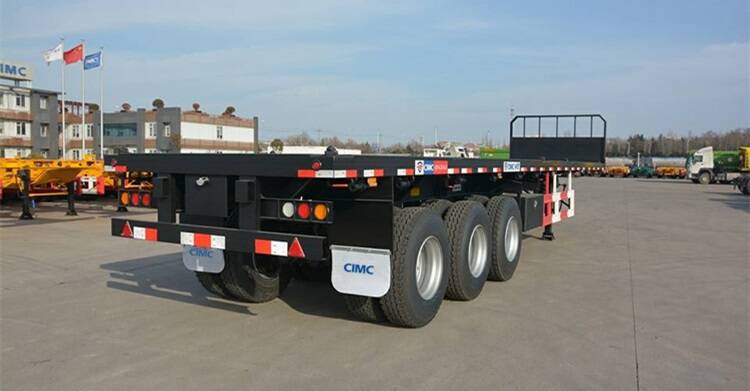

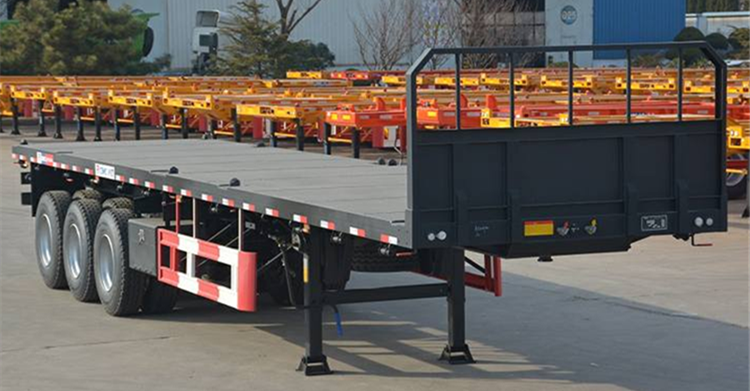

Tri Axle Flatbed Trailer With Front Wall

Product Description:

CIMC flatbed semi trailer is usually used to transport 20ft or 40ft containers, they are mainly used for container transportation supporting ships, ports, shipping lanes, highways, transit stations, bridges, tunnels, and multimodal transport.CIMC flatbed semi trailer is very popular in the african market. The front wall is useful to block the goods to drift when the trailer carries the prolong subjects. The trailer's loading capacity is 60 tons.

CIMC flatbed semi trailer can be customized according to customer needs.
Different options: 2 axles, 3 axles, 4 axles. 30T, 40T, 50T, 60T. Airbag suspension, spring steel suspension.

tri axle flatbed trailer for sale

flatbed tri axle trailer with front wall

Specification:

Dimension(mm): 12500*2500*1530
Loading capacity(ton): 60-80T
Transport: 20ft, 40ft container
Axles: 3 axles,13T/16T ,FUWA/ BPW/ CIMC/ Other Brand
Tire: 12.00R22.5 or 315/80R22.5
Suspension: Mechanical suspension or Air suspension
King Pin: JOST brand 2.0 or 3.5 inch
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed）
Main Beam:Height: 500mm, Upper plate:14mm, Middle plate:8mm,
Brake System: WABCO System
Valve: WABCO valve
Light: LED light
Electrical System: 24-volt lighting system
