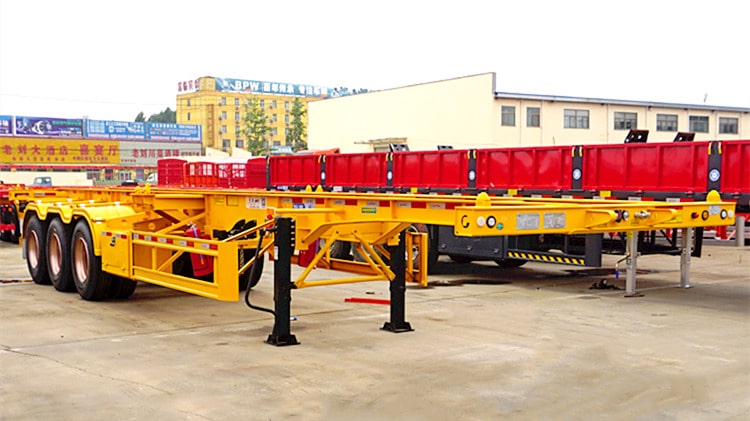

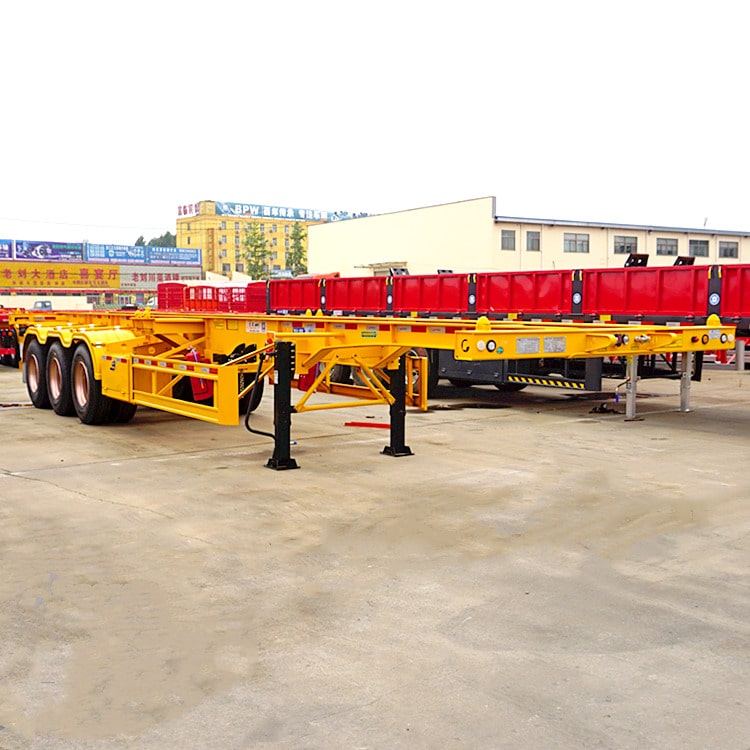

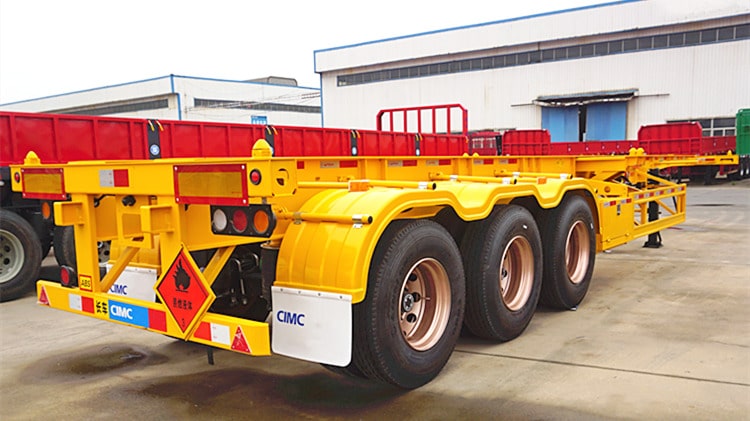

CIMC 40 Foot Skeleton Semi Trailer

CIMC 40 Foot Skeleton Semi Trailer Product Description:

The container skeleton semi trailer can transport containers and non-dangerous goods tank container structure semi-trailers. The subjective structure of this vehicle is straight beam type or front neck small gooseneck type. It is mainly used in the logistics system of ships and multimodal transportation to support ports, routes, highways, transfer stations, bridges and tunnels. The container transport semi-trailer has reasonable structure, high strength and beautiful appearance design. A container compaction device is installed on the frame, which can load two 40-foot and 20-foot standard containers.

Specification:

Overall L*W*H: 12400*2500*1550mm

Load weight:40 tons ~70 tons

Axles: 3x13 tons / 14 tons / 15 tons /16tons / 20 tons

Tire:12R22.5

Landing gear: JOST

Kingpin: 50(2inch)#or 90(3.5inch)# bolted type

Suspension: Airbag / Mechanical / bogie suspenion

Brake system: Wabco

Electric system: 24V / 12V + LED lights

Accessory: spare tire carrie + tool box

Remark: we can supply different specification for different road condition

Advantages

1>Light dead weight, strong frame structure ;

2>Container lock with secondary lock mechanism ;

3>High tensile steel and bolted type king pin plate ;

4>Double brake chambers makes a performance braking effects.
