30T Bulk Cement Tanker Trailer

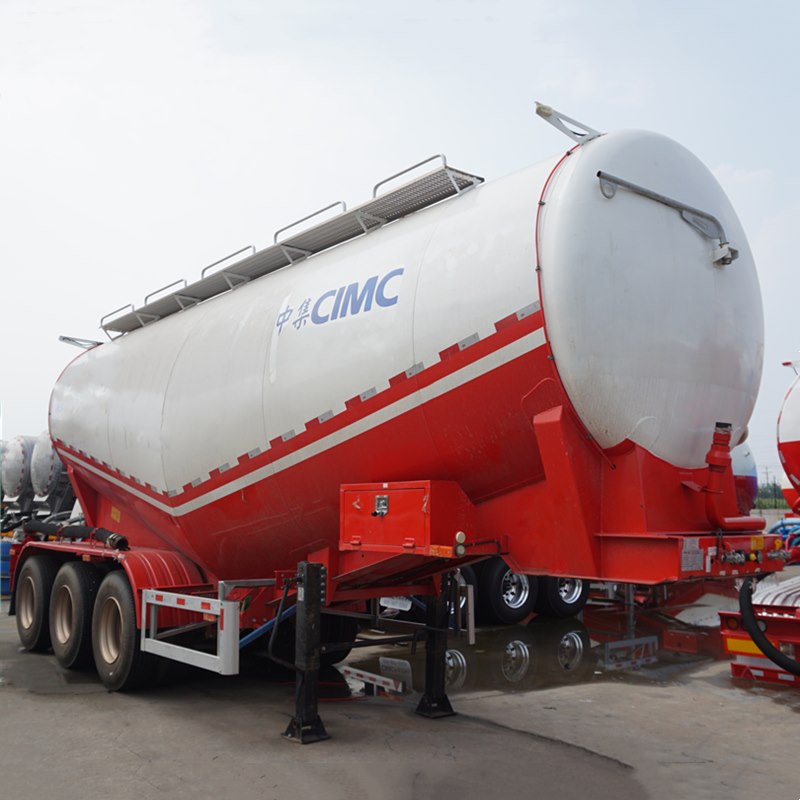

CIMC Bulk Cement Tanker Trailer

Product description:

The bulk cement tanker trailer is mainly used to transport 30 tons, 40 tons, 45 tons and 80 tons of cement. The main volumes of silo semi trailer are 25 cubic meters, 30 cubic meters, 35 cubic meters, 38 cubic meters, 40 cubic meters, 50 cubic meters, 60 cubic meters, and 80 cubic meters.

Powder tank trailers are V-types silobas and W-shaped dry bulk tanker, and the materials are carbon steel, stainless steel, and aluminum alloy.

Bulk Cement Trailer is also called cement bulker, silobas or silo trailer. It is mainly used for the bulk packing of powder dry materials such as fly ash, cement, lime powder, ore powder, granular alkali, aluminum powder, etc. transport. We often see bulk cement tank semi trailer for the transportation of powdered materials at cement plants, cement warehouses and large construction sites.

Specification of bulk cement tanker trailer:

Dimension: 9500*2500*4000 mm

Tank Body

Tank thickness: 4 mm

Front & end plate: 4 mm

Tank rated pressure: 0.2Mpa

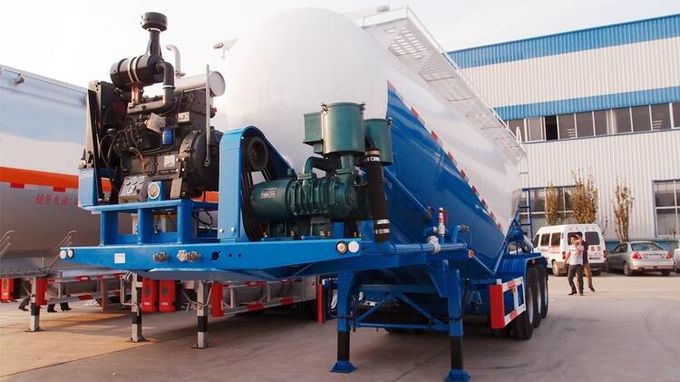

Discharging System

Diesel Engine: Model 4102 Diesel

Air Compressor: 12 m³ one unit double cylinders compressor

Discharging valve: 4 inch butterfly valve

Discharging pipe: 1pcs, 6m/each

Manholes: 2 pcs

Trailer Chassis

Main Beam: Welded design,

Axles: 3 axles

Landing gear: 28T

Kin pin: 3.5 inch high tensile bolt-in kingpin

Suspension: Mechanical suspension with 10 layers leaf spring

Tire: 12.00R22.5,

Braking system: WABCO emergency valve;

Electrical system: Voltage: 24V

Tool box & tire carrier: One tool box , 2 pieces tire carrier

Light & reflector: Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light

Feature:

1.After the production, all the bulk cement tank trailer will go through the pressure test and metal inspection testing, to ensure a good sealing property of our cement tank trailer.

2. CIMC bulker trailer uses world-famous brand diesel-engine Weichai 4102 to help the air compressor work better.

3.The best quality 12 cubic air compressor in China can be selected from the fidelity or Bohai brand If you choose other brands of air compressor can be a little cheaper price.

4.CIMC cement bulker trailer adopts the latest advanced automatic splice plate machine to weld the steel plate with double-side, that ensure the high quality of welding seams, long service life.
